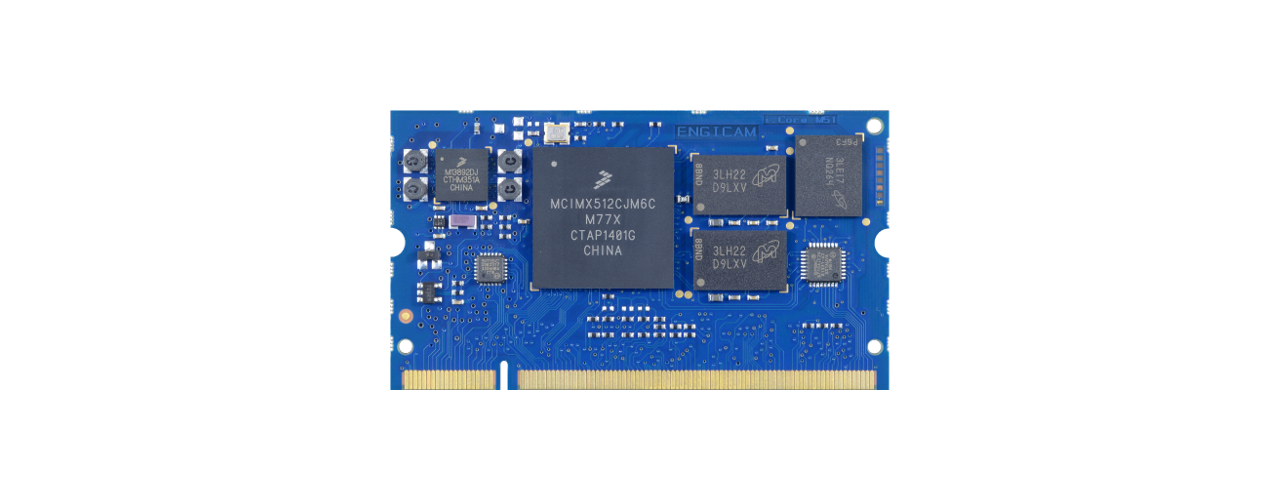

i.MX51 based EDIMM SOM


i.Core MX51 , based on NXP™i.MX51 processor, offers performance, power consumption, connectivity and multimedia capabilities

Based on NXP™i.MX51 processor. NXP's consumer and industrial i.MX51 applications processors balance the performance, power consumption, connectivity and multimedia capabilities necessary to drive today's latest and greatest products. Benefits include high perf- ormance processing and multimedia capabilities, hardware acceleration that enables very low power consumption for video and graphics, and a high level of integration to reduce overall system bill of materials. These processors are also available in extended temperatures for industrial- focused devices running up to 600MHz.
  • DP FPU
  • DSP instruction set
  • SP FPU
  • HW 2D OpenVG engine
  • 6-ch PWM and Quadrature decoder input
  • Touch screen

  • CPU: NXP™ i.MX512/5 application processor
  • CORE NUM: Cortex™-A8
  • FREQ: 800MHz
  • DRAM WIDTH: 32 bit
  • RAM TYPE: DDR2-400
  • RAM SIZE: 256/512MB
  • FLASH TYPE: NAND SLC
  • FLASH SIZE: 256MB
  • MAX LCD RES: WXGA
  • Simultaneous LCDs: 2
  • Parallel LCD: 2x 24 bit
  • LVDS: No
  • HDMI: No
  • CSI input: 1x 12 bit
  • HW ACC: No/2D
  • VIDEO CODEC: No/Yes
  • SATA: No
  • External bus I/F: Yes
  • SDIO: 2x4bit
  • CAN: No
  • UART: Up to 3
  • I2C: Up to 3
  • I2S: Up to 1
  • SPI: Up to 1
  • USB: 1x USB HOST, 1x USB OTG
  • PCI express: No
  • ADC: No
  • Video ADC: No
  • Ethernet: 1x 10/100
  • Temperature: Commercial/Industrial range
  • OS: LINUX
  • Status: Production

Memory

  • 0B up to 0B

Operating Temperature

  • 0° up to 0°

Product availability

  • 0

Fact Sheet

Hardware manual

Software manual

PCN

  • No Starter Kit available for this module at the moment. For further information, please contact us
