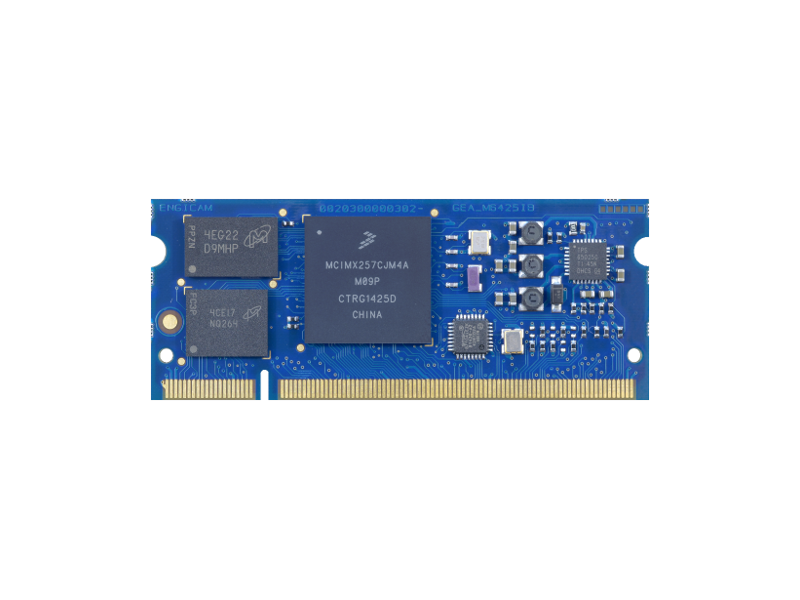

GEA M6425IB


GEA M6425IB, based on NXP™ i.MX257, offers multiple connectivity options and low power consumption

CPU NXP™ i.MX257
RAM DDR2@266
DIMENSIONS 67.6 x 26.9 mm
OPERATING TEMPERATURE -40° up to 85°

Specifications

CPU

  • Manufacturer NXP
  • Processor Family i.MX257
  • Architecture ARM
  • Cores 1
  • Frequency Up to 400 MHz

MEMORY

  • RAM Type DDR2
  • RAM Frequency 266 MT/s

VIDEO

  • Parallel RGB

USB

  • USB2 1
  • USB OTG 1

PCIe

  • PCIe NO

NETWORKING

  • LAN PHY 1x 10/100 Megabit Ethernet

PERIPHERAL INTERFACES

  • UART 3 (U to 5)
  • I2C Up to 3
  • SPI Up to 4
  • CAN 2 (Up to 3)
  • SDIO 1
  • GPIOs
  • Audio Up to 3
  • Other JTAG, up to 4 PWM, up to 4 GPT

OPERATING SYSTEM

  • Linux Yocto

GENERAL

  • Form Factor EDIMM
  • Power Supply single 5V
  • Operational Temperature -40°C to +85°C
  • Availability 2024
