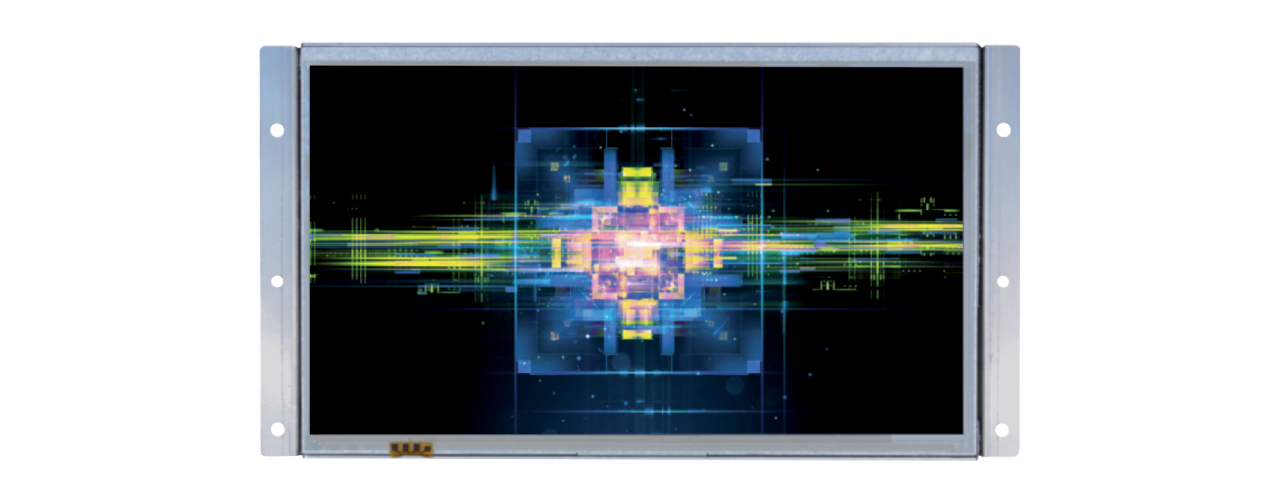

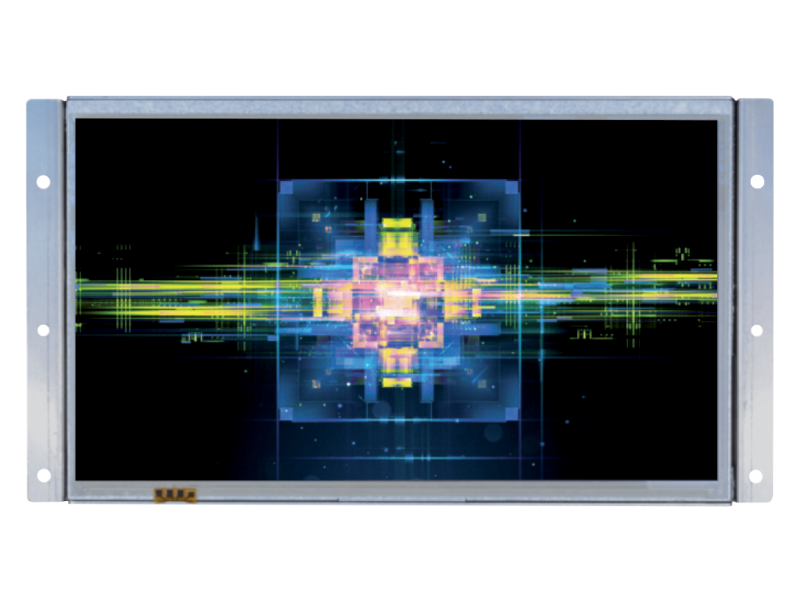

Low cost resistive touch 10.1" open frame

Based on standard EDIMM modules, this open frame terminal is driven by i.Core M6S module and it is suitable for all the applications where the lowest cost and high performance are required. The resistive touch panel and the Engicam Linux SDK allow a really ready-to-use way to develop user-friendly graphic user interface. The frameless touch panel system is very easy to be integrated into the final housing.

Operating Systems

Linux

  • TFT 10.1" consumer, 1024x600 resolution
  • LED backlight, brightness 240 Cd/m2, consumer
  • Resistive touch
  • Power supply 12 or 24V
  • 1 x uSD, 1 x USB, RTC (option)
  • 1 x RS232 serial
  • 1 x RS485 and 1 x Ethernet 10/100T (full version only)
  • 1 x RS232, 1 x RS485, 1 x CAN I/F
  • 1 x Ethernet 10/100T
  • 28 pin expansion connector
  • WiFi on board (option)
  • i.Core M6S SOM based
