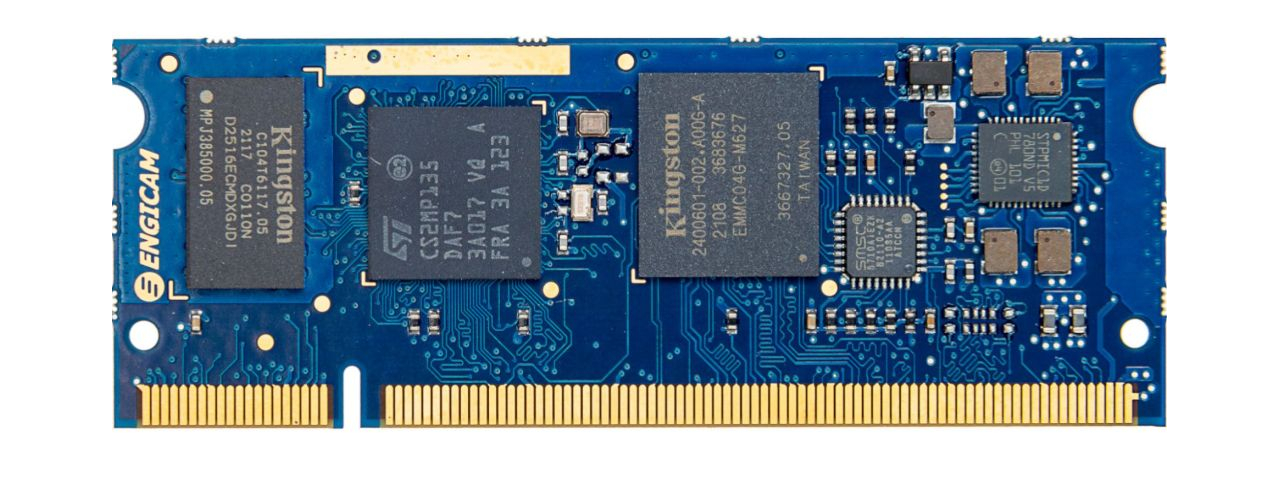

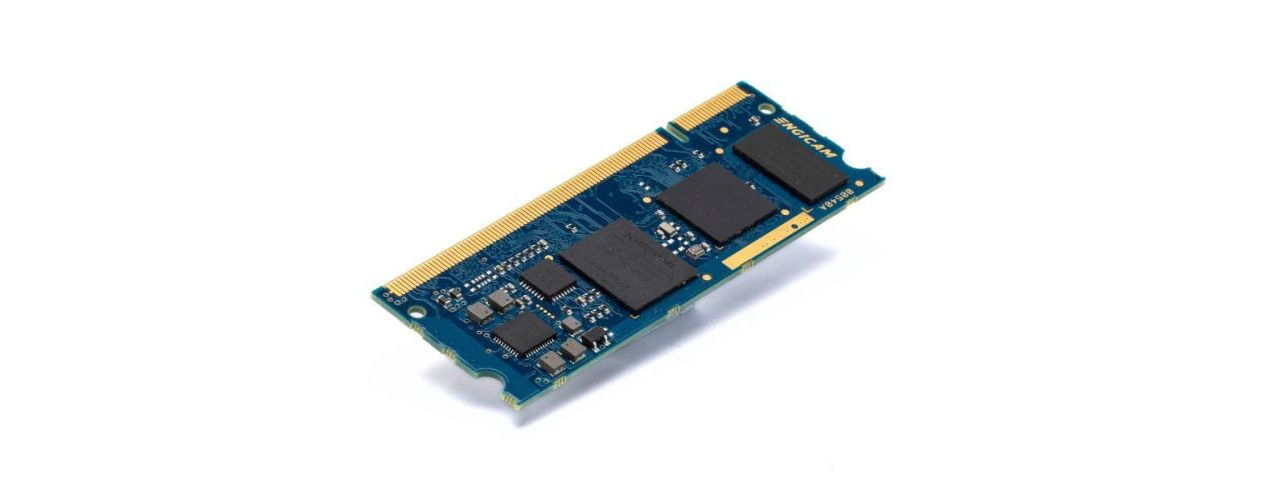

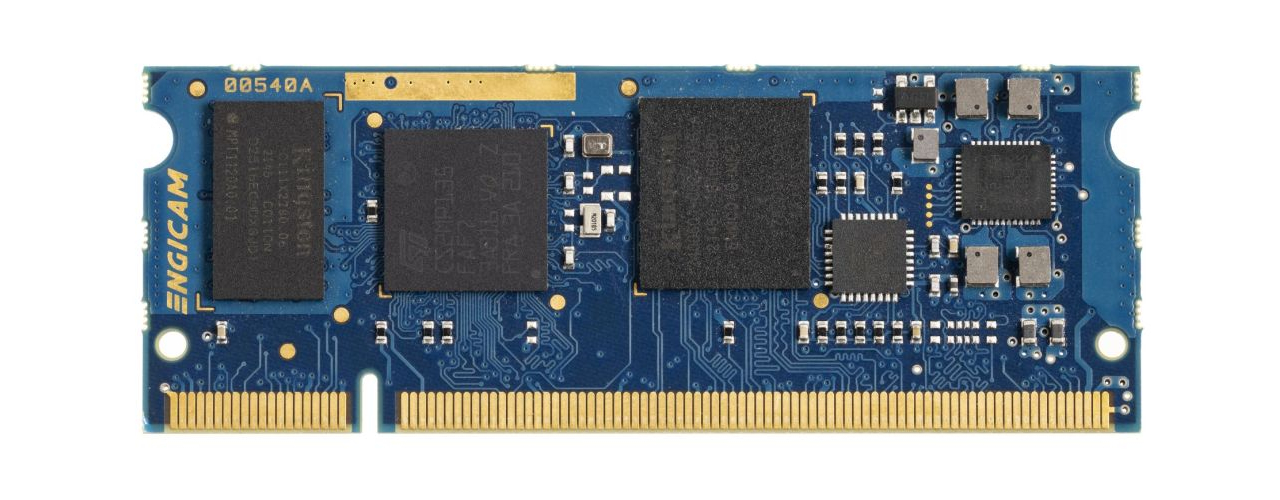

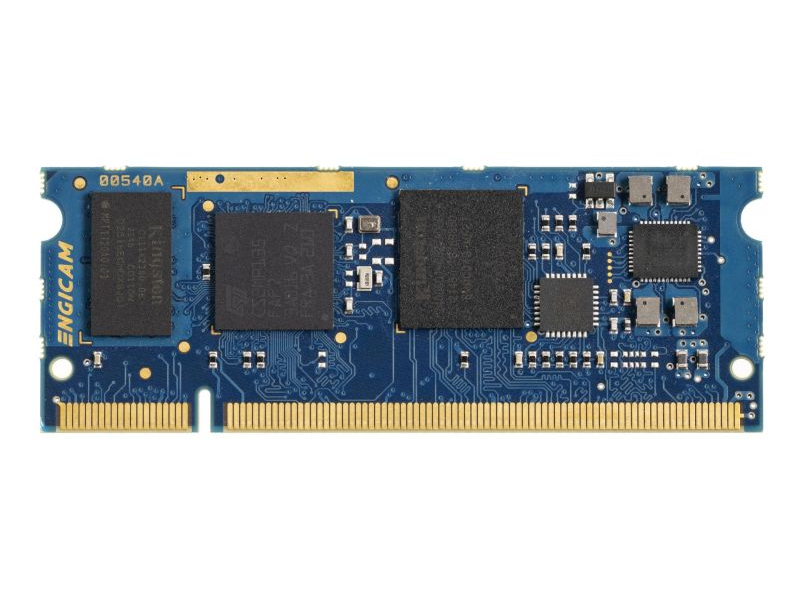

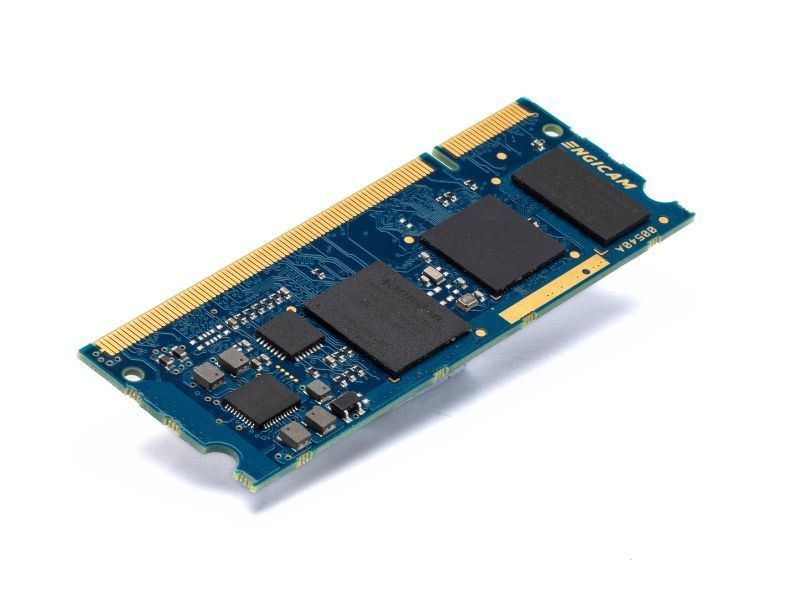

GEA STM32MP13

Engicam introduces the new GEA STM32MP13 based on the latest ST processor equipped with Arm® Cortex®-A7 up to 1 GHz. The module offers very energy-efficient performance and is designed to provide rich performance in high-end wearables, and other low-power embedded and consumer applications.

CPU ST® STM32MP13x
RAM DDR3L@1066MTs
DIMENSIONS 67.6 x 25 mm
OPERATING TEMPERATURE -40° up to 85°

Specifications

CPU

  • Manufacturer ST
  • Processor Family STM32MP13x
  • Architecture ARM
  • Cores 1
  • Cores description Arm® Cortex®-A7
  • Frequency Up to 1 GHz

MEMORY

  • RAM Type DDR3L
  • RAM Frequency 1066 MT/s
  • RAM Size Up to 1 GB
  • STORAGE on board 4 GB eMMC

GRAPHICS

  • Other LCD-TFT controller, up to 24-bit // RGB888-up to WXGA (1366 × 768) @60 fps or up to Full HD (1920 x 1080) @ 30 fps

VIDEO

  • Parallel RGB

VIDEO PROCESSING

  • Decoder Support Up to WXGA (1366 × 768)
  • Encoder Support Up to WXGA (1366 × 768)

USB

  • USB2 1
  • USB3 1

PCIe

  • PCIe NO

NETWORKING

  • LAN PHY 2x 10/100 Megabit Ethernet

PERIPHERAL INTERFACES

  • UART 3 (Up to 7)
  • I2C 2 (Up to 5)
  • SPI 2 (Up to 5)
  • CAN 2 CAN
  • SDIO 2
  • GPIOs
  • Audio SAI interface

OPERATING SYSTEM

  • Linux Yocto

GENERAL

  • Form Factor EDIMM 2.0
  • Dimensions 67.6 x 25 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to +85°C
  • Availability 2036
