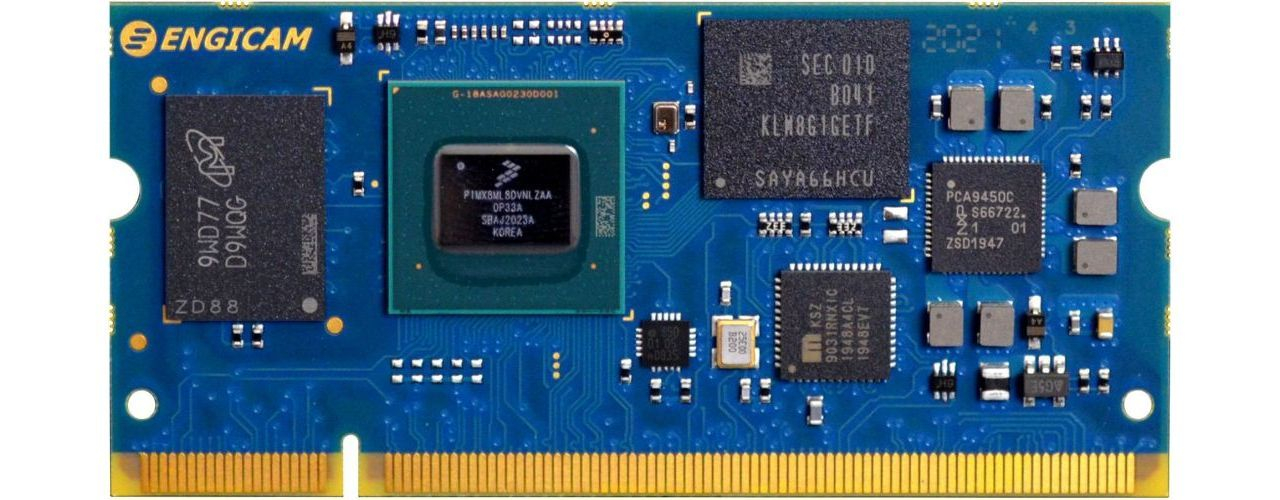

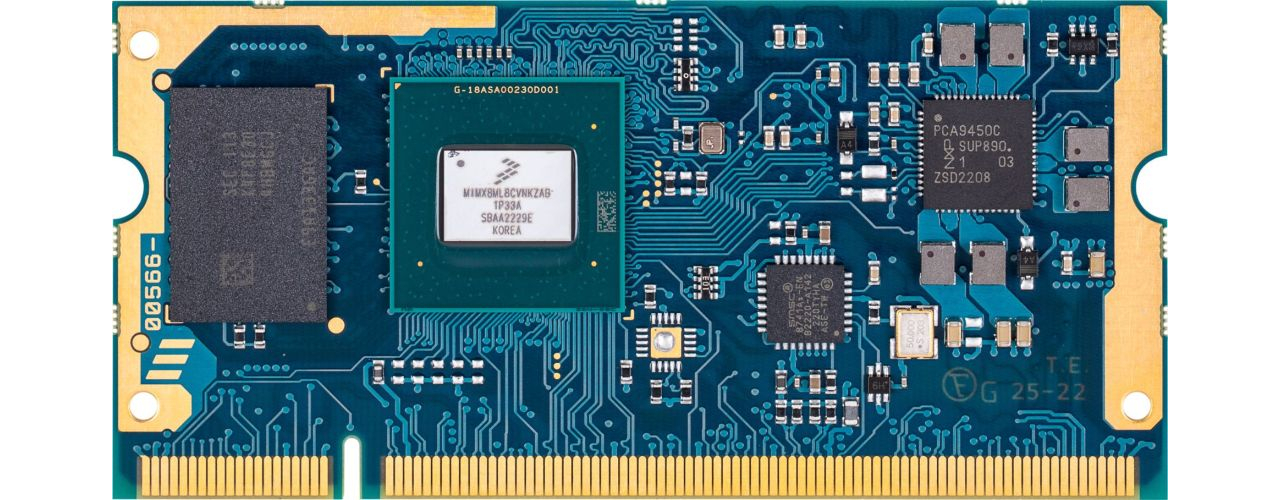

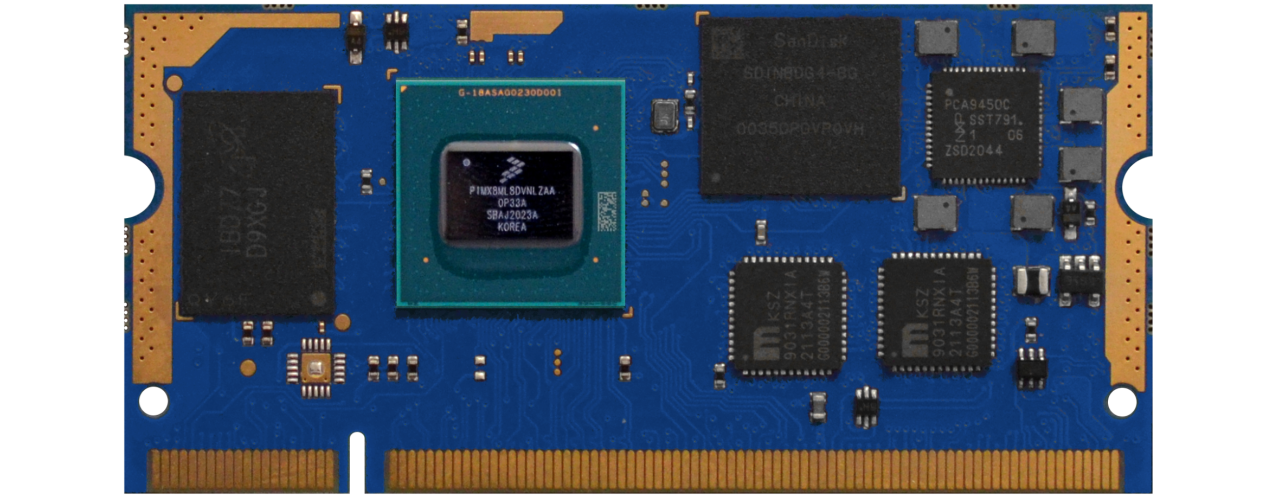

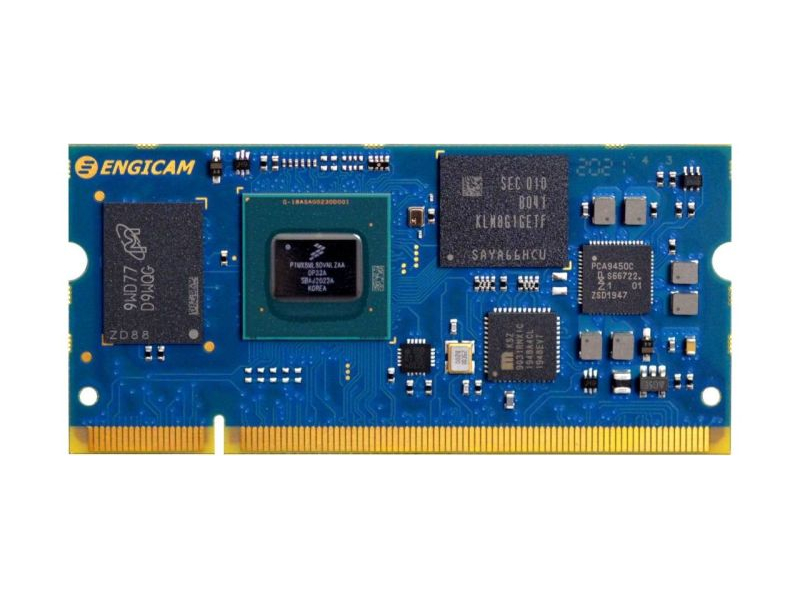

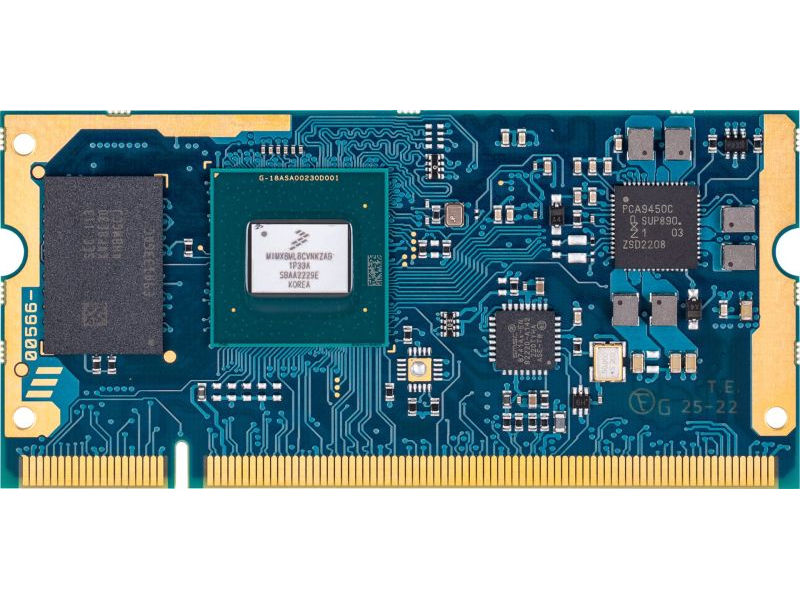

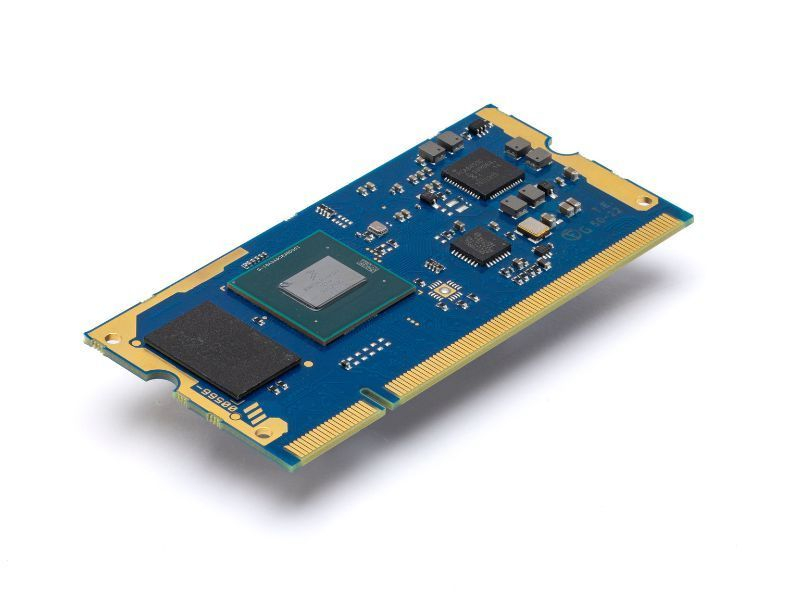

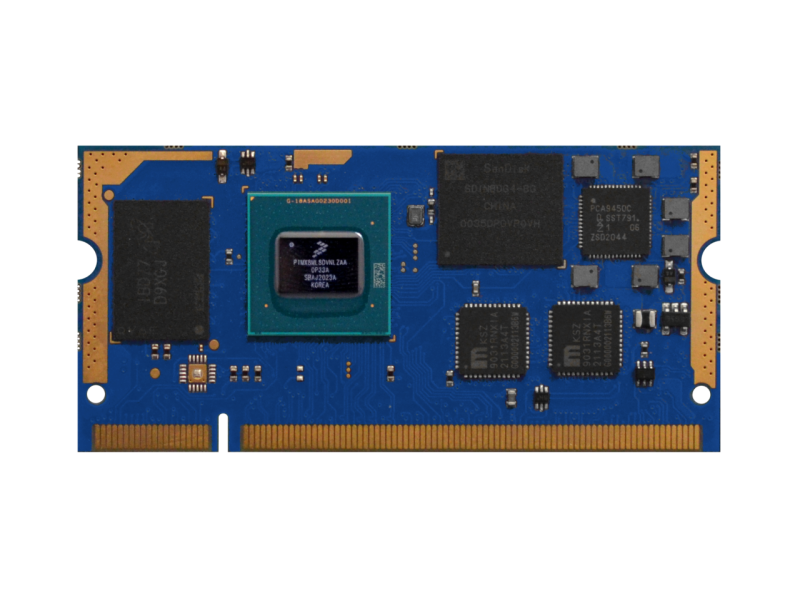

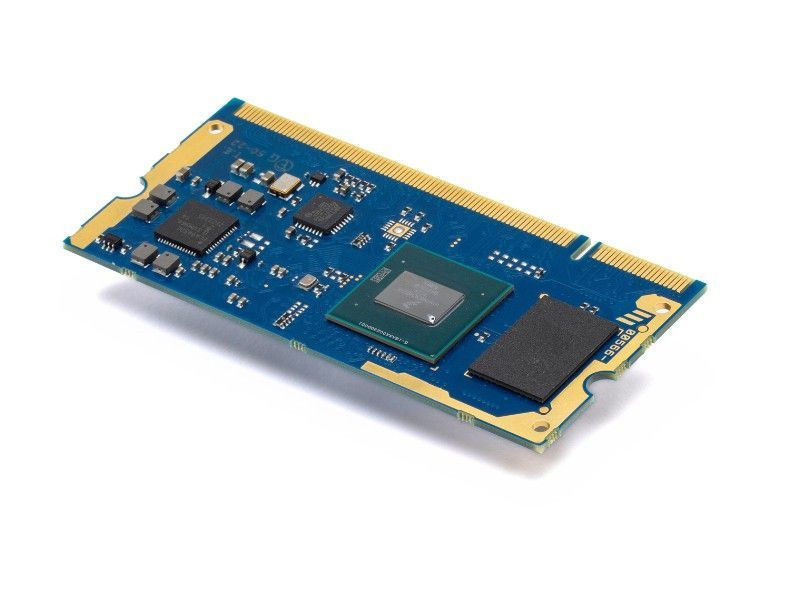

i.Core MX8M Plus Family

Specifications

CPU

  • Manufacturer NXP
  • Processor Family i.MX 8M Plus
  • Architecture ARM
  • Cores 4
  • Cores description Quad Arm® Cortex®-A53
  • Frequency Up to 1.8GHz
  • Integrated MCU Cortex-M7

MEMORY

  • RAM Type LPDDR4
  • RAM Frequency 3600 MT/s
  • RAM Size Up to 4 GB
  • STORAGE on board Starting from 8GB eMMC drive

GRAPHICS

  • GPU GC7000UL (2 shaders)
  • Features OpenGL ES 2.0/3.0/3.1, Vulkan, OpenCL 1.2
  • Other 2D GPU GC520L

VIDEO

  • HDMI
  • LVDS Channels Dual
  • MIPI-DSI 1x 4-lane
  • MIPI-CSI 4-lane

USB

  • USB3 2

PERIPHERAL INTERFACES

  • UART 3 (Up to 4)
  • I2C 2 (Up to 5)
  • SPI 2 (Up to 3)
  • CAN 2
  • SDIO 2
  • GPIOs
  • Audio 2x I2S
  • Other JTAG

OPERATING SYSTEM

  • Linux Yocto

GENERAL

  • Form Factor EDIMM 2.0
  • Dimensions 67.6 x 32 mm
  • Power Supply single 5V
  • Availability 2036

Documentation & Software

Access technical documents, software, and support resources.

Products to complete your design

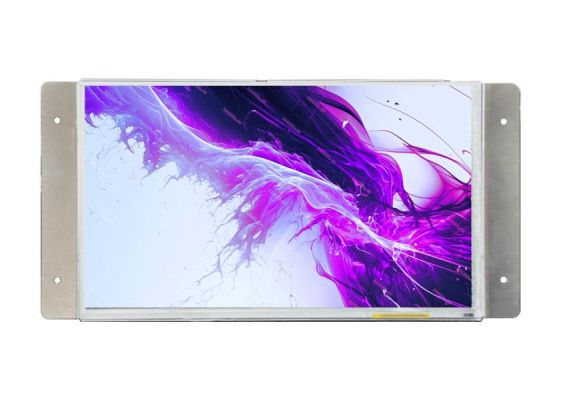

C.Touch 10.1" GEN 3

Capacitive touch 10.1" open frame standard EDIMM 2.0 with powerful communication peripherals.

View product

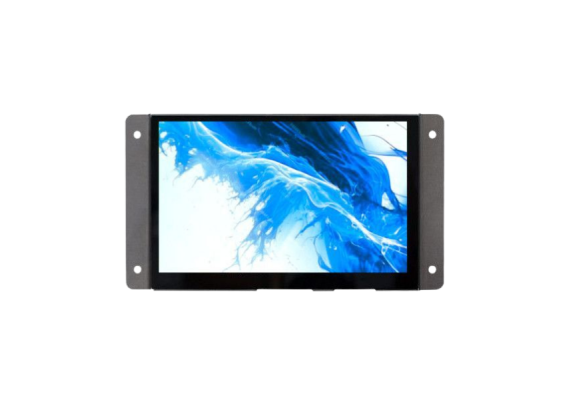

C.Touch 7" GEN 3

Capacitive touch 7" open frame standard EDIMM 2.0 with powerful communication peripherals.

View product

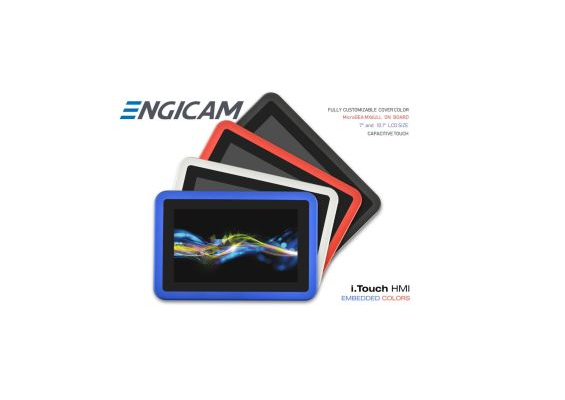

i.Touch EDIMM 7"
