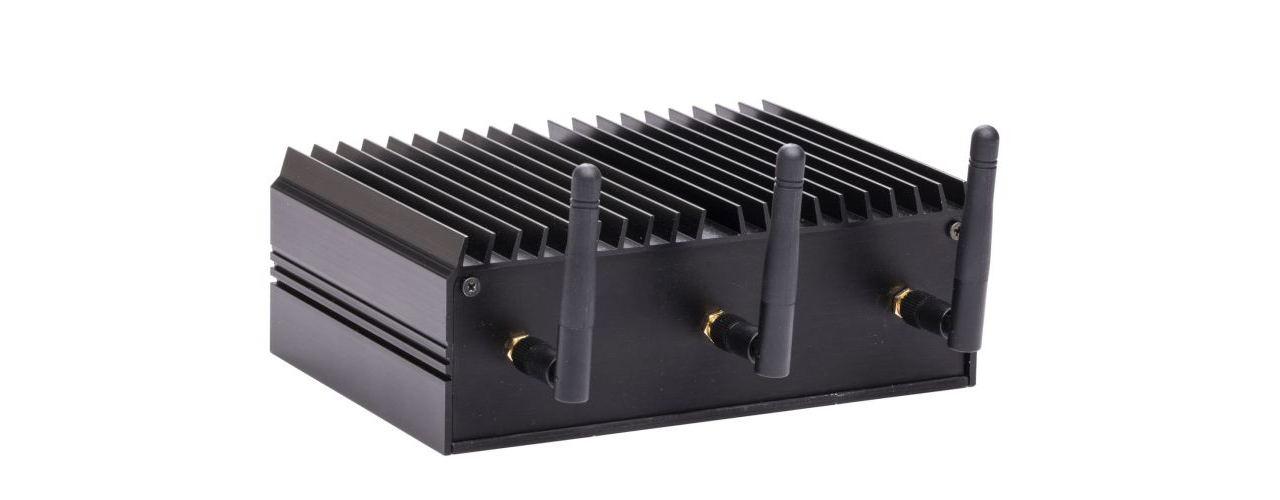

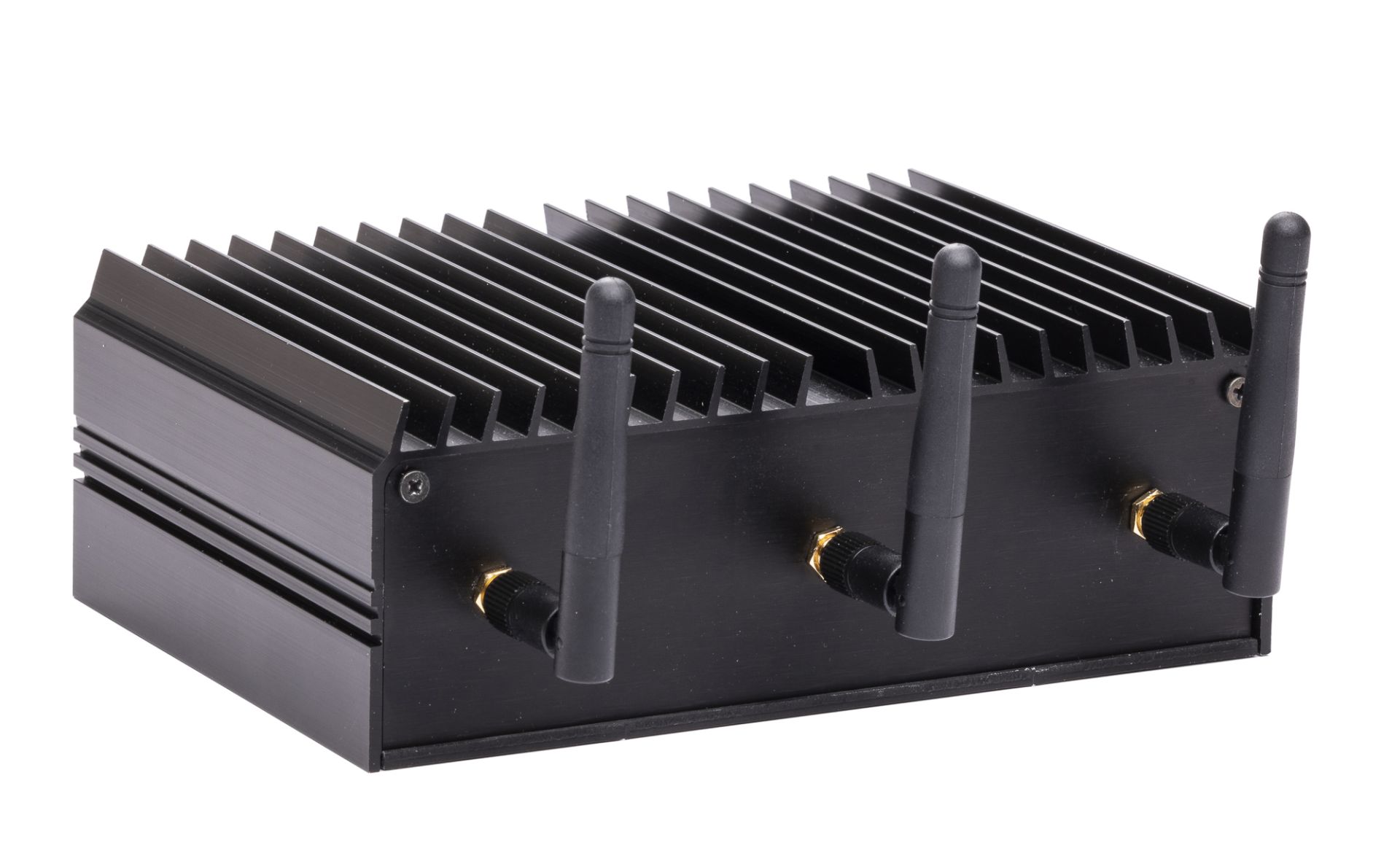

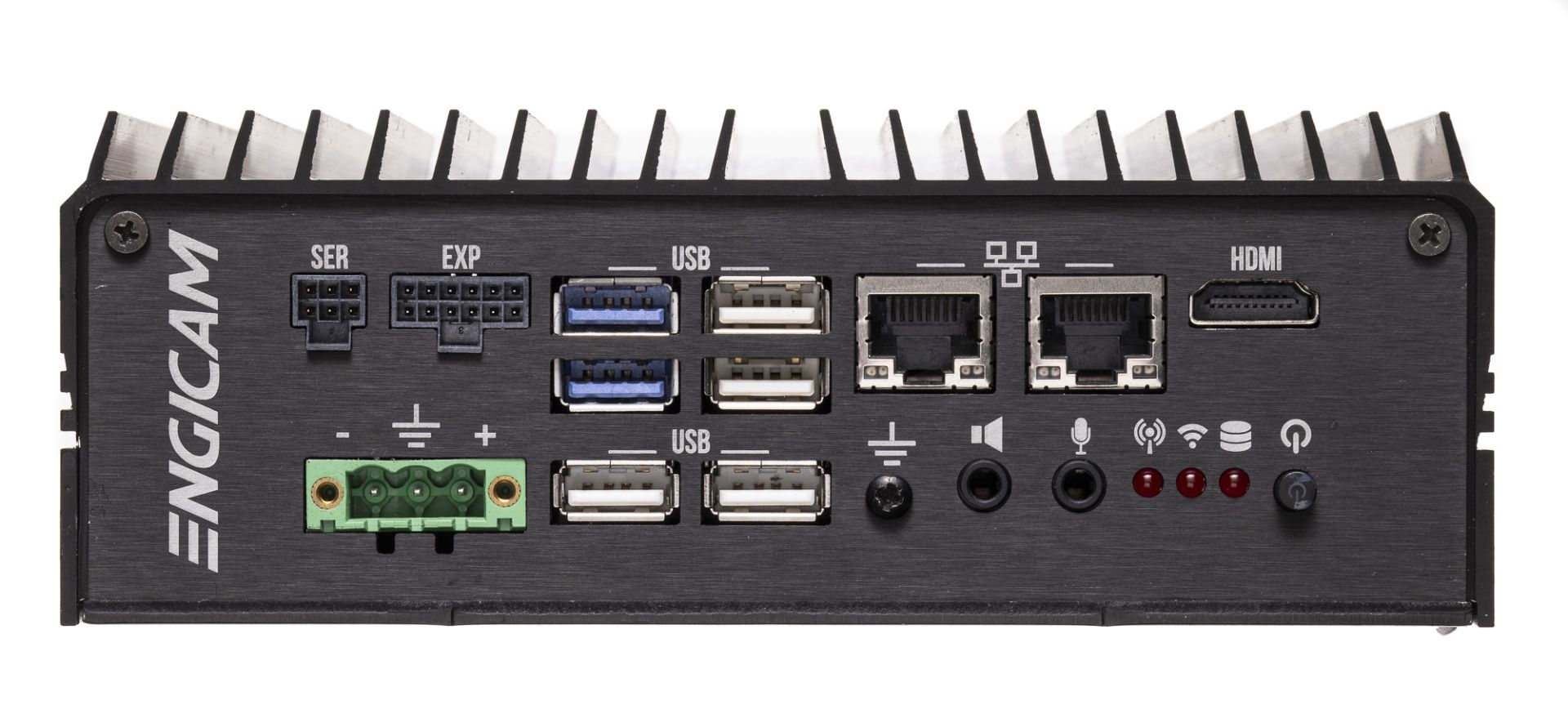

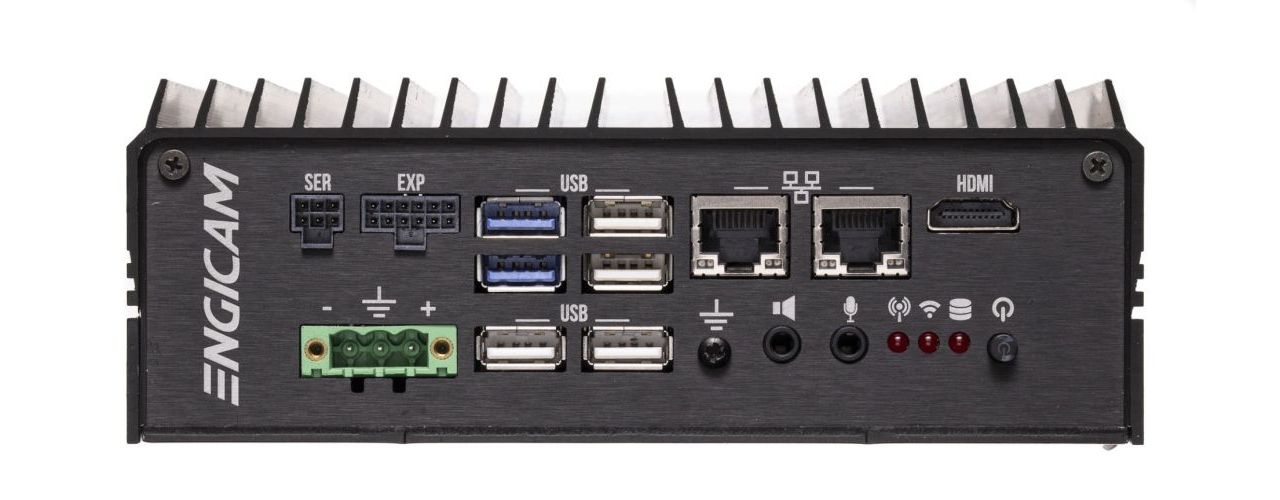

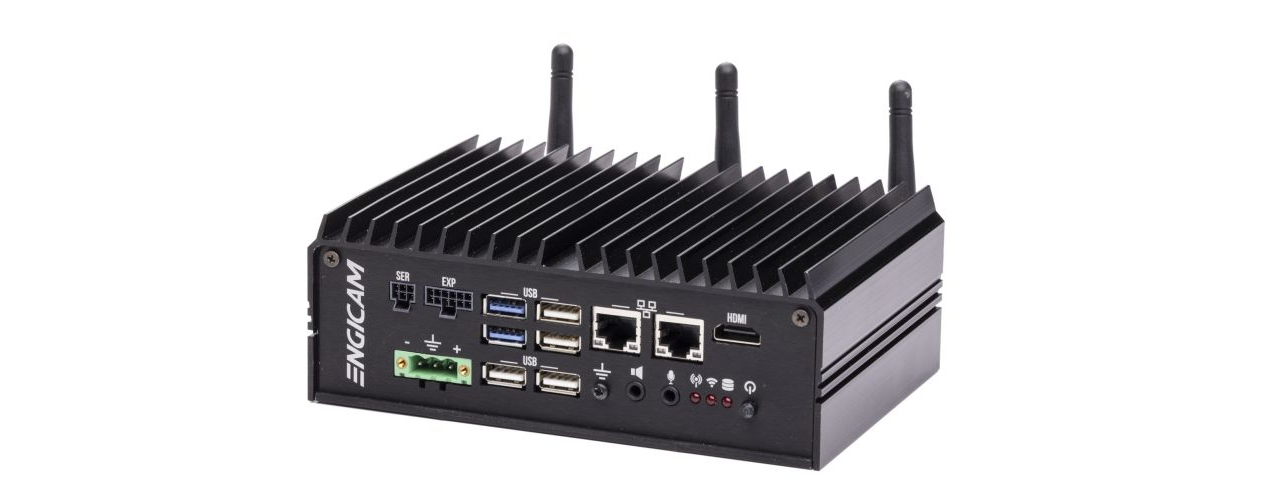

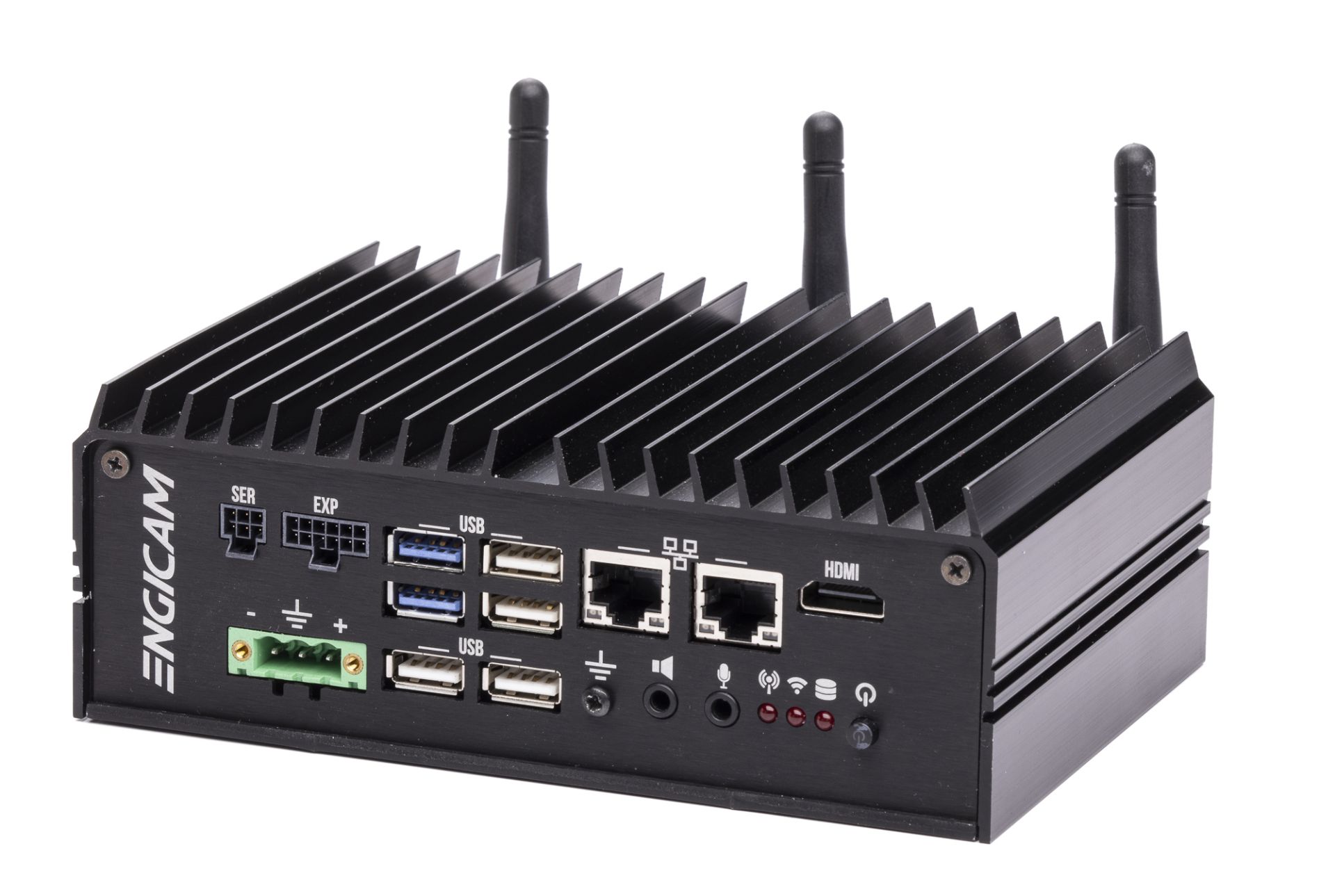

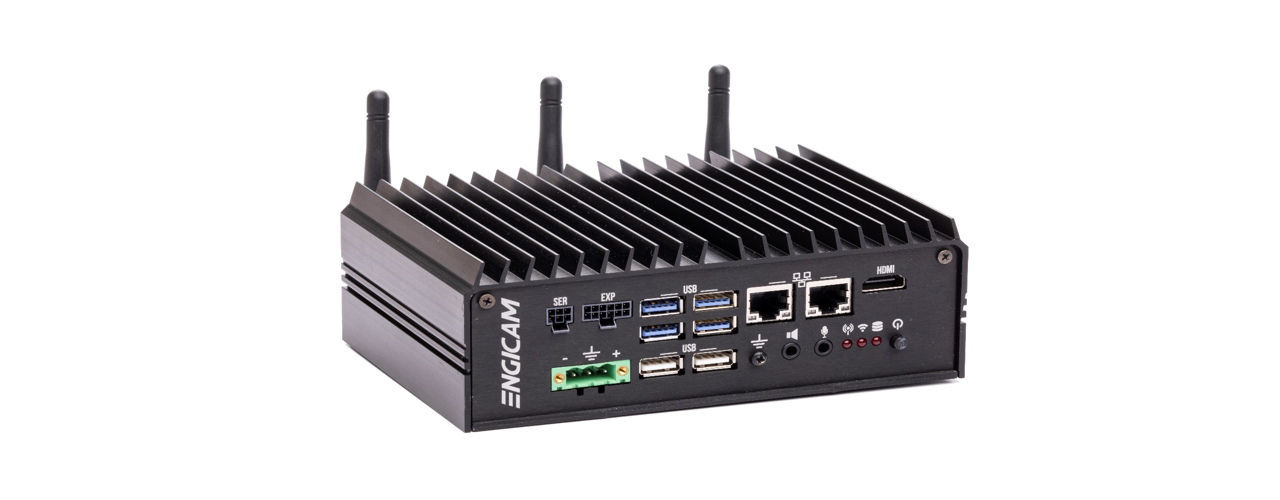

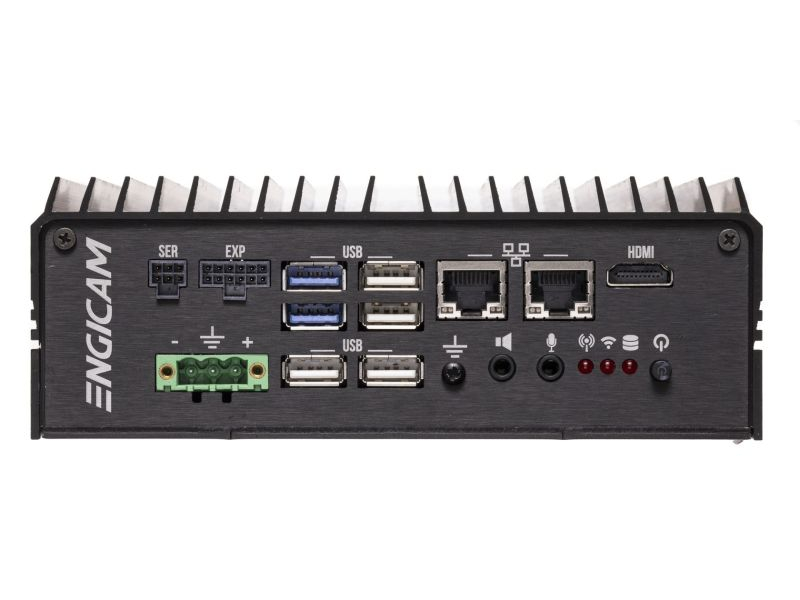

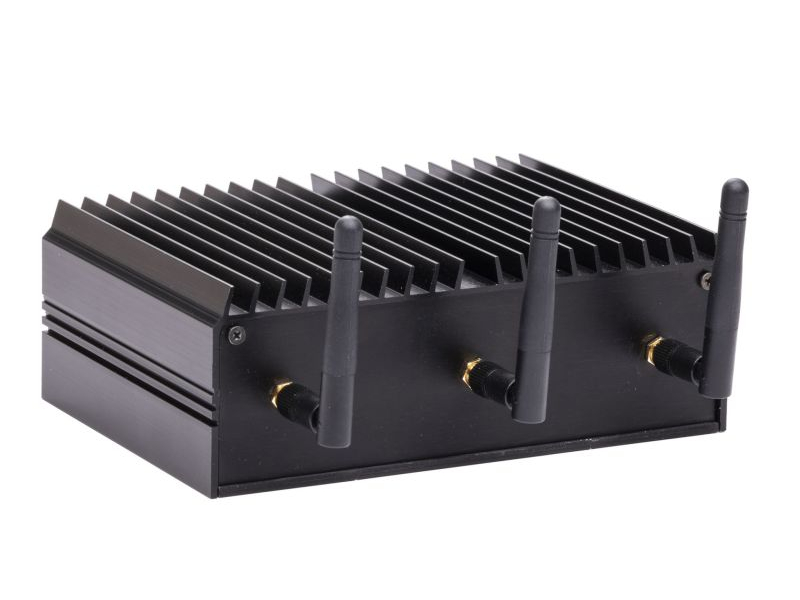

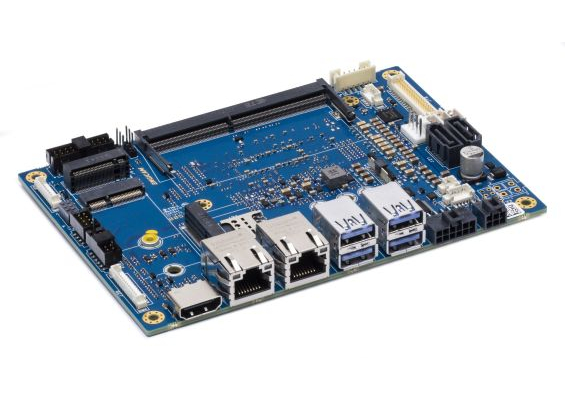

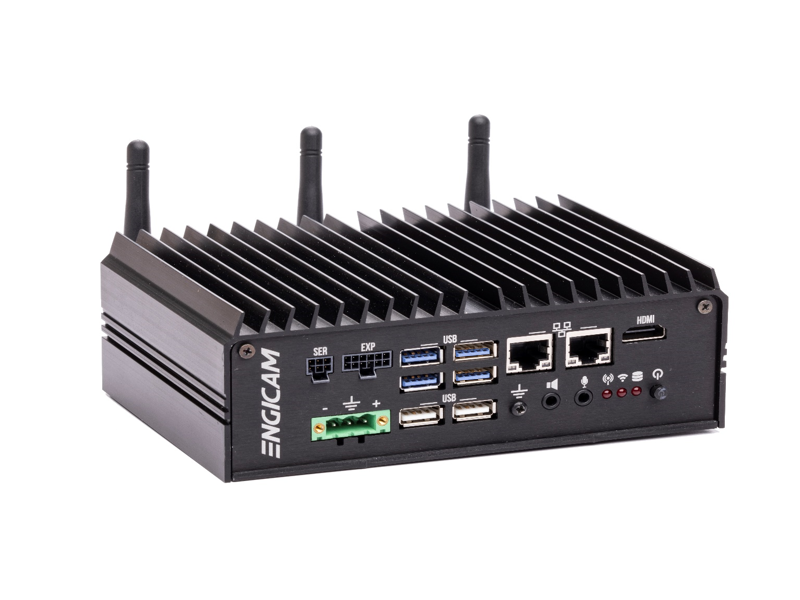

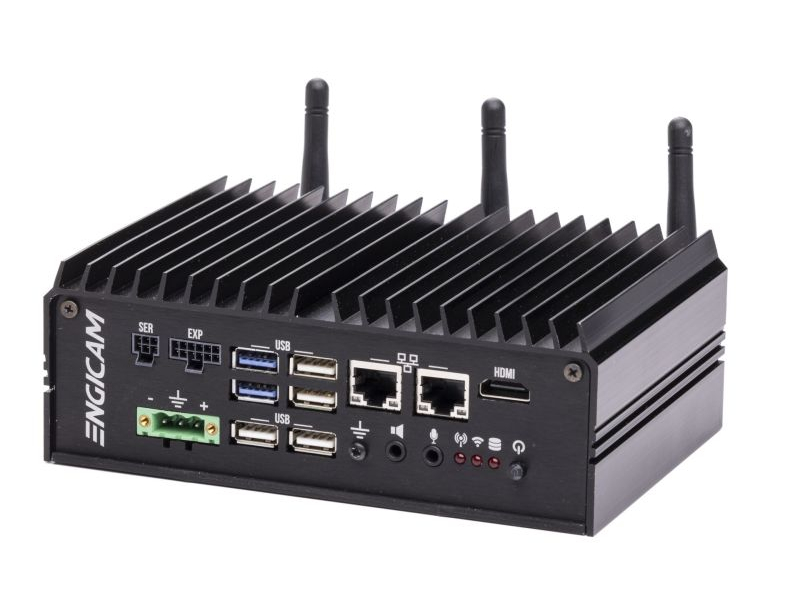

High Performance 3.5’’ Boxed PC based on Intel® Tiger LakeTM series
Operating Systems
CPU: •Intel Core i7-1185G7E Processor Quad Core up to 2.8 GHz, up to 28W
•Intel Core i5-1145G7E Processor Quad Core up to 2.6 GHz, up to 28W
•Intel Core i3-1115G4E Processor Dual Core up to 3.0 GHz, up to 28W
•Intel Celeron® Processor 6305E Dual Core up to 1.8 GHz, up to 15W
•Intel Core i7-1185GRE Processor Quad Core up to 2.8 GHz, up to 28W
•Intel Core i5-1145GRE Processor Quad Core up to 2.6 GHz, up to 28W
•Intel Core i3-1115GRE Processor Dual Core up to 3.0 GHz, up to 28W
Memory 1x SODIMM up to 32 GB DDR4
Cores : up to 4
Graphics: - Integrated Iris Xe Graphics Core Gen12 architecture, with up to 96 Execution Units
- MPEG2, WMV9, AVC/H.264, JPEG/MJPEG
Video Interfaces: HDMI up to 4K @60Hz
Video Processing: - HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60
- AVC/H.264, HEVC/H.265, JPEG, VP9 HW encoding
Audio: Build in HD
Networking: 2 x Gb Ethernet interface, WLAN/BT M.2 key E, WWAN M.2 Key B with SIM slot
USB: 4 x USB Host 3.2, 1 x internal USB Host 2.0
Mass storage: 2x SATA slot, 2x SSD M.2 Key M slot, SSD M.2 Key B slot
Mini slot: 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B
Dimensions: 146 x 102 mm
