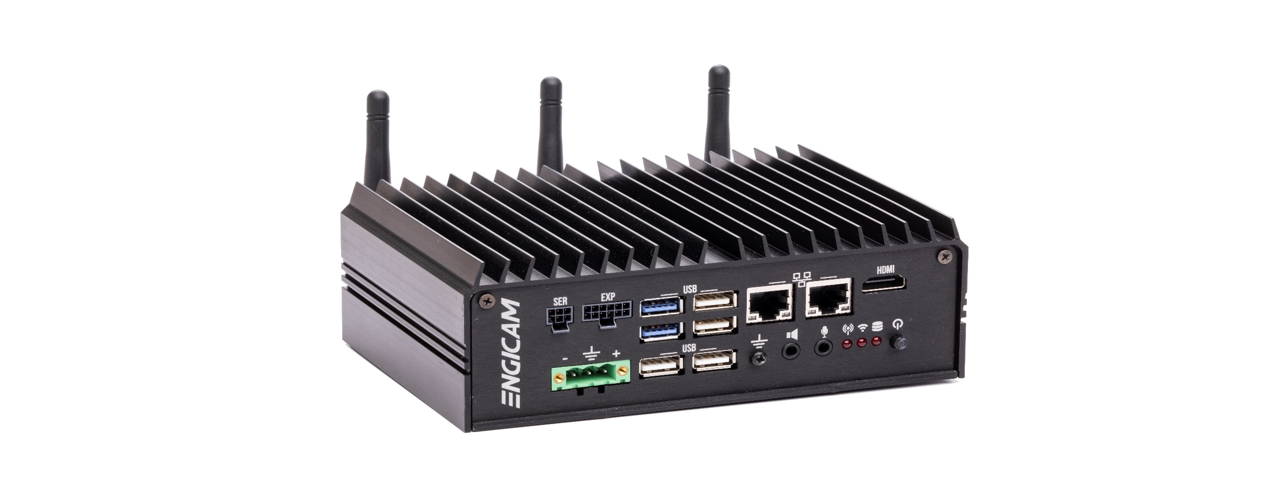

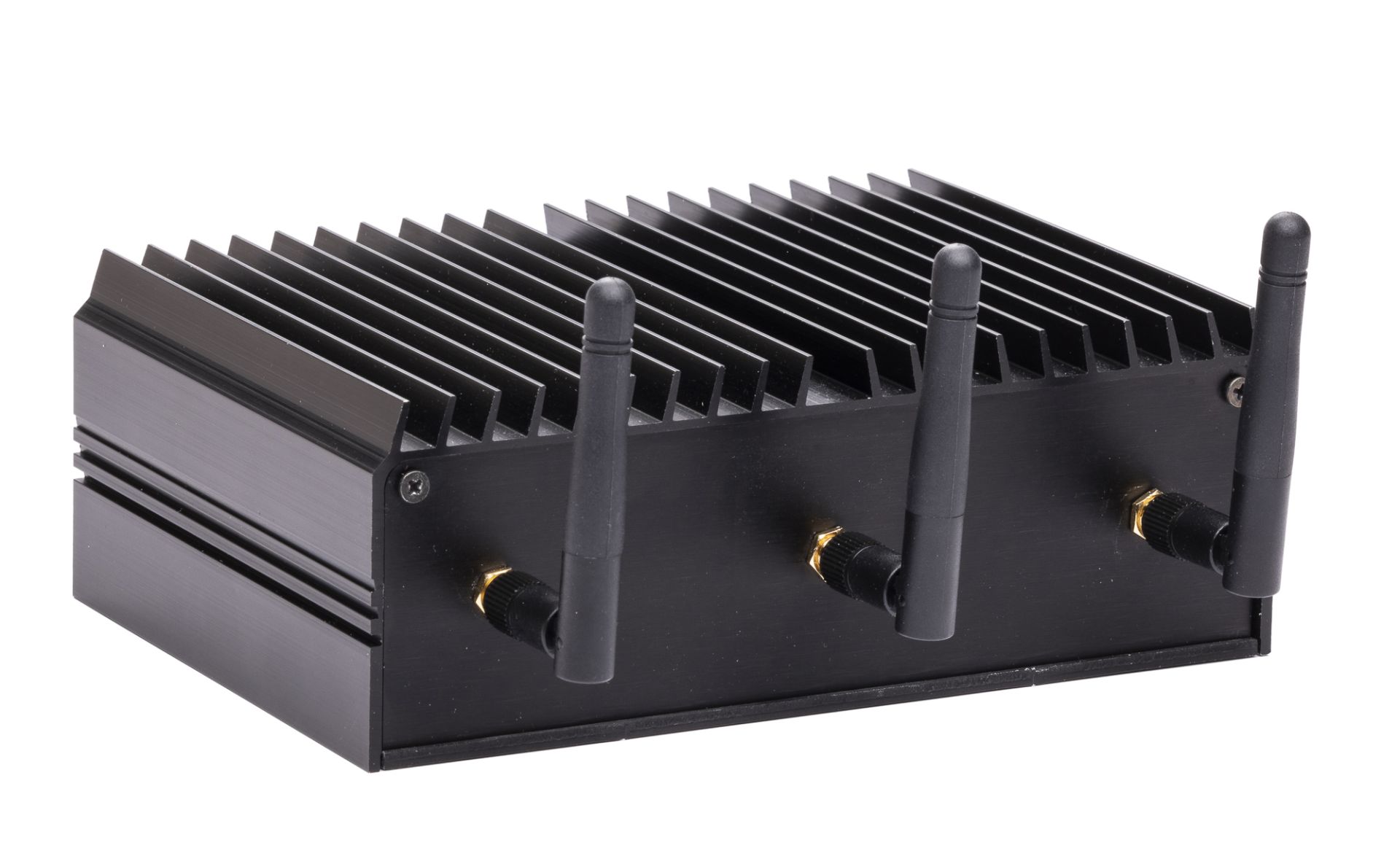

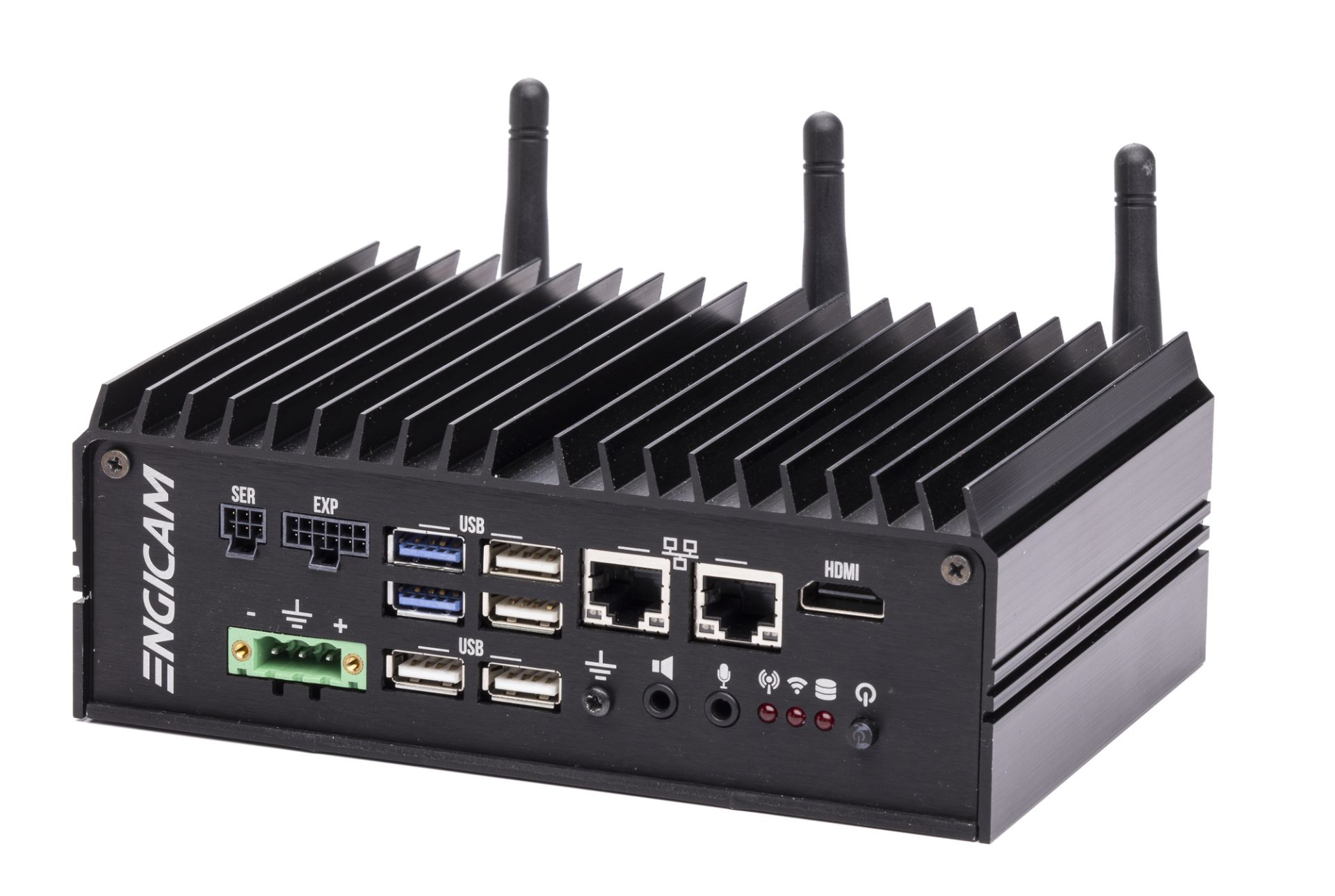

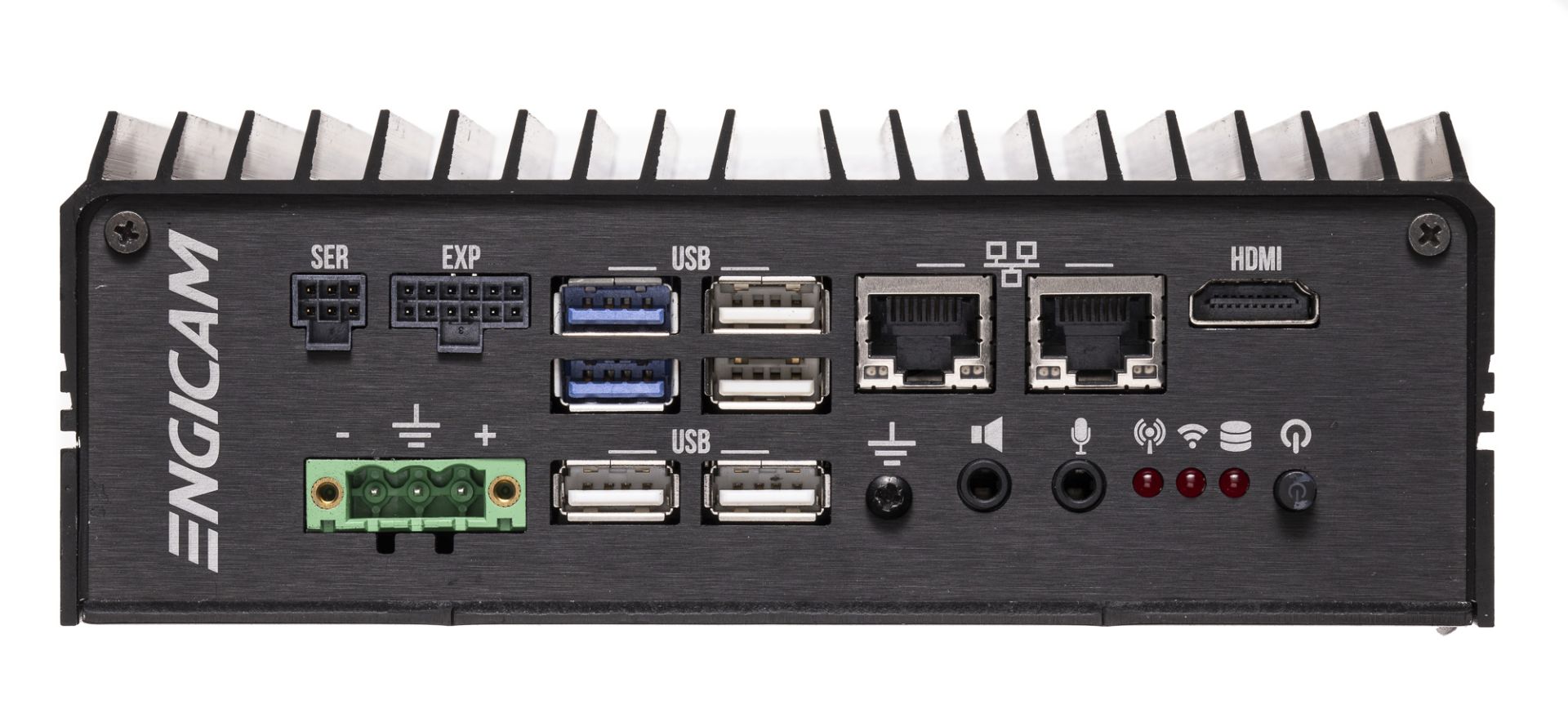

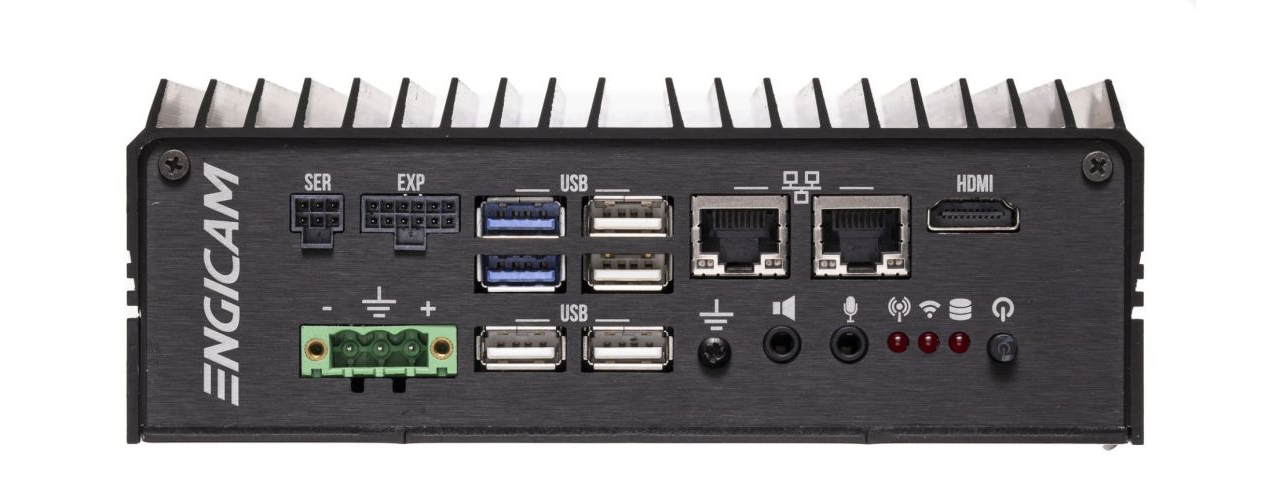

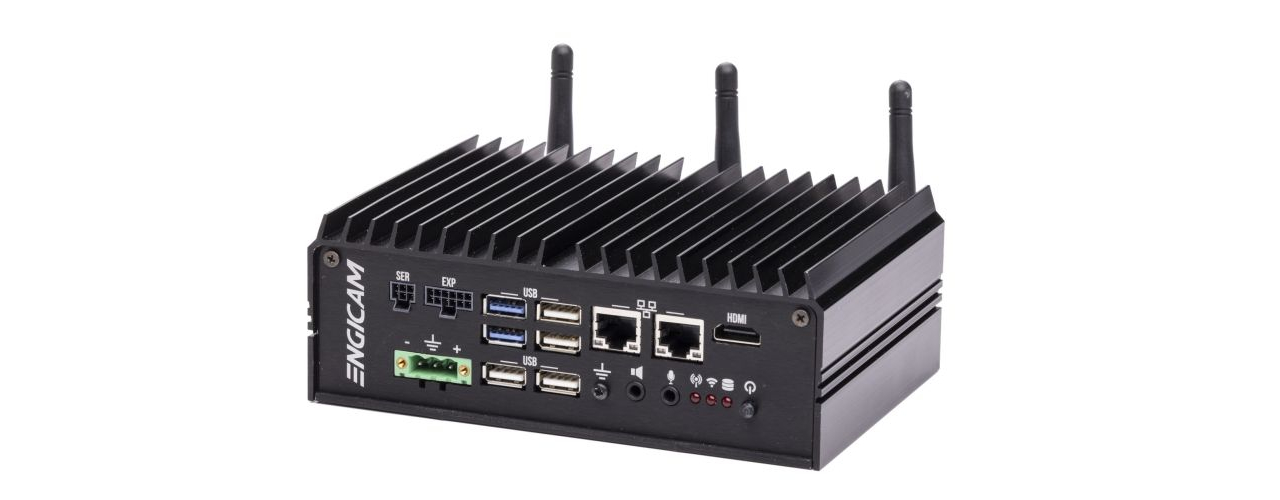

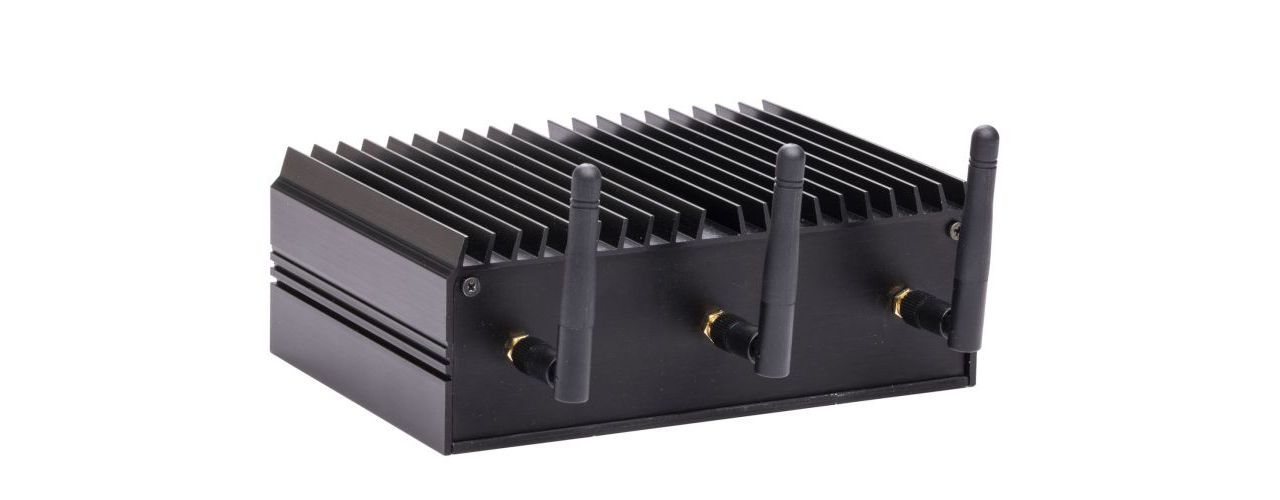

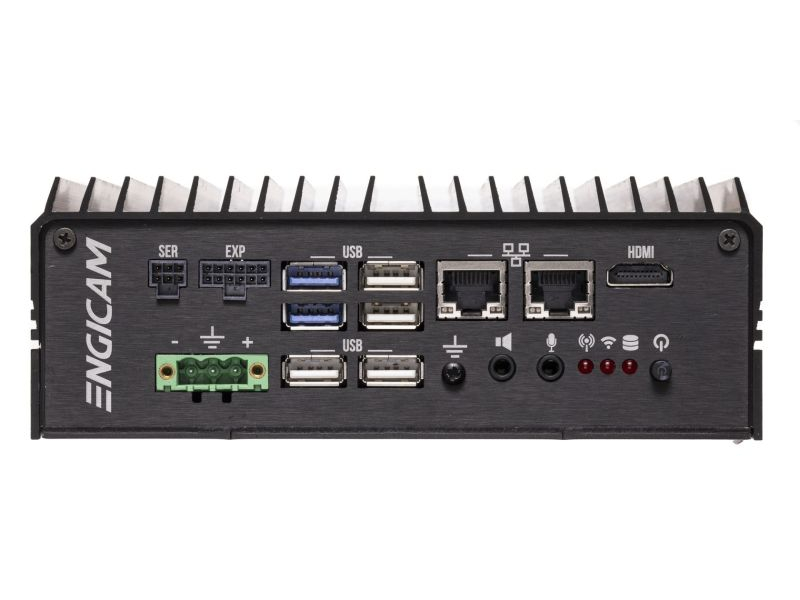

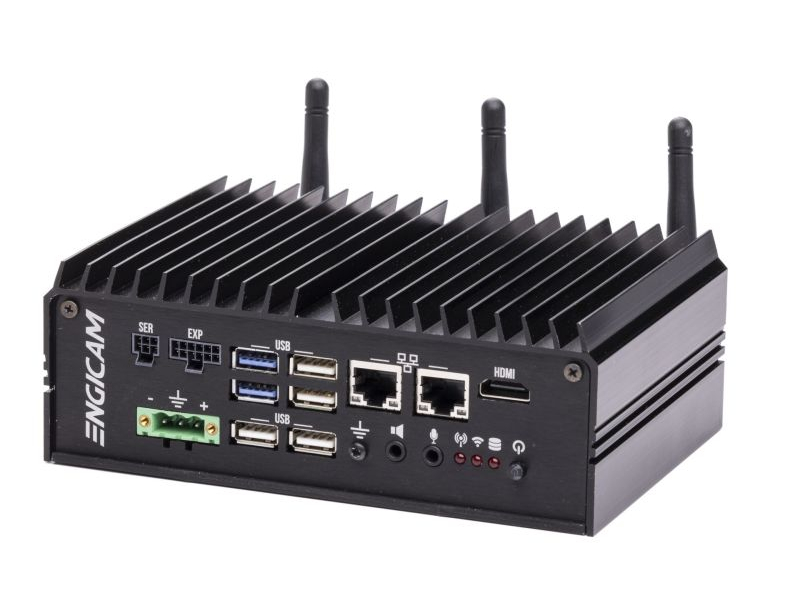

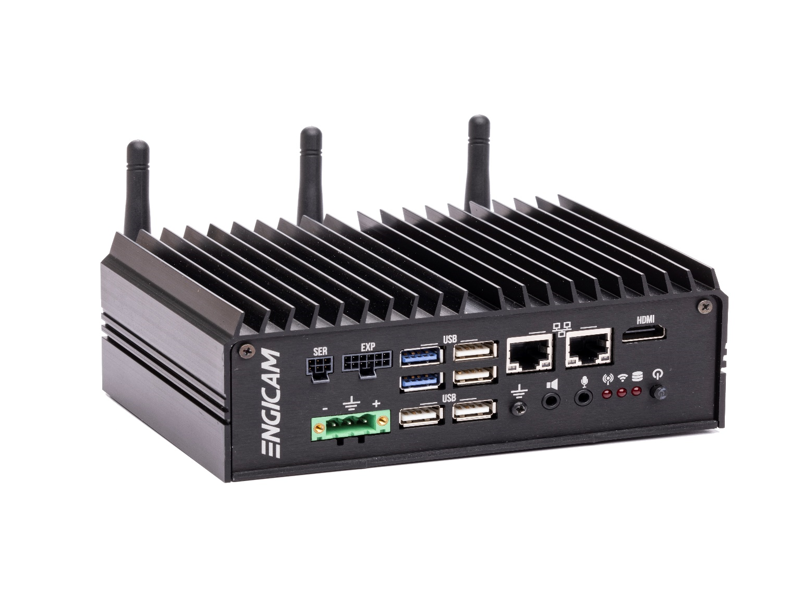

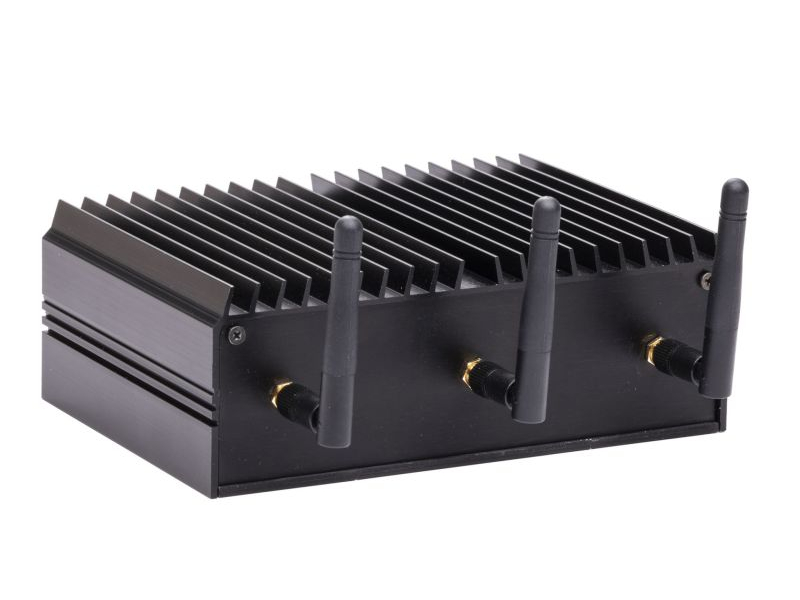

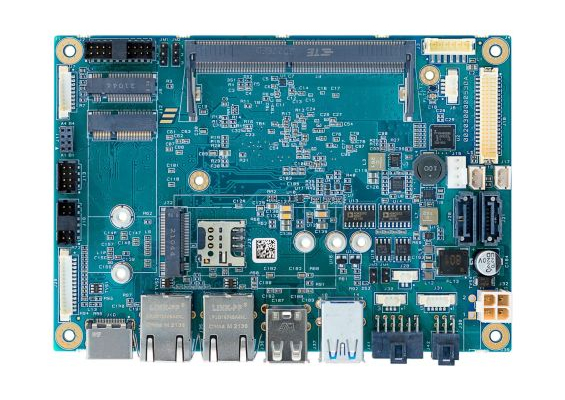

High Performance 3.5’’ Boxed PC based on Intel® Elkhart Lake™ series.

High Performance 3.5’’ Boxed PC based on Intel® Elkhart Lake series.

Operating Systems

Linux Windows

CPU:

• Intel Atom®  X6211E Dual Core 1.30 GHz , 6W
• Intel Atom®  X6413E Quad Core 1.50 GHz, 9W
• Intel Atom®  X6425E Quad Core 2.00 GHz, 12W
• Intel Atom®  X6425RE Quad Core 1.90 GHz, 12W

  • Memory 1x SODIMM up to 16 GB DDR4
  • Cores : up to 4

  • Graphics: - Intel UHD Graphics Gen11 architecture, with up to 32 Execution Units  - MPEG2, WMV9, AVC/H.264, JPEG/MJPEG

  • Video Interfaces: HDMI up to 4K @60Hz

  • Video Processing: - HEVC/H.265, VP9, WMV/VC1 HW decoding, up to 4k @60 - H.264, HEVC/H.265, JPEG/MJPEG, VP9 HW encoding

  • Audio: Build in HD

  • Networking: 2 x Gb Ethernet interface, WLAN/BT M.2 key E, WWAN M.2 Key B with SIM slot

  • USB: 2 x USB Host 3.1, 2 x USB Host 2.0, 1 x internal USB Host 2.0

  • Mass storage: 2x SATA slot, 2x SSD M.2 Key M slot, SSD M.2 Key B slot

  • Mini slot: 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B

  • Dimensions166 x 114 x 60 mm

  • Power supply: +12V to +24V
