Compare 0 Products

empty

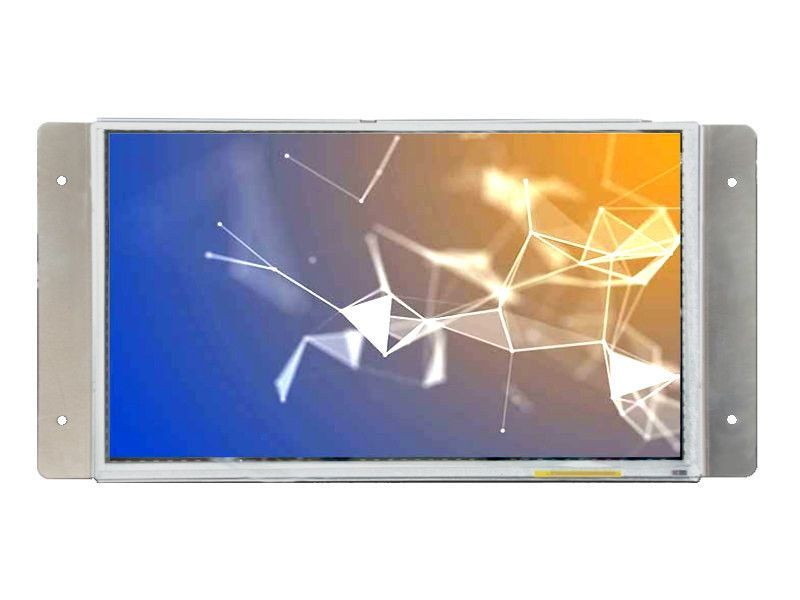

C.Touch 10.1"

The carrier+SOM approach allows a very scalable solution. Based on standard EDIMM modules, this open frame terminal can be driven by i.Core MX6 Solo module for the low-cost applications and by i.Core M6 Dual or Quad where a more powerful processor is required. The capacitive multi-touch panel and the Engicam Linux SDK allow a really ready to use way to develop a user-friendly graphic user interface. Where a standard interface is required, C.Touch open frame family is fully supported by Android BSP for i.Core M6 module. The frameless touch panel system is very easy to be integrated into the final housing. The boxed version is available as an option.

Array
(
    [prod_feature] => Array
        (
            [prd_cpu] => CPU
            [prd_cores] => Cores
            [prd_memory] => Memory
            [prd_graphics] => Graphics
            [prd_videointerf] => Video Interfaces
            [prd_videoresol] => Video Processing Unit Capabilities
            [prd_mass_storage] => Mass Storage
            [prd_networking] => Networking
            [prd_usb] => USB
            [prd_pcie] => PCIe
            [prd_audio] => Audio
            [prd_pheriphinterf] => Peripheral Interfaces
            [prd_power_supply] => Power Supply
            [prd_sistemi_op] => Operative System
            [prd_sistemi_svil] => Development System
            [prd_operating_temp] => Operating Temperature
            [prd_dimensions] => Dimensions
            [prd_availability] => Product availability (based on processor longevity program)
            [prd_core_type] => Core Type
            [prd_manifacturer] => Manufacturer
            [prd_n_cpu] => CPU
            [prd_dram_type] => DRAM Type
            [prd_n_power_supply] => Power Supply
            [prd_n_dimensions] => Dimensions
            [prd_camera_interfaces] => Camera Interface
            [prd_num_cores] => Number Cores
            [prd_lcd_interfaces] => LCD Interfaces
            [prd_mass_storage_type] => Mass Storage Type
            [prd_npu] => NPU
            [prd_vpu] => VPU
            [prd_gpu] => GPU
            [prd_dram_size_min] => Min DRAM Size (MB)
            [prd_dram_size_max] => Max DRAM Size (MB)
            [prd_dram_speed] => DRAM Speed
            [prd_num_lan_100] => Number LAN 100
            [prd_num_lan_1000] => Number LAN 1000
            [prd_num_lan_2500] => Number LAN 2500
            [prd_num_lan_10000] => Number LAN 10.000
            [prd_num_usb_otg] => Number USB OTG
            [prd_num_usb2] => Number USB2
            [prd_num_usb3] => Number USB3
            [prd_num_pcie] => Number PCIe
            [prd_operating_temp_min] => Operating Temperature MIN
            [prd_operating_temp_max] => Operating Temperature MAX
            [prd_operating_temp_note] => Note temperatura operativa
            [prd_n_availibility] => Availibility
            [prd_mcu_type] => MCU Integrata
            [prd_n_format] => Format Specification
        )

    [anagrafiche_catalogo] => Array
        (
            [esito] => 1
            [message] =>
            [dati] => Array
                (
                    [100121] => Amplifier
                    [100119] => HP
                    [100120] => Mic
                    [100000] => ARM
                    [100001] => x86
                    [100087] => HAILO-15 ™
                    [100090] => Intel ® Raptor Lake
                    [100067] => Intel®  Tiger Lake
                    [100064] => Intel® Apollo Lake
                    [100063] => Intel® Elkhart Lake
                    [100089] => Intel®Alder Lake
                    [100096] => Intel®Amston Lake
                    [100105] => MediaTek® Genio 520/720
                    [100035] => NXP® i.MX 8M Plus
                    [100077] => NXP® i.MX 93
                    [100042] => NXP® i.MX6
                    [100045] => NXP® i.MX6UL
                    [100046] => NXP® i.MX6ULL
                    [100037] => NXP® i.MX8M MINI
                    [100040] => NXP® i.MX8X
                    [100093] => NXP® i.MX91
                    [100094] => NXP® i.MX95
                    [100044] => NXP™ i.MX 6SoloX
                    [100103] => Qualcomm Dragonwing™ IQ-615
                    [100107] => Qualcomm Dragonwing™ IQ-8275
                    [100041] => Renesas® RZ/G2E
                    [100100] => RENESAS® RZ/V2H
                    [100036] => RockChip® PX30
                    [100043] => RockChip® RK1808
                    [100091] => Rockchip® RK3568
                    [100079] => ST® STM32MP13x
                    [100038] => ST® STM32MP15x
                    [100102] => ST® STM32MP2x
                    [100080] => TI® AM62x Sitara
                    [100092] => 113x100 mm
                    [100073] => 146 x 102 mm (3.5" form factor)
                    [100083] => 155 x 160 mm
                    [100097] => 166 x 114 x 60 mm
                    [100050] => 25 x 25 mm
                    [100078] => 25 x 26 mm
                    [100101] => 35 x 55 mm
                    [100051] => 40 x 30 mm
                    [100052] => 41.5 x 81.5 mm
                    [100070] => 55 x 84 mm
                    [100047] => 67.6 x 25 mm
                    [100039] => 67.6 x 32 mm
                    [100049] => 70 x 40 mm
                    [100095] => 70 x 70 mm
                    [100048] => 82 x 50 mm
                    [100069] => 95 x 95 mm
                    [100023] => 1024
                    [100031] => 16384
                    [100025] => 2048
                    [100027] => 4096
                    [100029] => 8192
                    [100024] => 1024
                    [100032] => 16384
                    [100026] => 2048
                    [100028] => 4096
                    [100030] => 8192
                    [100007] => DDR2
                    [100008] => DDR3
                    [100065] => DDR3 or LPDDR4
                    [100009] => DDR3L
                    [100010] => DDR4
                    [100011] => LPDDR4
                    [100012] => LPDDR4X
                    [100085] => LPDDR5
                    [100108] => LPDDR5X
                    [100111] => M.2 KEY B
                    [100112] => M.2 KEY E
                    [100113] => M.2 KEY M
                    [100110] => uSD CARD
                    [100075] => Compact Type 6
                    [100055] => EDIMM
                    [100056] => EDIMM 2.0
                    [100058] => Is.IoT
                    [100057] => MicroGEA
                    [100074] => Mini Type 10
                    [100098] => Qseven
                    [100059] => SmarCore
                    [100099] => TIA Vision
                    [100061] => ULTRA_GEA
                    [100017] => DP
                    [100015] => DSI
                    [100018] => eDP
                    [100016] => HDMI
                    [100014] => LVDS
                    [100122] => MIPI-CSI
                    [100013] => Parallel RGB
                    [100118] => Dual Channel
                    [100117] => Single Channel
                    [100088] => Hailo Technologies
                    [100003] => Intel
                    [100106] => MediaTek
                    [100002] => NXP
                    [100104] => Qualcomm
                    [100006] => Renesas
                    [100005] => Rockchip
                    [100004] => ST
                    [100081] => Texas Instruments
                    [100053] => Cortex-M4
                    [100054] => Cortex-M7
                    [100076] => +10 to 24 VDC
                    [100072] => +12 to 24 VDC
                    [100068] => +12V
                    [100071] => +5 to 20 VDC
                    [100084] => +8.5 to 20 V
                    [100034] => single 3.3V
                    [100033] => single 5V
                    [100020] => EMMC
                    [100019] => NAND
                    [100021] => SATA
                    [100109] => UFS
                    [100114] => WiFi 4
                    [100115] => WiFi 5
                    [100116] => WiFi 6
                )

        )

)
1

Specifications

Operating System

Linux
Android

Features

TFT 10.1" Industrial, 1280x800 resolution
LED backlight, brightness 295 cd/m2
2 point multitouch CTP
15 to 30 Vdc single power supply
1x Ethernet 10/100T
1x audio output
1x uSD, 1x USB
1x RS232, 1x RS485
1x CAN bus
1x RTC
1x expansion connectors (I2C, SDIO or SPI, up to 10 GPIO)
CPU modules compliant
Boxed version available
Front panel option available

Documentation & Software

Access technical documents, software, and support resources.

PCN

PCN_1406-1.pdf 66.31K login required
PCN_1502-1.pdf 53.31K login required
PCN_1502-2.pdf 52.51K login required
PCN_1708-1.pdf 127.47K login required
PCN_2108-02.pdf 127.08K login required
PCN_2108-04.pdf 668.30K login required

Fact Sheet

C.TOUCH_10_Flyer.pdf 204.30K

Hardware manual

Openframe_C.TOUCH_USR_Manual_1.2.9.pdf 5.68M login required

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

C.Touch

General purpose carrier board with capacitive touch interface.

View product

Products to complete your design

i.Core MX6

i.MX6 based EDIMM SOM

View product

Technical Wiki & Design Resources

Online documentation and technical knowledge base for this product.

Latest news & insights

Latest updates, product releases and insights from the embedded world.

Read all articles

#{title}

#{text}
