Capacitive touch 10.1" open frame standard EDIMM 2.0

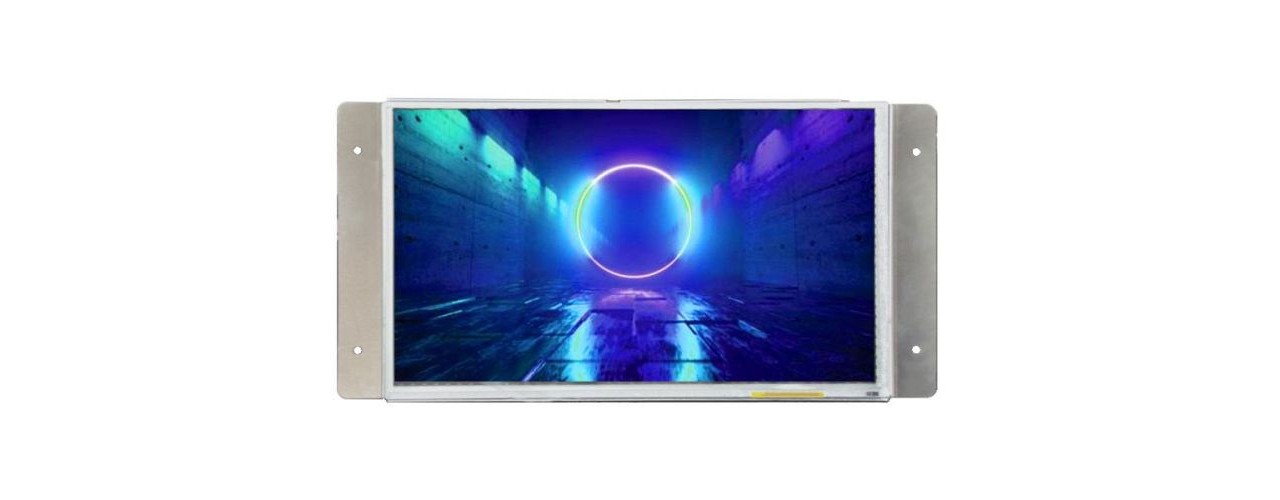

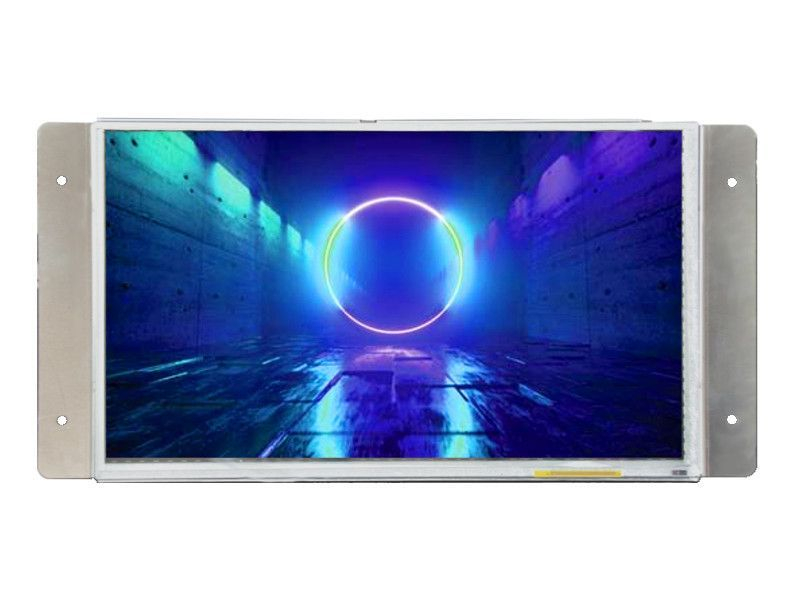

The C.Touch IoT 10.1" is an EDIMM 2.0-compliant open frame display featuring a 10.1" industrial TFT panel at 1280x800 resolution with capacitive multi-touch.

With WiFi+BT, CAN bus, RS485/RS232, and a USB OTG interface, it provides a flexible display platform for IoT and industrial applications.

The carrier+SOM approach allows a very scalable solution. Based on the new standard EDIMM 2.0, this open frame terminal can be driven by i.Core MX6 series and the new i.Core MX8 series and i.Core STM. The capacitive multi-touch panel and the Engicam Linux SDK allow a really ready-to-use way to develop a user-friendly graphic user interface.  Where a standard interface is required, C.Touch IoT open frame family is fully supported by Android BSP.  The frameless touch panel system is very easy to be integrated into the final housing. WiFi and BT available.

  • EDIMM 2.0 CPU modules compliant
  • TFT 10.1" industrial, 1280x800 resolution
  • LED backlight, brightness 295 Cd/m2
  • 1x Ethernet 10/100
  • WiFi + BT
  • 1x microSD
  • 1x audio output
  • 1x USB Type A
  • 1x USB OTG device
  • 1x CAN bus
  • 1x RS485
  • 1x RS232
  • 1x RS232 for OS Console
  • 1x expansion connector (I2C, SDIO or SPI, up to 10 GPIO) 2 x USB (Option)
  • 1x LCD connector to drive dual-channel displays (Option)
