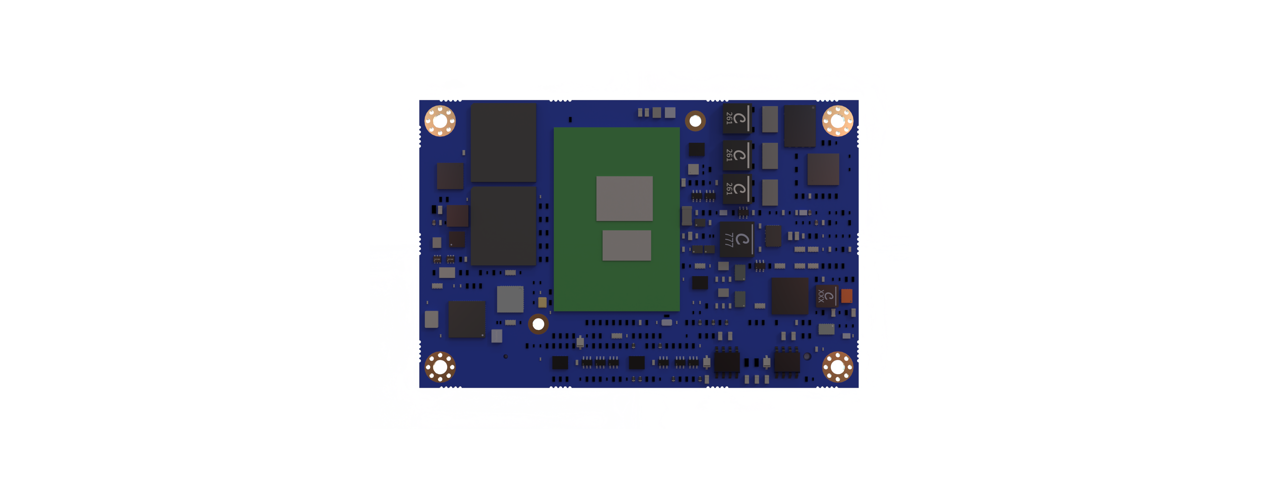

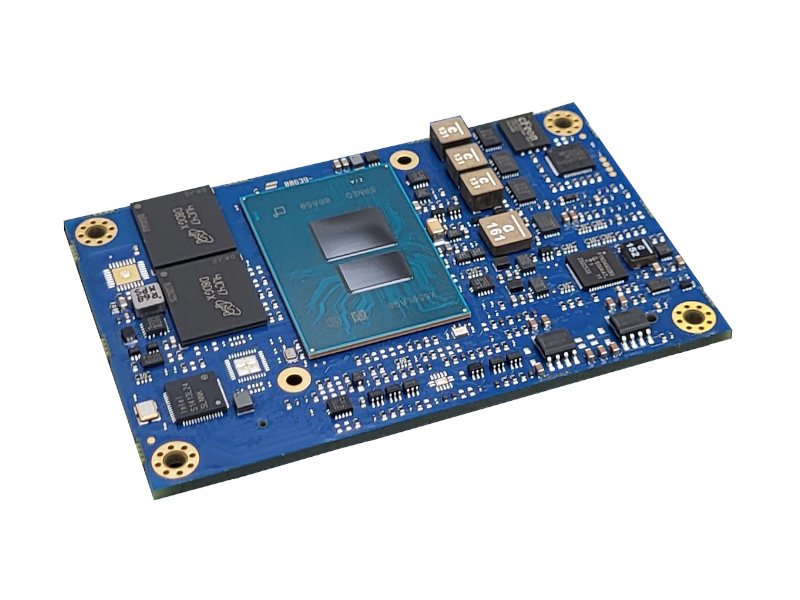

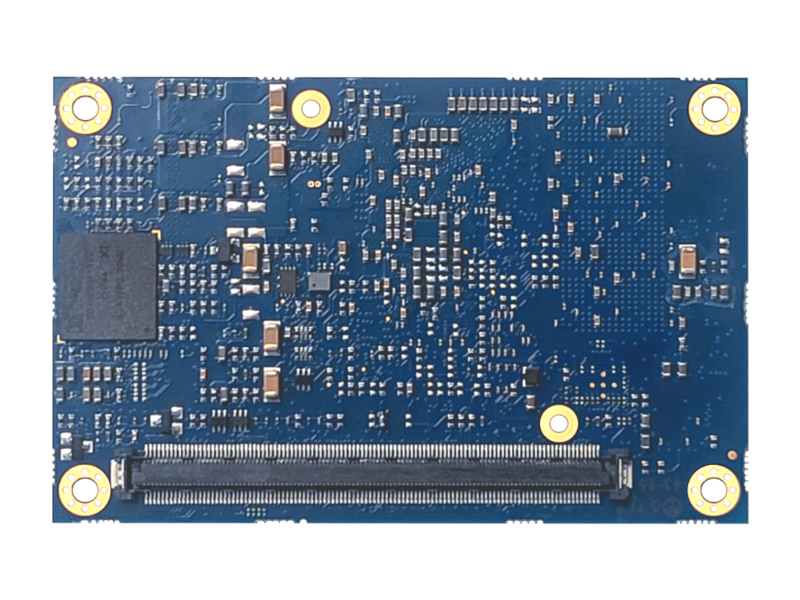

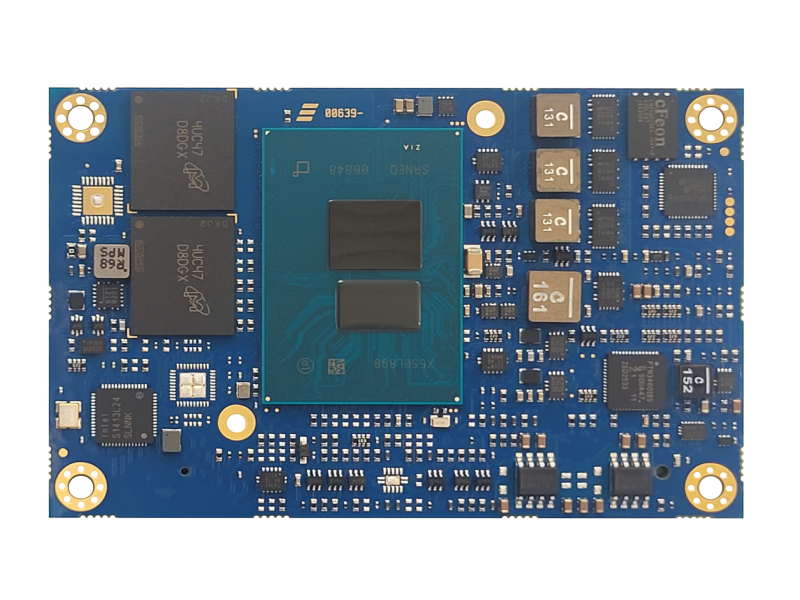

COMe 10M-ASL

The COMe 10M-ASL is a compact COM Express® Mini Type 10 module based on Intel® Amston Lake processors, designed for high-efficiency edge computing, AI, and multimedia applications. It combines scalable performance, industrial reliability, and long-term availability in a small form factor, making it ideal for space-constrained embedded systems.

CPU Intel®Amston Lake
RAM LPDDR5@4800MTs
LAN PHY 1x 2.5 GbE
DIMENSIONS 55 x 84 mm

Specifications

CPU

  • Manufacturer Intel
  • Processor Family Amston Lake
  • Architecture x86
  • Cores 2, 4, 8
  • Cores description Intel Atom® x7000RE Series, Intel Atom® x7000C Series
  • Frequency Up to 3.6 GHz

MEMORY

  • RAM Type LPDDR5
  • RAM Frequency 4800 MT/s
  • RAM Size 4 GB up to 16 GB
  • STORAGE on board Starting from 4 GB eMMC, 2x SATA

GRAPHICS

  • GPU UHD Graphics
  • Features OpenGL 4.6, OpenCL 3.0, Direct X 12.1
  • Other IPU 6

VIDEO

  • HDMI
  • eDP
  • LVDS Channels Single

VIDEO PROCESSING

  • Decoder Support HEVC/ H265, VP9, AV1
  • Encoder Support HEVC/H265

USB

  • USB2 8
  • USB3 2

PCIe

  • Generation Gen3
  • Number 4
  • Aggregations 4x 1-lane, 2x 2-lane

NETWORKING

  • LAN PHY 1x 2.5 Gigabit Ethernet

PERIPHERAL INTERFACES

  • UART 3
  • I2C 2
  • SPI 1
  • GPIOs
  • Audio HDA

OPERATING SYSTEM

  • Linux Ubuntu
  • Windows

GENERAL

  • Form Factor COMe Mini Type 10
  • Dimensions 55 x 84 mm
  • Power Supply +5 to 20 VDC
  • Operational Temperature -40°C up to +85°C
  • Availability 2034
