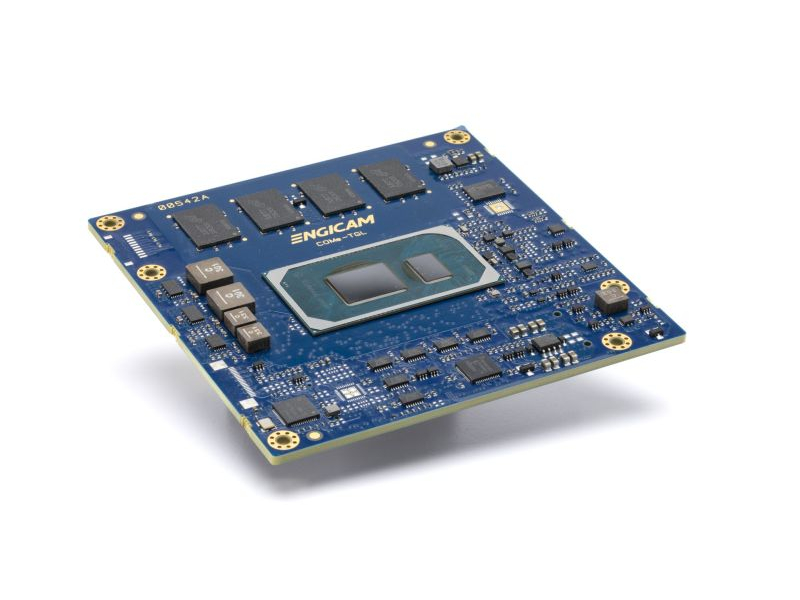

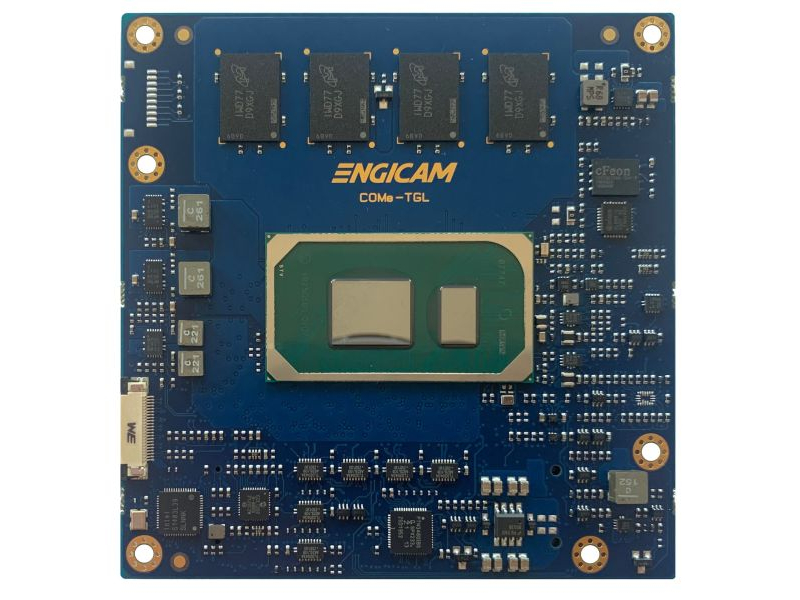

COMe 6C-TGL

A new Engicam COMe module, based on Intel® TIGER LAKE processors with the new Intel® Iris® Xe graphics. The platform offers up to 2.95 times higher graphics performance. The module combines a high-performance CPU, single-thread performance of up to 23%, and multi-thread up to 19% faster than the previous generation processors.

CPU Intel® Tiger Lake
POWER SUPPLY 31.2 W
PEG INTERFACES 1x PEG 4.0
OPERATING TEMPERATURE -40° up to 85°

Specifications

CPU

  • Manufacturer Intel
  • Processor Family Tiger Lake
  • Architecture x86
  • Cores 4
  • Cores description Core i7-1185G7E, Core i5-1145G7E, Core i3-1115G4E, Celeron® Processor 6305E, Core i7-1185GRE, Core i5-1145GRE, Core i3-1115GR
  • Frequency Up to 3.0 GHz (burst)

MEMORY

  • RAM Type LPDDR4
  • RAM Frequency 4266 MT/s
  • RAM Size From 4 GB to 32 GB
  • STORAGE on board 2x SATA

GRAPHICS

  • GPU Iris Xe Graphics Core Gen12
  • Features DirectX Support 12.1, OpenGL Support 4.6, OpenCL Support 2.0
  • Other IPU 6.0, Intel® Quick Sync Video, Intel® Clear Video HD Technology

VIDEO

  • HDMI
  • DP
  • eDP
  • LVDS Channels Dual

VIDEO PROCESSING

  • Decoder Support HEVC/H.265, VP9, AV1 HW, up to 8k @60
  • Encoder Support AVC/H.264, HEVC/H.265, JPEG, VP9 HW

USB

  • USB2 8
  • USB3 4

PCIe

  • Generation Gen3
  • Number 8
  • Aggregations up to 8-lane

NETWORKING

  • LAN PHY 1x 2.5 Gigabit Ethernet

PERIPHERAL INTERFACES

  • UART 2 Option
  • I2C 1
  • GPIOs
  • Audio HDA
  • Other SMBus, General Purpose Serial Iterface, CSI connector (option), LPC/eSPI, SPI for BIOS

OPERATING SYSTEM

  • Linux Ubuntu
  • Windows

GENERAL

  • Form Factor COMe Compact Type 6
  • Dimensions 95 x 95 mm
  • Power Supply +12V
  • Operational Temperature -40°C up to +85°C
  • Availability 2032
