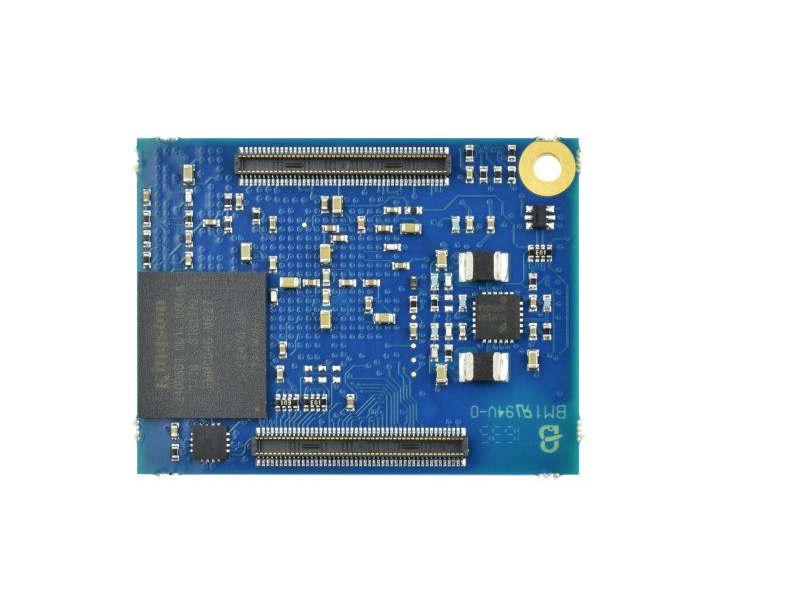

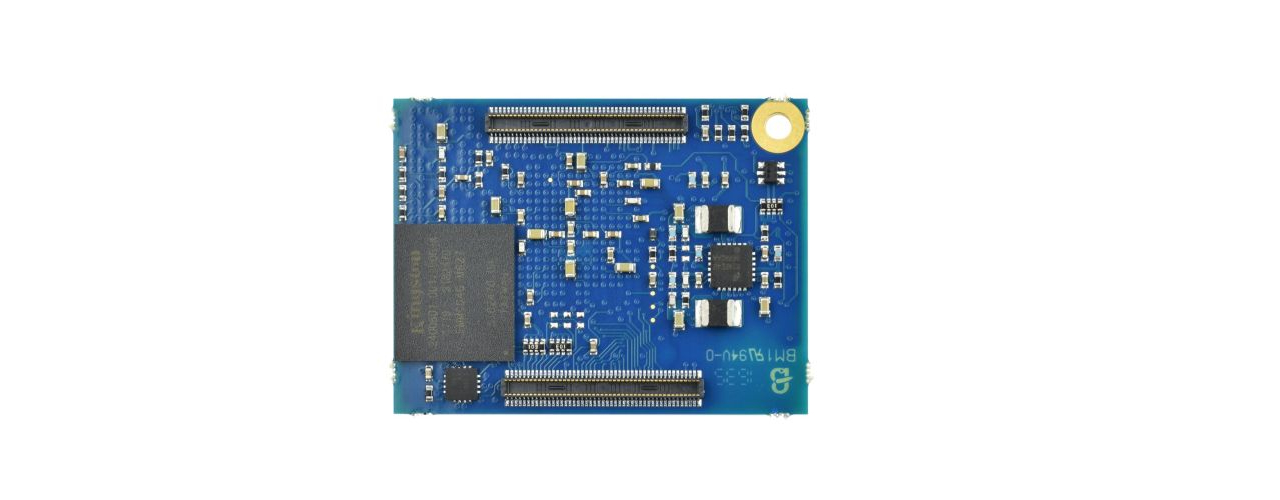

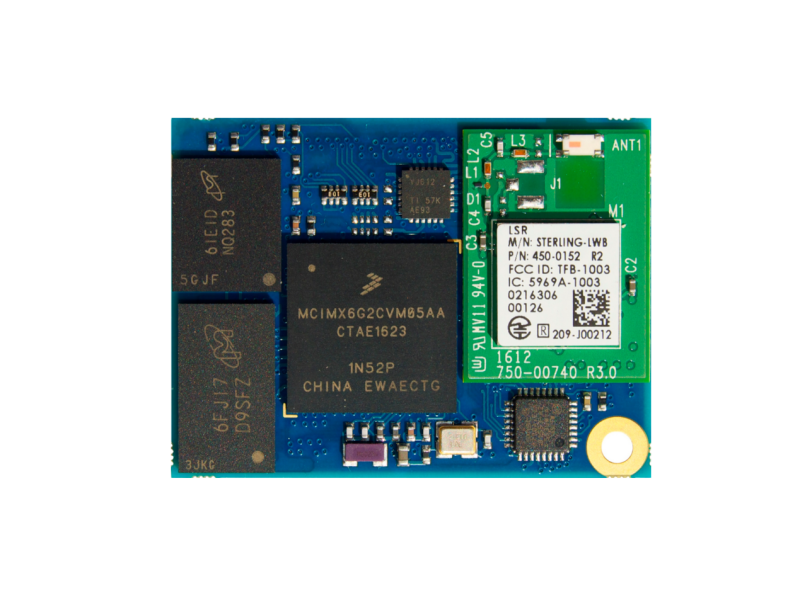

i.MX 6UltraLite based Is.IoT SOM


Is.IoT MX6UL combines low cost, smallest size, BT+WiFi option available



Is.IoT system on module family for connectivity applications. The standard includes BT and WiFi connectivity in an extremely small mechanical form factor. The first item of the new family comes with NXP i.MX6 Ultralite processor, and is available with several options like NAND or eMMC flash and Ethernet 10/100. Everything is included in an amazing 30mm x 40mm form factor with a maximum height of 4.8 mm.

CPU

  • NXP® i.MX6UL
  • Manufacturer: NXP

Cores

  • ARM
  • Single-Core Cortex-A7@ 528MHz
  • 1 cores

Memory

  • DDR3L@800MTs
  • 128MB up to 1GB

Graphics

  • Pixel processing pipeline (PXP) to support 2D image processing including color-space conversion, scaling, alpha-blending, and rotation

Video Interfaces

  • Parallel RGB

Video Processing Unit Capabilities

  • Up to WXGA (1366x768)

Mass Storage

  • NAND 256MB (option) eMMC 4GB (option)
  • EMMC, NAND

Networking

  • 1x 10/100 Ethernet

USB

  • 1x OTG
  • 1x USB2

PCIe

  • NO

Audio

  • I2S interface

Peripheral Interfaces

  • Up to 2 CAN Up to 8 UART Up to 4 I2C SDIO

Power Supply

  • single 5V

Operating System

  • Linux

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • Is.IoT
  • 40 x 30 mm

Product availability

  • 2035
