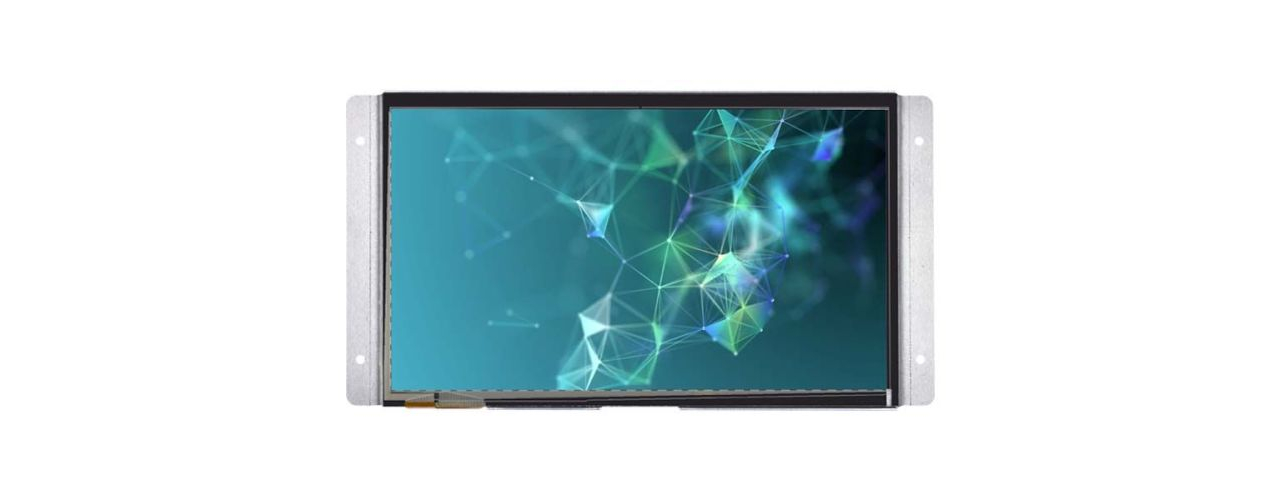

Capacitive touch 10.1" open frame based on MicroGEA modules.

Based on Micro SOM standard, this open frame provides a capacitive multi-touch panel and a wide variety of connectivity interfaces. The Engicam Linux SDK allows an immediate solution to develop a user-friendly graphic user interface. The frameless touch panel system is very easy to be integrated into the final housing.

Operating Systems

  • TFT 10.1" 1024x600 resolution
  • 5 point multitouch CTP
  • Wide 7 to 40 Vdc single power supply
  • 1 x 10/100 Ethernet interface
  • 1 x microSD
  • 1 x USB Type A
  • 1 x RS485
  • 1 x RS232
  • 1 x RS232 for OS Console
  • 1 x expansion connector (I2C, CAN, USB, UART, up to 10 GPIO)
  • WiFi + BT (option)

  • UMTS 3G with sim connector (option)
