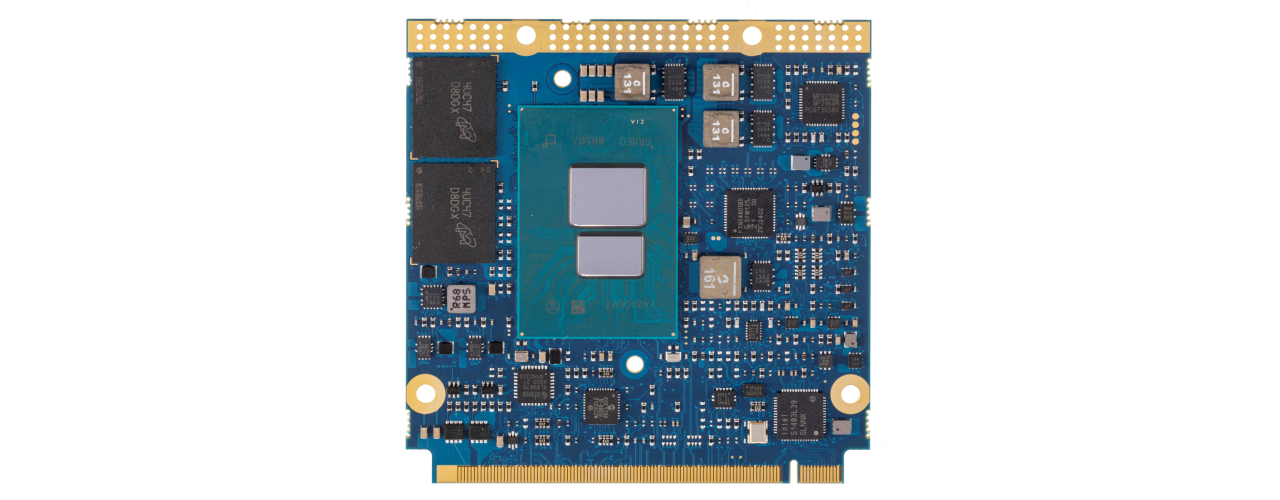

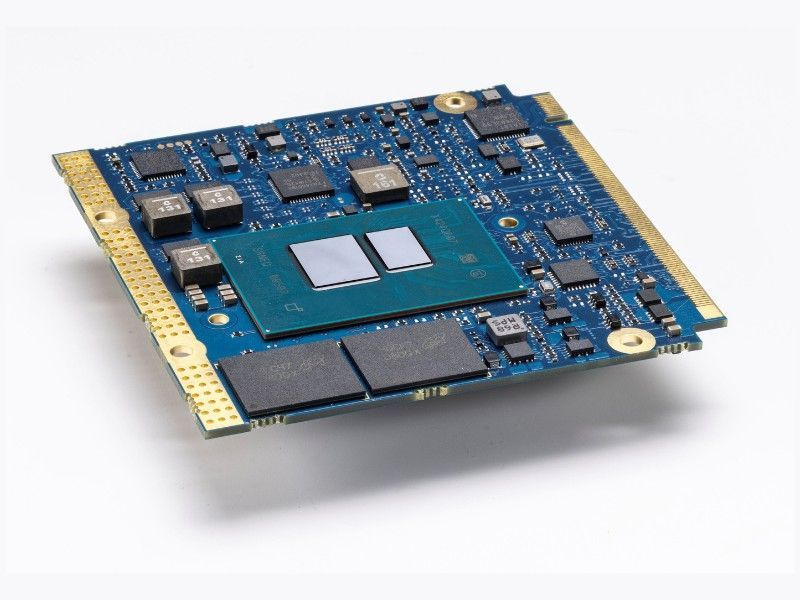

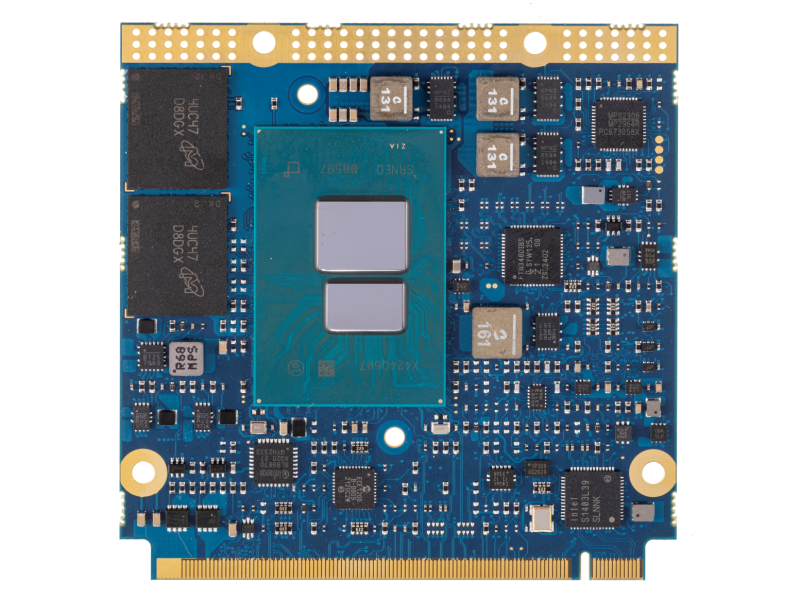

New Engicam Qseven® module based on Intel® Alder Lake™ processor - Coming soon

The new Engicam module developed on Qseven® standard is based on Intel® Alder Lake™ processor  series, with high-performance multimedia processing,  integrated IoT features, for  machine learning, connectivity and HMI applications.

CPU

  • Intel®Alder Lake
  • Manufacturer: Intel
  • GPU

Cores

  • x86
  • Intel Core™ i3 N-Series
    Intel Atom® x7000E Series
    Intel Processor N Series
  • 2, 4, 8 cores

Memory

  • LPDDR5@4800MTs
  • 0B up to 16GB

Graphics

  • UHD Intel
    OpenGL 4.6
    OpenCL 3.0
    Direct X 12.1
    IPU 6

Video Interfaces

  • DP, eDP, HDMI, LVDS

Video Processing Unit Capabilities

  • HEVC/ H265, VP9, AV1 dec
    HEVC/H265 enc

Mass Storage

  • Starting from 4 GB eMMC soldered onboard
  • EMMC

Networking

  • 1x 2.5 Gb Ethernet

USB

  • 4x USB2
  • 2x USB3

PCIe

  • 4

Audio

  • I2S i/f
    HDA

Peripheral Interfaces

  • UART
    I2C
    SPI
    CAN Bus
    SDIO
    2x SATA
    Watchdog Trigger
    LPC
    Thermal Control
    Fan Control

Power Supply

  • single 5V

Operating System

  • Linux
  • Windows

Operating Temperature

  • 0° up to 70°

Dimensions

  • Qseven
  • 70 x 70 mm

Product availability

  • 2033
open 3d viewer
View in 3D

Fact Sheet

Hardware manual

3D

  • This content is available for authorized users only. Please login.
  • No Starter Kit available for this module at the moment. For further information, please contact us
