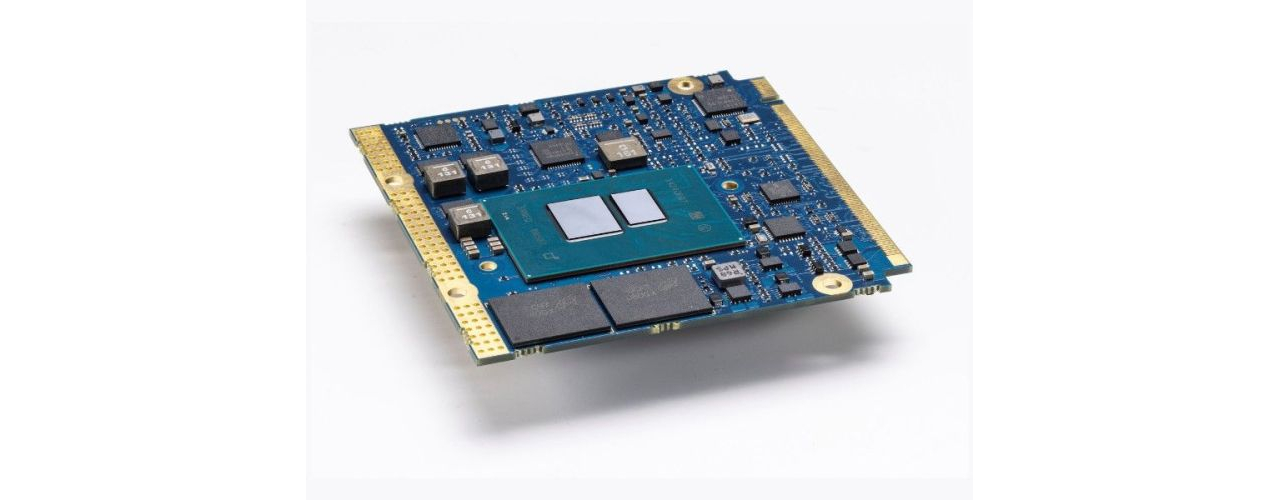

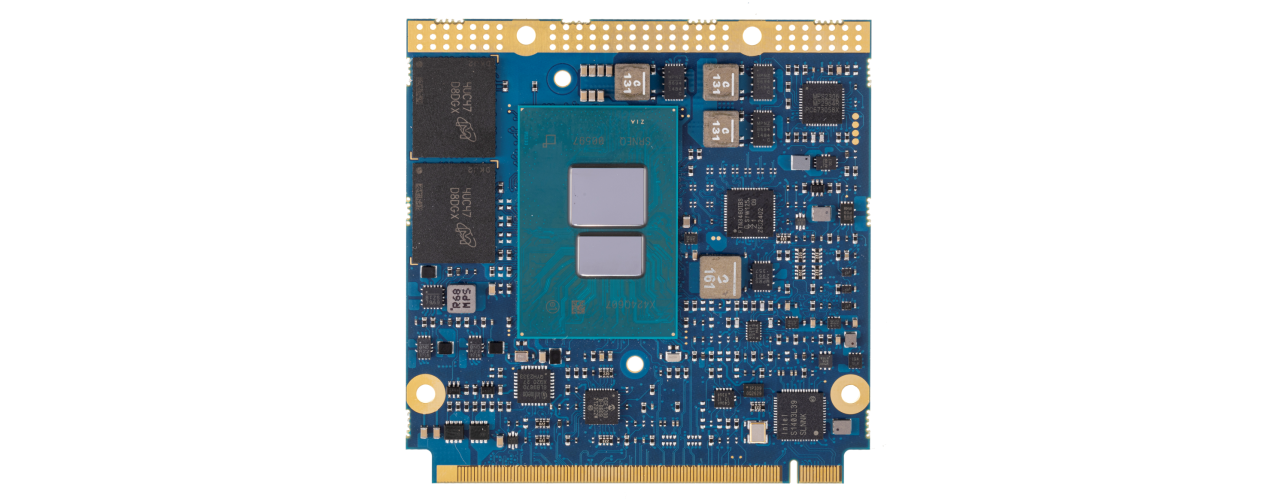

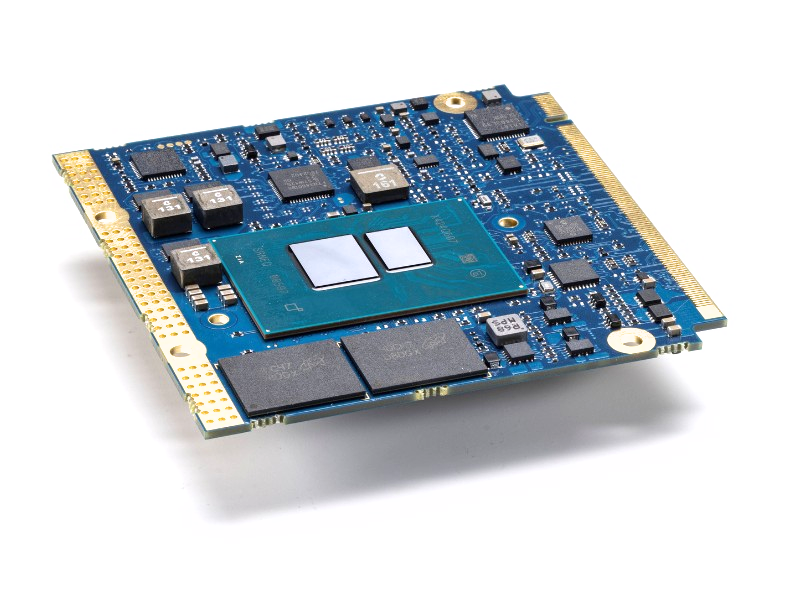

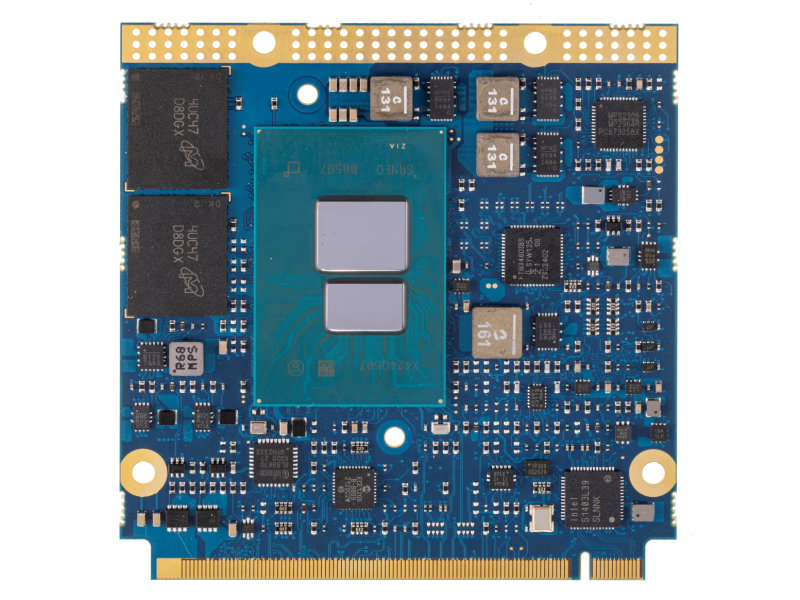

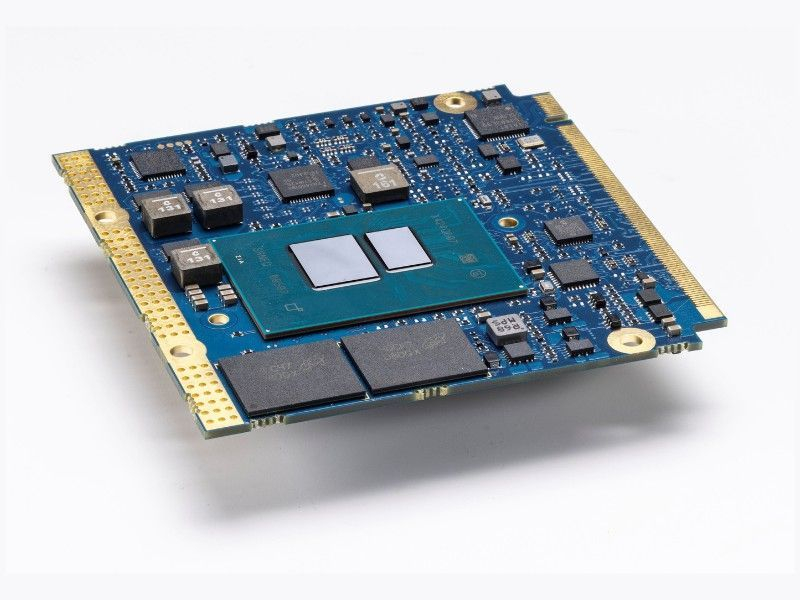

Qseven ASL

Developed on the Qseven® standard, this SoM is based on the Intel® Atom Lake™ processor series, featuring high-performance multimedia processing, integrated IoT features, and support for machine learning, connectivity, and HMI applications.

SAMPLE AVAILABLE!

CPU Intel®Amston Lake
RAM LPDDR5@4800MTs
LAN 1x 2.5 GbE
DIMENSIONS 70 x 70 mm

Specifications

CPU

  • Manufacturer Intel
  • Processor Family Amston Lake
  • Architecture x86
  • Cores 2, 4, 8
  • Cores description Atom® x7000RE Series, Atom® x7000C Series
  • Frequency Up to 3.6 GHz

MEMORY

  • RAM Type LPDDR5
  • RAM Frequency 4800 MT/s
  • RAM Size 4 GB up to 8 GB
  • STORAGE on board Starting from 4 GB eMMC, 2x SATA

GRAPHICS

  • GPU UHD Graphics
  • Features OpenGL 4.6, OpenCL 3.0, Direct X 12.1
  • Other IPU 6

VIDEO

  • DP
  • eDP
  • LVDS Channels Dual

VIDEO PROCESSING

  • Decoder Support HEVC/ H265, VP9, AV1
  • Encoder Support HEVC/H265

USB

  • USB2 4
  • USB3 2

PCIe

  • Generation Gen3
  • Number 4
  • Aggregations 4x 1-lane, 2x 2-lane

NETWORKING

  • LAN PHY 1x 2.5 Gigabit Ethernet

PERIPHERAL INTERFACES

  • UART 2
  • I2C 3
  • SPI 1
  • GPIOs
  • Audio I2S, HDA

OPERATING SYSTEM

  • Linux Ubuntu
  • Windows

GENERAL

  • Form Factor Qseven
  • Dimensions 70 x 70 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to +85°C
  • Availability 2034
