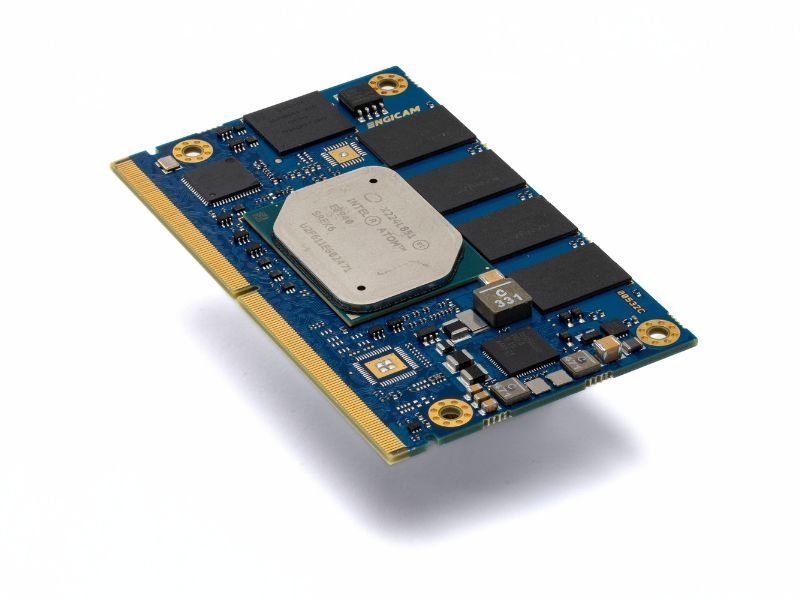

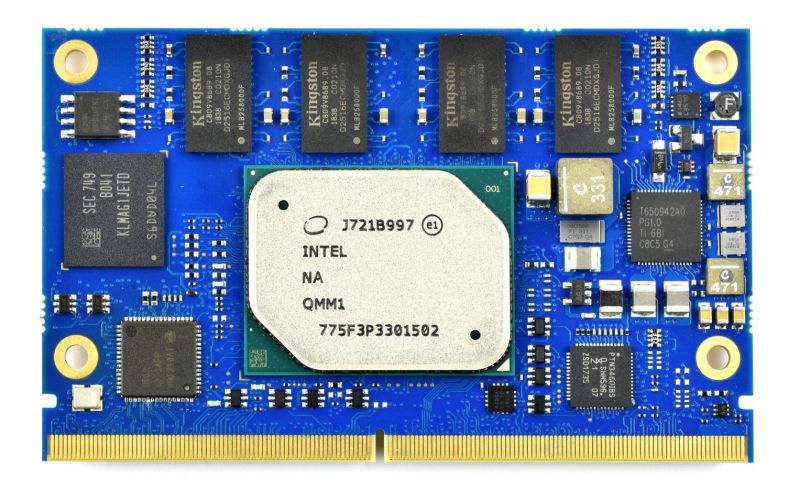

Engicam present SmarCore APL-x86 SOM based on Low Power Intel® Atom™, Celeron® and Pentium® processors (formerly Apollo Lake). The new module is based on the SMARC standard pinout.

CPU : Intel® Atom™ x7-E3950,
Intel® Atom™ x5-E3940,
Intel® Atom™ x5-E3930,
Intel® Celeron® N3350E,
Intel® Pentium® N4200E,
Intel® Celeron® J3355E,
Intel® Celeron® J3455E
Cores : Up to 4 up to 2.5GHz, L2 cashe 2MB
Memory : Up to 8GB DDR3L-1600
Graphics : Graphics : Intel® 9th generation (Gen 9) LP graphics.
HW accelerated encode HEVC (L5), H.264 (L5.2), MVC (L5.1) VP8, JPEG/MJPEG.
Video Interfaces
Video Interfaces : LVDS Dual channel up to 1920x1080 @ 60Hz via eDP bridge;
1 x HDMI up to 3840x2160@30Hz or 1920x1080@60H;
1x DP up to 3840x2160@30Hz or 1920x1080@60Hz;
eDP 4K available without LVDS;
MIPI-CSI 1 x 4 lane and 1 x 2 lane
Video Processing Unit Capabilities
Video Processing Unit Capabilities : HW accelerated encode HEVC (L5), H.264 (L5.2), MVC (L5.1) VP8, JPEG/MJPEG. HW accelerated decode HEVC (L5.1), H.264 (L5.2), MVC (L5.2) VP8, VP9, MPEG2, VC-1, WMV9, JPEG/MJPEG.
Mass Storage
Mass Storage : 1 x SATA Gen3, 16GB eMMC 5.0 expandible
Networking : 1x Intel® I210 (Industrial)
USB : 2 x USB3.0, 4 x USB2.0
PCIe : up to 4 x PCIe Gen2
Audio : 1 x HDA and 1 x I2S
Peripheral Interfaces
Peripheral Interfaces : I2C, SPI, UART, SDIO, GPIO
Power Supply
Power Supply : + 5V DC
Operative System
Operative System : Linux,Android,Windows
Operating Temperature
Operating Temperature : Industrial and consumer qualified
Dimensions : Standard SMARCTM 2.0 short size module
Product availability (based on processor longevity program)
Product availability (based on processor longevity program) : 10 and 15-year Longevity Program
  • Heatsink_assembly_SMARC_APL.pdf - 349.57K (please login to download)
  • SmarCoreAPL_Hw_manual_1.1.1.pdf - 3.07M (please login to download)
  • PCN_20.03-2.pdf - 107.57K (please login to download)
  • PCN_20.08-1.pdf - 284.64K (please login to download)
  • PCN_2106-2.pdf - 110.72K (please login to download)
  • PCN_2107-1.pdf - 92.19K (please login to download)
  • PCN_21101.pdf - 50.17K (please login to download)
  • SmarCoreAPL_ERRATA_Rev_0.pdf - 94.66K (please login to download)
