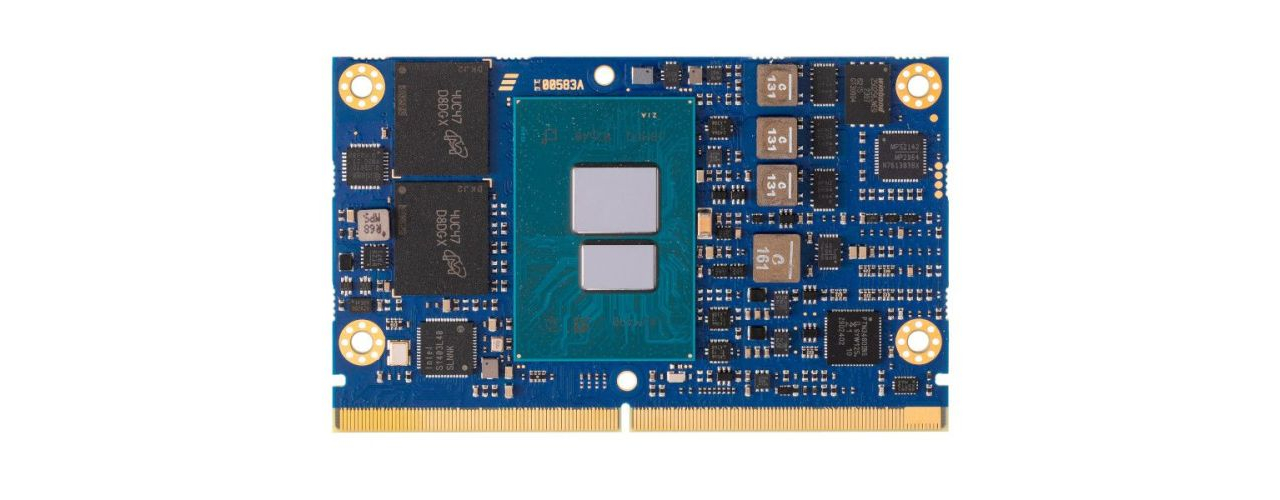

SmarCore ADL-N

The new Engicam module for machine learning, IoT connectivity, multimedia and HMI applications is based on SMARC standard.

CPU Intel®Alder Lake
RAM LPDDR5@4800MTs
DIMENSIONS Standard SMARC short size

Specifications

CPU

  • Manufacturer Intel
  • Processor Family Alder Lake
  • Architecture x86
  • Cores 2, 4
  • Cores description Intel® Core™ i3 N-Series, Intel® Atom® x7000E, Intel® Processor N Series
  • Frequency Up to 3.4 GHz

MEMORY

  • RAM Type LPDDR5
  • RAM Frequency 4800 MT/s
  • RAM Size up to 16 GB
  • STORAGE on board Starting from 4 GB eMMC

GRAPHICS

  • GPU UHD Graphics
  • Features OpenGL 4.6 OpenCL 3.0 Direct X 12.1
  • Other IPU 6

VIDEO

  • HDMI
  • DP
  • LVDS Channels Dual
  • MIPI-CSI 2x 2,4-lane

VIDEO PROCESSING

  • Decoder Support HEVC/ H265, VP9, AV1
  • Encoder Support HEVC/H265

USB

  • USB2 6
  • USB3 2

PCIe

  • Generation Gen3
  • Number 4
  • Aggregations 4x 1-lane, 2x 2-lane

NETWORKING

  • LAN PHY 2x 2.5 Gigabit Ethernet

PERIPHERAL INTERFACES

  • UART 2
  • I2C 4
  • SPI 2
  • GPIOs
  • Audio I2S
  • Other HDA interface

OPERATING SYSTEM

  • Linux Ubuntu
  • Windows

GENERAL

  • Form Factor SmarCore
  • Dimensions 82 x 50 mm
  • Power Supply single 5V
  • Operational Temperature 0°C up to +70°C
  • Availability 2034
