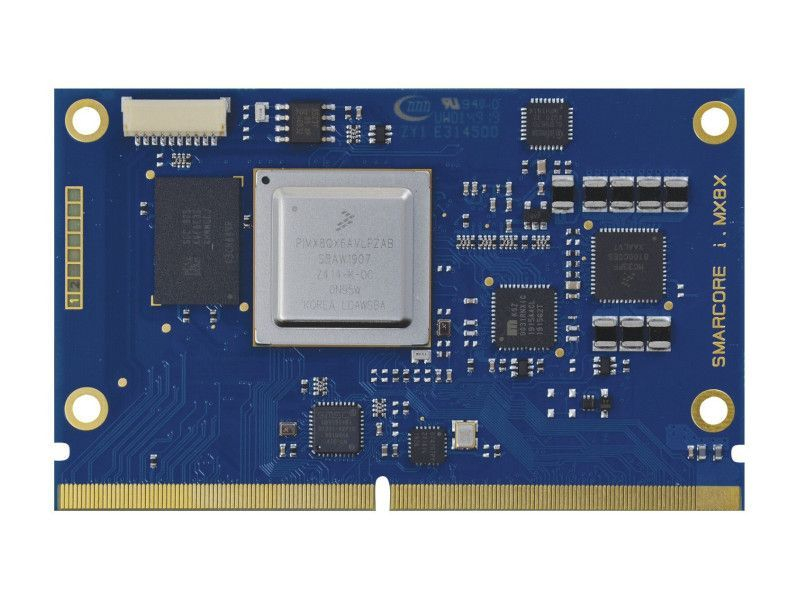

SmarCore MX8X

SmarCore MX8X SOM is based on Powerful NXP® iMX8X processors and designed to be compliant with the Smarc standard pinout.

Specifications

CPU

  • Manufacturer NXP
  • Processor Family i.MX8X
  • Architecture ARM
  • Cores 2, 4
  • Cores description Up to 4 x Cortex-A35
  • Frequency up to 1.2 GHz
  • Integrated MCU Cortex-M4

MEMORY

  • RAM Type LPDDR4
  • RAM Frequency 2400 MT/s
  • RAM Size 4 GB
  • STORAGE on board 4GB eMMC expandible to 32 GB

GRAPHICS

  • GPU 2x-4x Vec4-Shader
  • Features OpenGL ES 3.0 or 3.1; Vulkan® VX Extensions, OpenCL™ 1.2 EP, OpenVG™ 1.1

VIDEO

  • LVDS Channels Dual
  • MIPI-DSI 2x 4-lane
  • MIPI-CSI 1x 4-lane INPUT

VIDEO PROCESSING

  • Decoder Support 4Kp30 (h.265, h.264, VP8)
  • Encoder Support 1080p60 (h.264, VP8)

USB

  • USB2 2
  • USB3 1

PCIe

  • Generation Gen3
  • Number 1
  • Aggregations 1-lane

NETWORKING

  • LAN PHY 2x Gigabit Ethernet

PERIPHERAL INTERFACES

  • UART 4
  • I2C 4
  • SPI 2
  • CAN 2
  • SDIO 1
  • GPIOs
  • Audio I2S

OPERATING SYSTEM

  • Linux Yocto
  • Android
  • Windows

GENERAL

  • Form Factor Smarc Short Size
  • Dimensions 82 x 50 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to +85°C
  • Availability 2035
