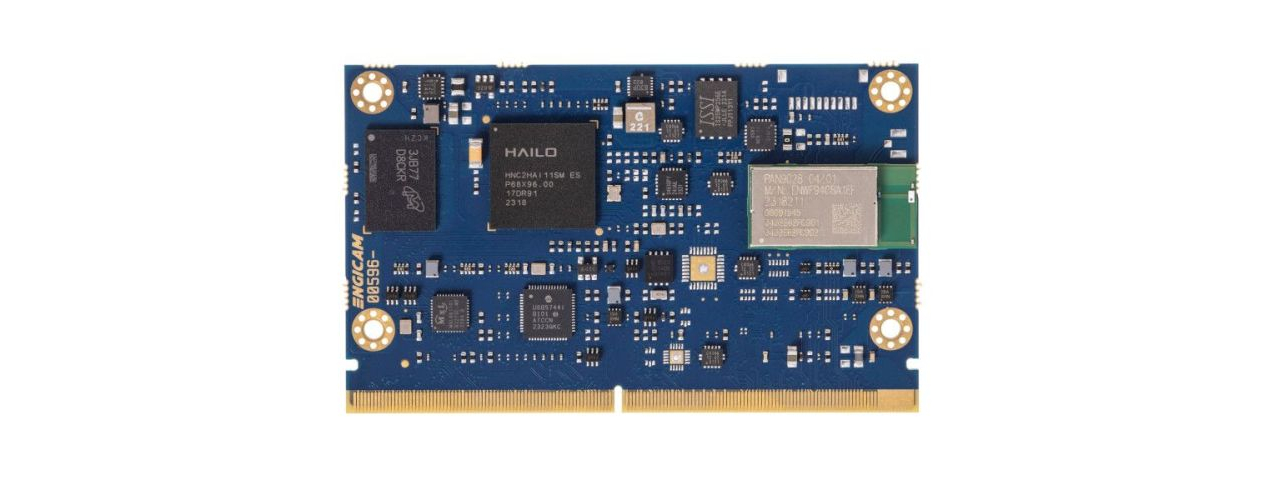

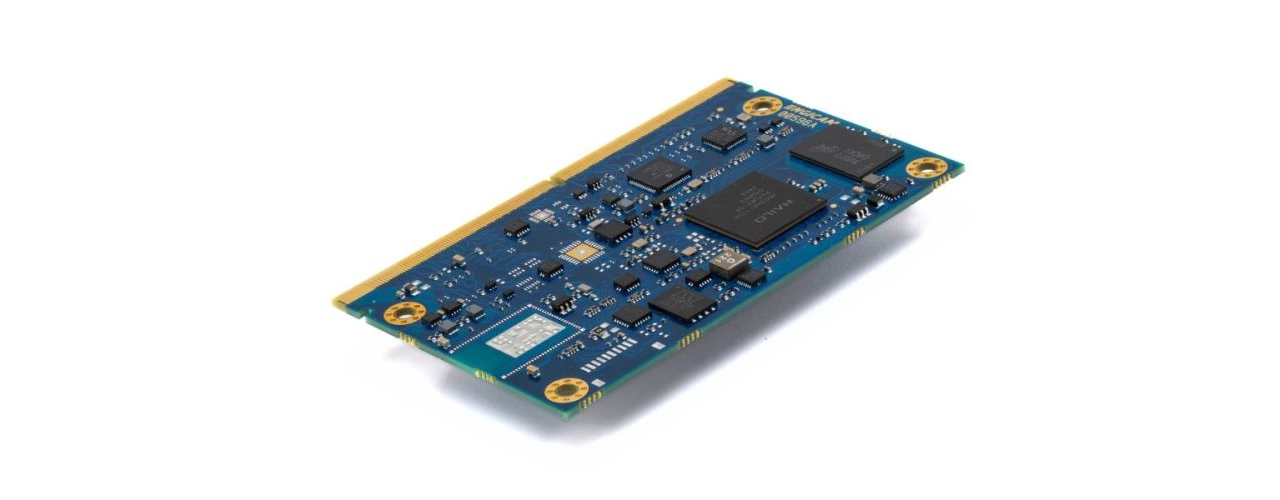

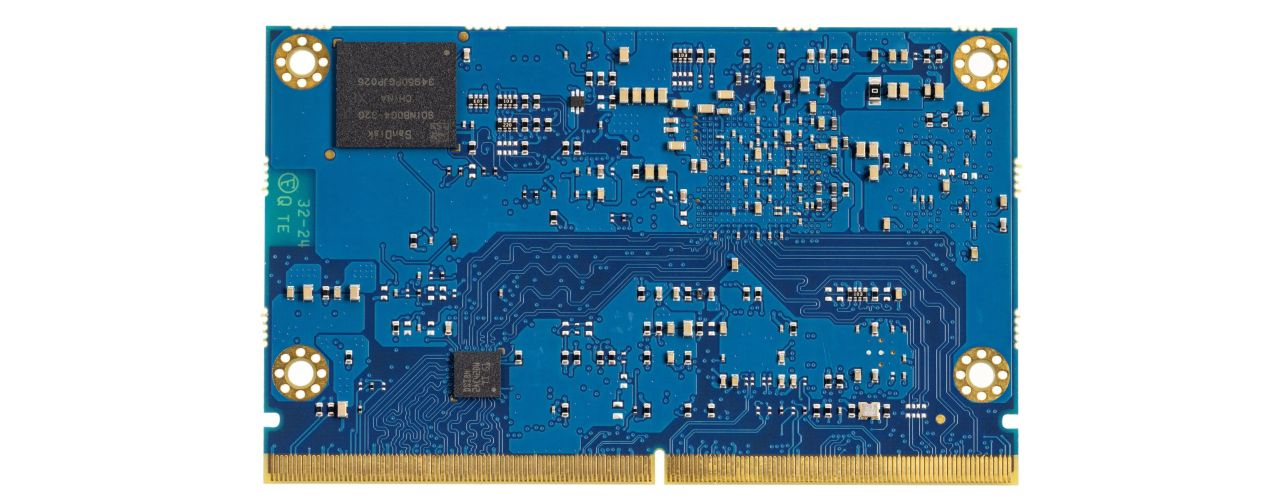

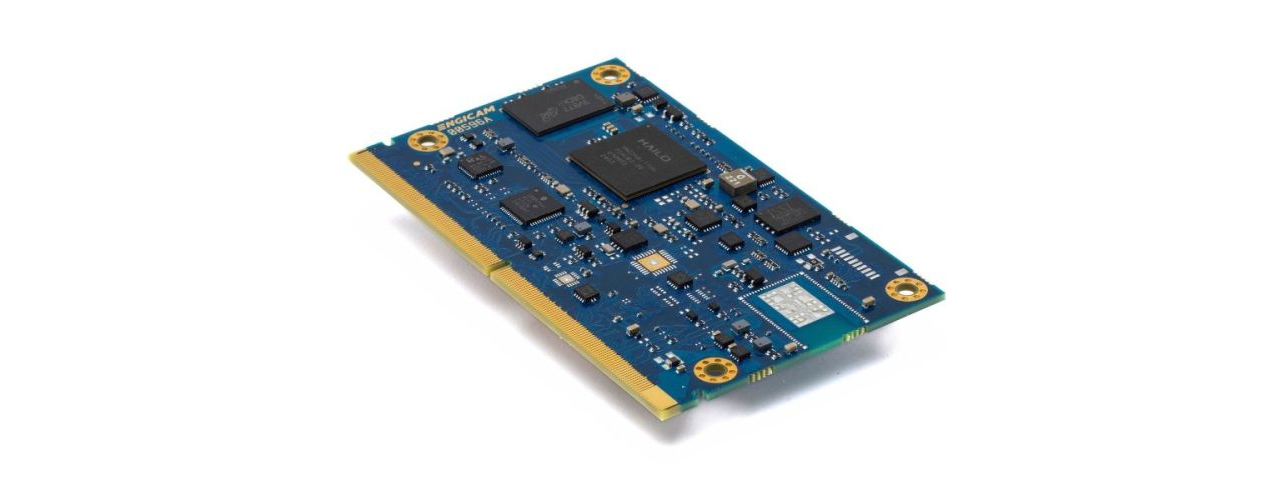

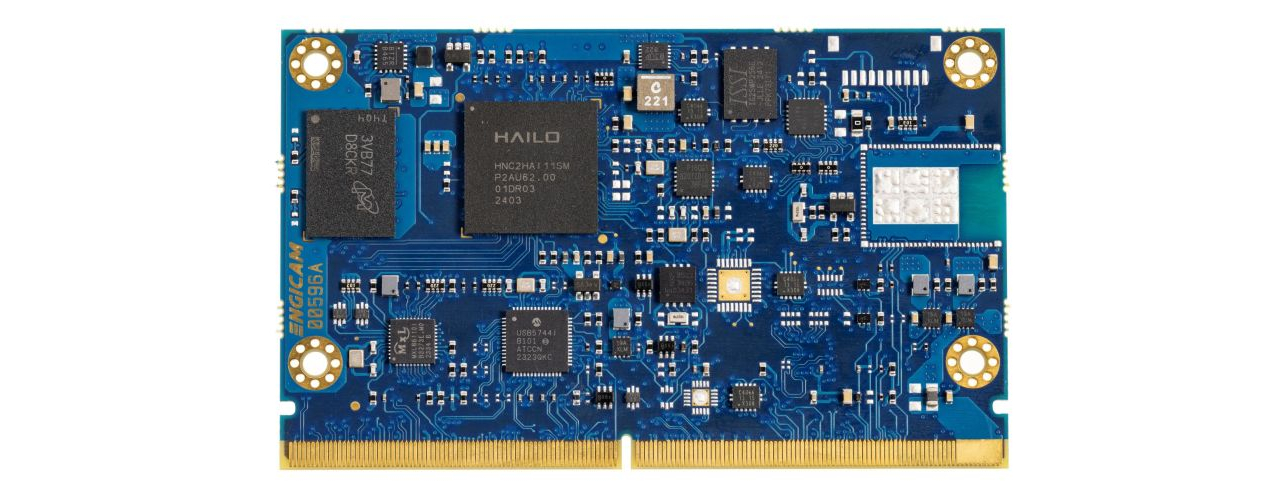

SmarCore HAILO-15 is based on HAILO-15™

The new Engicam module for AI Vision is based on SMARC standard. SmarCore HAILO-15 is based on HAILO-15™ AI processor with up to 20 TOPS Neural Network processing power for AI powered video enhancement and video analytics.

CPU

  • HAILO-15 ™
  • Manufacturer: Hailo Technologies

Cores

  • ARM
  • 4
  • 4 cores

Memory

  • LPDDR4@0MTs
  • 2GB up to 4GB

Graphics

  • DSI to LVDS 18/24 bit up to Full HD DSI-TX: 1 x 4 lanes, 2.5 Gbps each 2 x MIPI-CSI - 2-4 lanes

Video Interfaces

  • DSI, LVDS

Video Processing Unit Capabilities

  • HEVC& AVC h.265/h.264 4K30 enc

Mass Storage

  • Starting from 8GB eMMC
  • EMMC

Networking

  • 1x 1Gb Ethernet

USB

  • 4x USB2
  • 4x USB3

PCIe

  • 2

Audio

  • I2S

Peripheral Interfaces

  • SPI, I2C, Serials, PCIe, GPIOs, JTAG (optional)

Power Supply

  • single 5V

Operating System

  • Linux

Operating Temperature

  • -40° up to 125°
  • -40 - +85

Dimensions

  • SmarCore
  • 82 x 50 mm

Product availability

  • 2036
