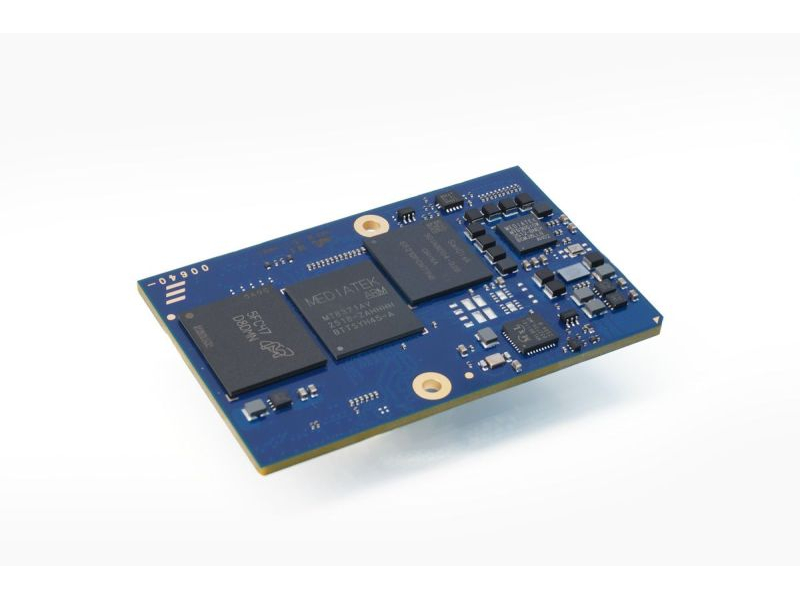

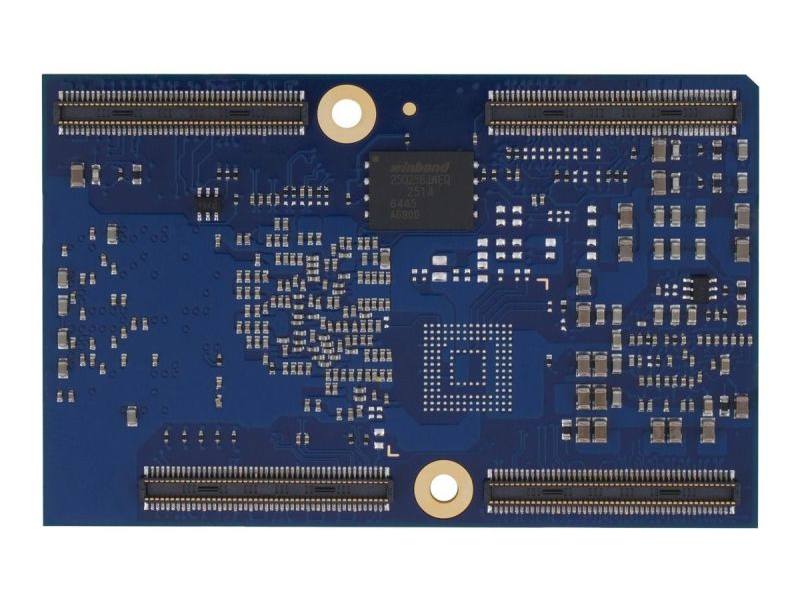

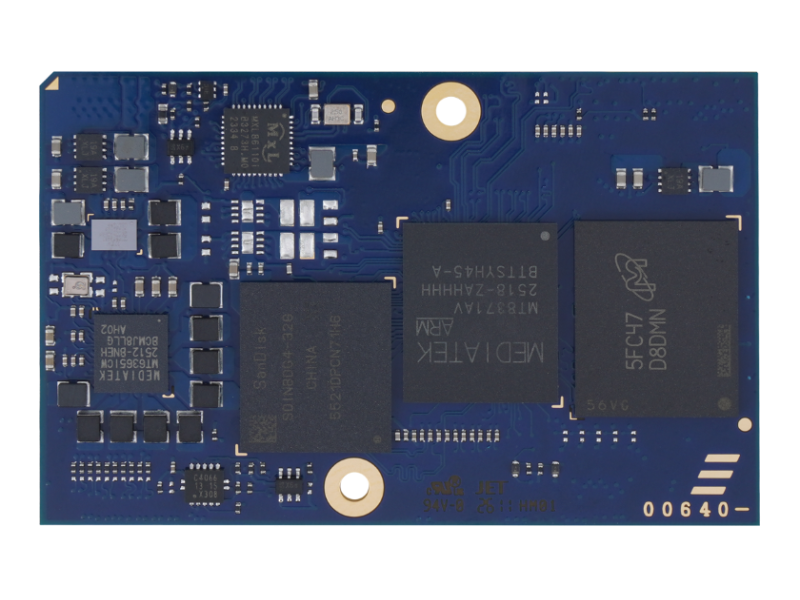

TIA Genio 520/720

The new Engicam module is a powerful IoT platform equipped with generative AI capabilities and advanced multimedia features. TIA Genio 520/720 is based on MediaTek® Genio 520/720 processor with 10 TOPS 8th Generation NPU, 3D GPU for real-time and high-performance applications.

CPU MediaTek® Genio 520/720
RAM LPDDR5@6400MTs
AI CAPABILITIES 10 TOPS NPU
DIMENSIONS 35 x 55 mm

Specifications

CPU

  • Manufacturer MediaTek
  • Processor Family Genio 520/720
  • Architecture ARM
  • Cores 8
  • Cores description 2x Arm Cortex-A78, 6x Arm Cortex-A55
  • Frequency Up to 2.6 GHz

MEMORY

  • RAM Type LPDDR5
  • RAM Frequency 6400 MT/s
  • RAM Size 16 GB
  • STORAGE on board eMMC or UFS drive

AI ACCELERATOR

  • NPU MediaTek 8th Generation NPU
  • NPU Capabilities 10 TOPS

GRAPHICS

  • GPU Arm Mali-G57 MC2
  • Features OpenGL ® ES 1.1, 2.0, 3.2; Vulkan ® 1.0, 1.1; OpenCL up to 2.2

VIDEO

  • eDP
  • LVDS Channels Single
  • MIPI-DSI 1x 4-lane
  • MIPI-CSI 2x 4-lane

VIDEO PROCESSING

  • Decoder Support 3840 x 2160@60 fps HEVC/H.264/VP9
  • Encoder Support 3840 x 2160@30 fps HEVC/H.264

USB

  • USB2 2
  • USB3 1
  • USB OTG 1

PCIe

  • Generation Gen2
  • Number 1
  • Aggregations 1x 1 lane

NETWORKING

  • LAN PHY 1x Gigabit Ethernet
  • MAC Interface 1x RGMII option

PERIPHERAL INTERFACES

  • UART 3 (up to 4)
  • I2C 6 (up to 7)
  • SPI 1 (up to 6)
  • SDIO 2
  • GPIOs
  • Audio 1x I2S i/f (up to 2), HP stereo + MIC Interface (option)
  • Other USB Type-C, ADC, JTAG

OPERATING SYSTEM

  • Linux Yocto
  • Android

GENERAL

  • Form Factor TIA Vision
  • Dimensions 35 x 55 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to +85°C
  • Availability 2035
