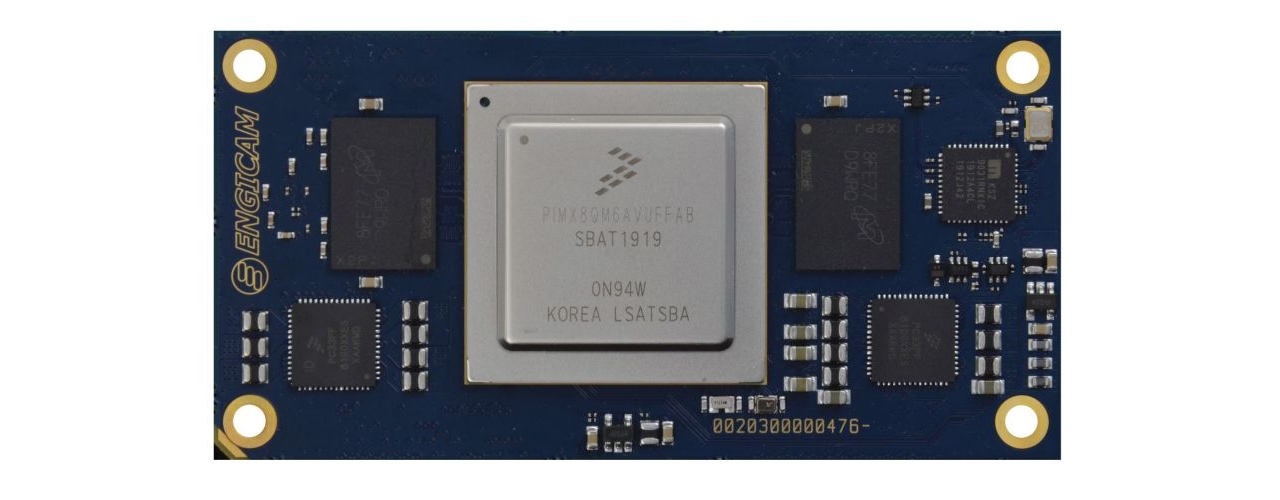

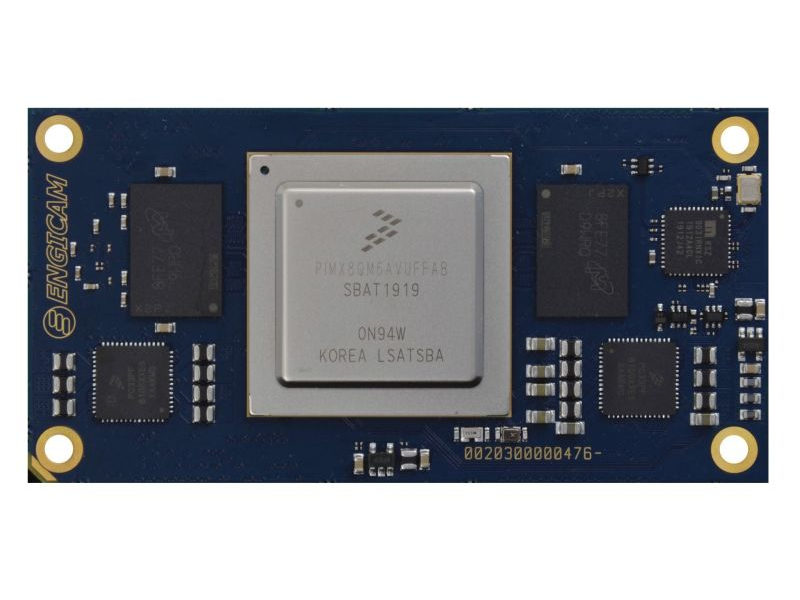

Ultra SOM based on NXP® i.MX 8QM

The new SOM is based on NXP® powerful i.MX 8QM processors equipped with the 4x Cortex-A53, plus up to2x Cortex-A72 plus up to 2x Cortex-M4F.

Operating Systems

CPU : NXP® i.MX8 Quad Max
Cores : Up to 2x ARM Cortex-A72@ 1.6 GHz, 4x Cortex-A53 @ 1.26 GHz, up to 2 CortexM4 @ 266MHz and 1x HIFI4 DSP
Memory : Up to 6GB LPDDR4 @3200MT/s
Graphics : 16 Vec4-Shader GPU, 32 compute units OpenGL® ES 3.2 and Vulkan® support Tessellation and Geometry Shading Split-GPU architecture enables 2x 8 Shader Cores Vision Extensions 4k h.265 Decode, 1080p h.264 encode
Video Interfaces
Video Interfaces : 2x Display Processor Controllers with inline blending and WARP SafeAssure Fail-over capable (per DPC) 2x 4-lane MIPI DSI 2x 4-lane MIPI CSI 2x LVDS 1x HDMI* 2.0 TX with HDCP* 2.2, 1x eDP* 1.2, 1x DP* 1.4 1x HDMI 1.4 RX with HDCP 2.2
Video Processing Unit Capabilities
Video Processing Unit Capabilities : Single UltraHD 4Kp60 display or up to 4 independent FullHD 1080p60 displays
Mass Storage
Mass Storage : 4GB eMMC expandable
Networking : 2x GB Ethernet interface
USB : USB OTG 2.0/3.0 USB HOST 2.0/3.0
PCIe : PCIe interfaces
Audio : 2x I2S interfaces
Peripheral Interfaces
Peripheral Interfaces : I2C, SPI, UART, JTAG, SDIO interfaces
Power Supply
Power Supply : + 5V DC
Operative System
Operative System : Linux
Operating Temperature
Operating Temperature : Industrial qualified
Dimensions : 41.5 x 81.5 mm
Product availability (based on processor longevity program)
Product availability (based on processor longevity program) : 10 and 15-year Longevity Program
  • UltraGEAMX8QM_HW_Manual_1.0.1.pdf - 7.63M (please login to download)

Starterkit available for development
