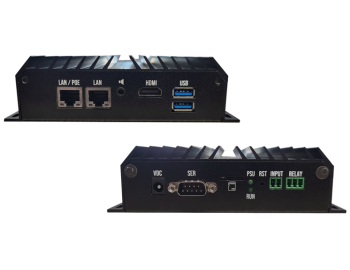

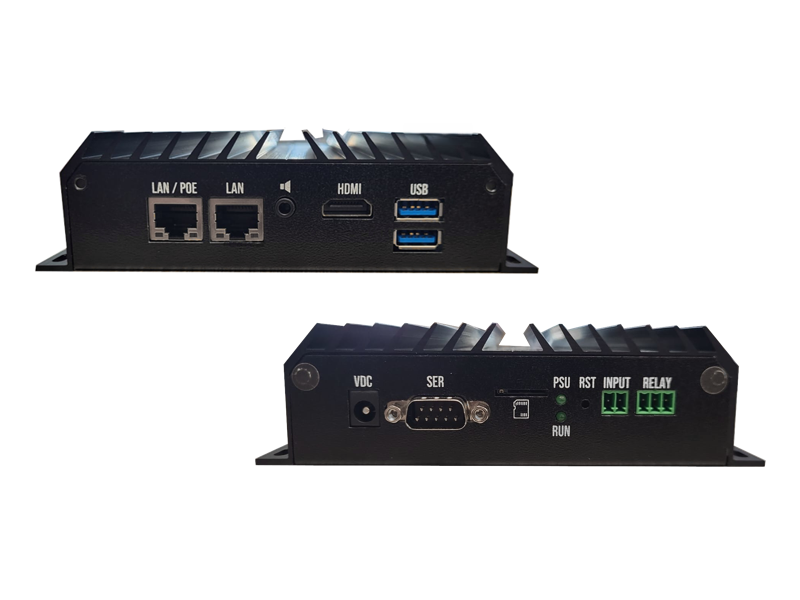

The new Boxed PC based on Rockchip® RK3568 series processors.
CPU: Rockchip RK3568/RK3568J, Quad Core ARM Cortex A-55 @1.8 GHz
Memory: Up to 8 GB LPDDR4 / 3200 MTs
Graphics: 2D graphics, 3D graphics and General Purpose computing on GPU
The GPU supports these compute API standards: - OpenCL 2.0 Full Profile, - OpenGL ES 1.1, 2.0, and 3.2, - Vulkan 1.0 and 1.1
Video Interfaces: - HDMI up to 4K @60Hz
- Optional eDP up to 4K@60Hz
- LVDS Dual Channel up to Full HD @60Hz via eDP bridge
Video processing: - HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60Hz
- AVC/H.264, HEVC/H.265
Audio: Build in I2S (on PMIC RK-809)
Networking: 2 x Gb Ethernet interfaces
Power supply:
+17 to +26 VDC (on Jack connector)
+36V to 57V input Voltage (on POE)
USB: 2 x USB HOST 3.0
Mass storage: eMMC soldered on board170408
Dimensions: 113 x 100 mm
V.Box_USR_manual.pdf
- 1.26M (please login to download)
