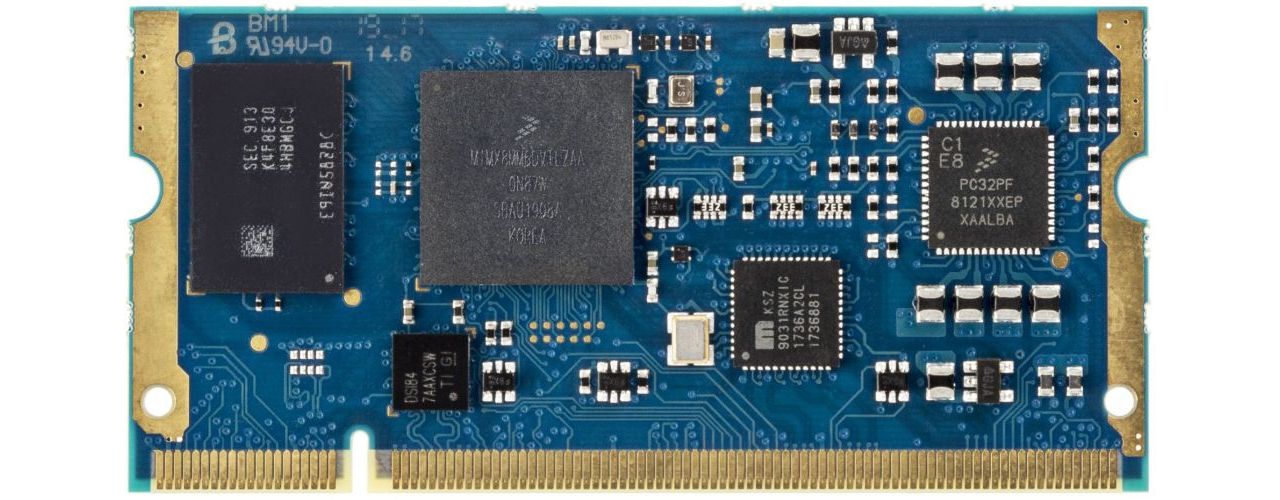

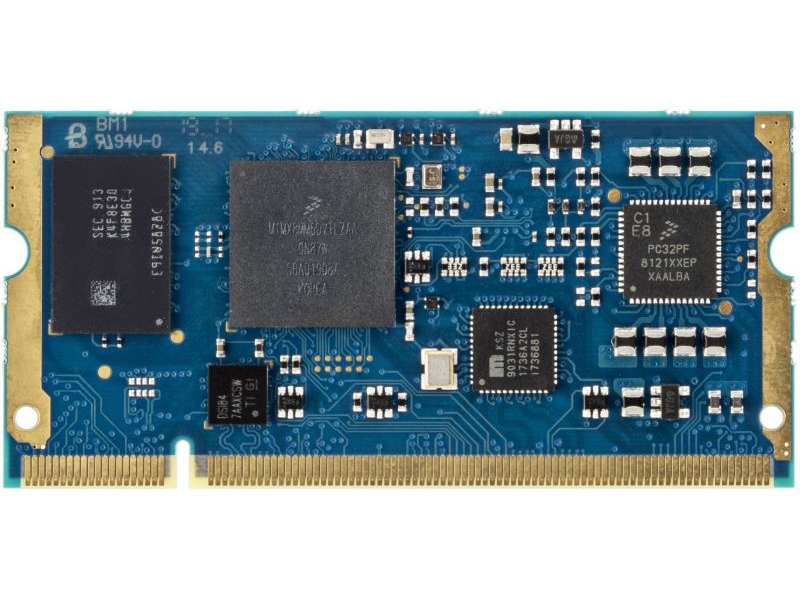

i.Core MX8M Mini

i.Core MX8M Mini is based on i.MX 8M Mini and equipped with the Cortex-A53 cores plus Cortex-M4. The i.MX 8M Mini family of processors brings together high-performance computing, power efficiency, enhanced system reliability, embedded security, streaming multimedia, and machine learning applications.

CPU NXP® i.MX8M MINI
INTEGRATED MCU Cortex-M4 @ 400MHz
RAM LPDDR4@3000MTs
GRAPHICS 3D GPU

Specifications

CPU

  • Manufacturer NXP
  • Processor Family i.MX8M MINI
  • Architecture ARM
  • Cores 4
  • Cores description Quad ARM Cortex-A53
  • Frequency Up to 1.6 GHz
  • Integrated MCU Cortex-M4

MEMORY

  • RAM Type LPDDR4
  • RAM Frequency 3000 MT/s
  • RAM Size Up to 4 GB
  • STORAGE on board Starting from 4GB eMMC

GRAPHICS

  • GPU GCNanoUltra for 3D acceleration
  • Other GC320 for 2D acceleration

VIDEO

  • LVDS Channels Single
  • MIPI-DSI 1x 4-lane
  • MIPI-CSI 1x 4-lane

VIDEO PROCESSING

  • Decoder Support 1080p60 HEVC (h.265, VP8, VP9)
  • Encoder Support 1080p60 (h.264, VP8)

USB

  • USB2 1
  • USB OTG 1

PCIe

  • Generation Gen2
  • Number 1
  • Aggregations 1-lane

NETWORKING

  • LAN PHY 1x Gigabit Ethernet

PERIPHERAL INTERFACES

  • UART 4
  • I2C 2
  • SPI 2
  • SDIO 2
  • GPIOs
  • Audio 2x I2S i/f
  • Other JTAG

OPERATING SYSTEM

  • Linux Yocto

GENERAL

  • Form Factor EDIMM 2.0
  • Dimensions 67.6 x 32 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to+85°C
  • Availability 2034
