EDIMM 2.0 Form Factor Capacitive Evaluation Board

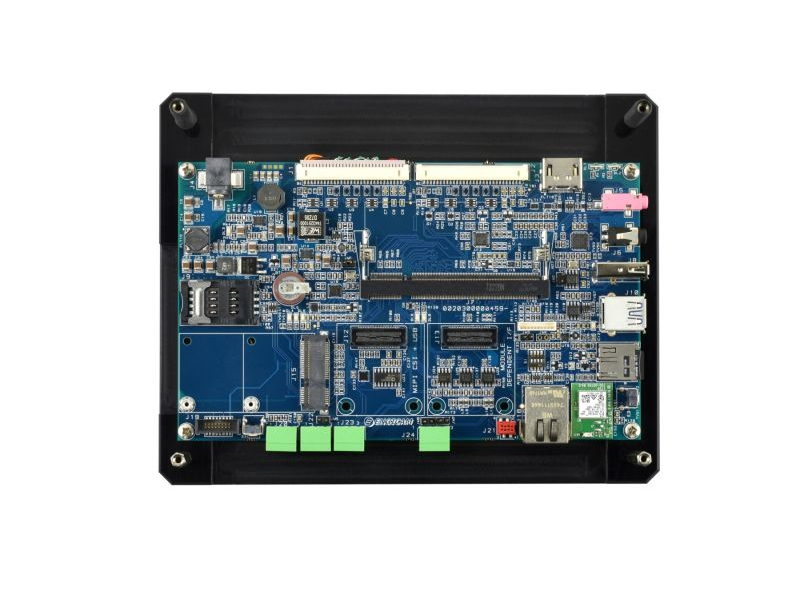

The EDIMM 2.0 Starter Kit is a ready-to-use evaluation platform based on the EDIMM 2.0 standard, including a selected SOM, a 7" capacitive touchscreen LCD, and a complete Linux or Android BSP/SDK.

With Gigabit Ethernet, USB3.0, CAN bus, and WiFi connectivity, it provides everything developers need to quickly evaluate and prototype with Engicam modules.



SUPPORTED SOM

EDIMM 2.0

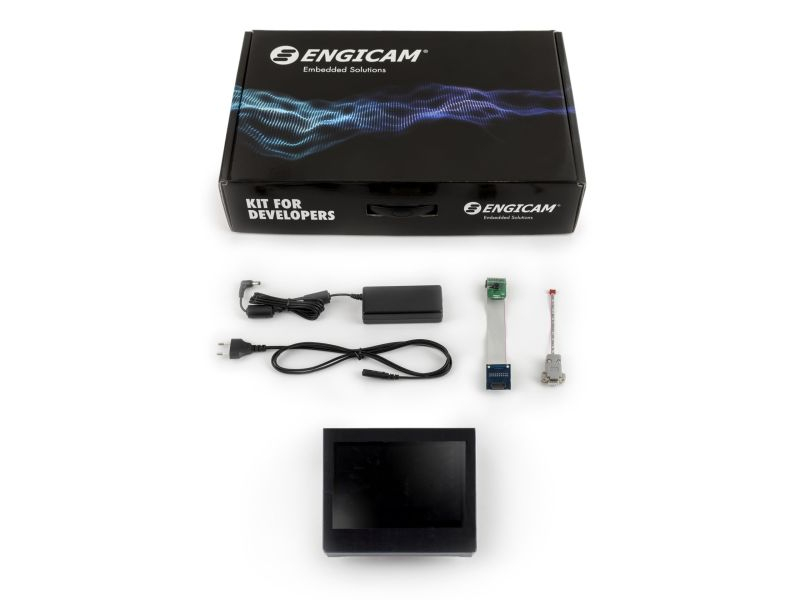

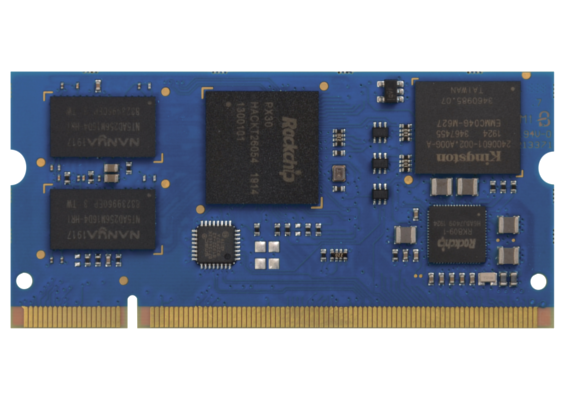

  • Selected SOM included

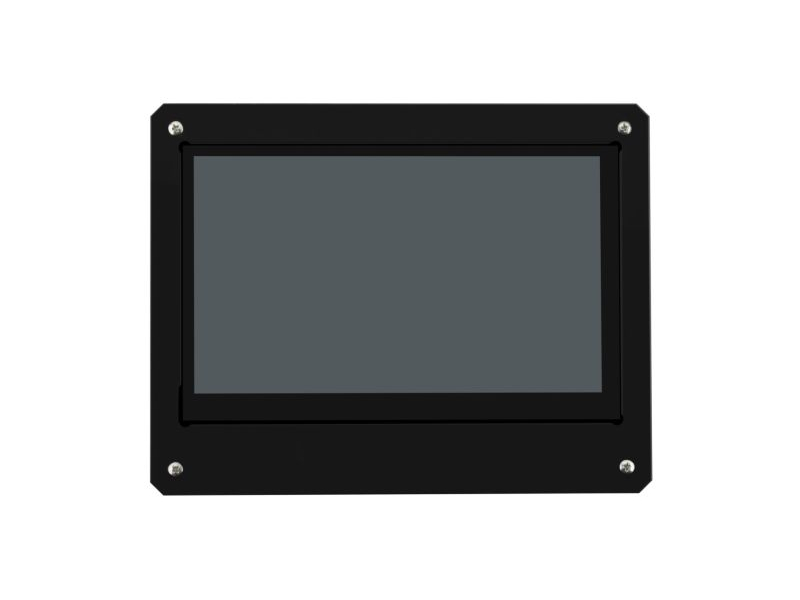

  • LCD 7" with capacitive touch-screen
  • 1x Software BSP/SDK included Linux or Android
  • AC adapter and serial cable included

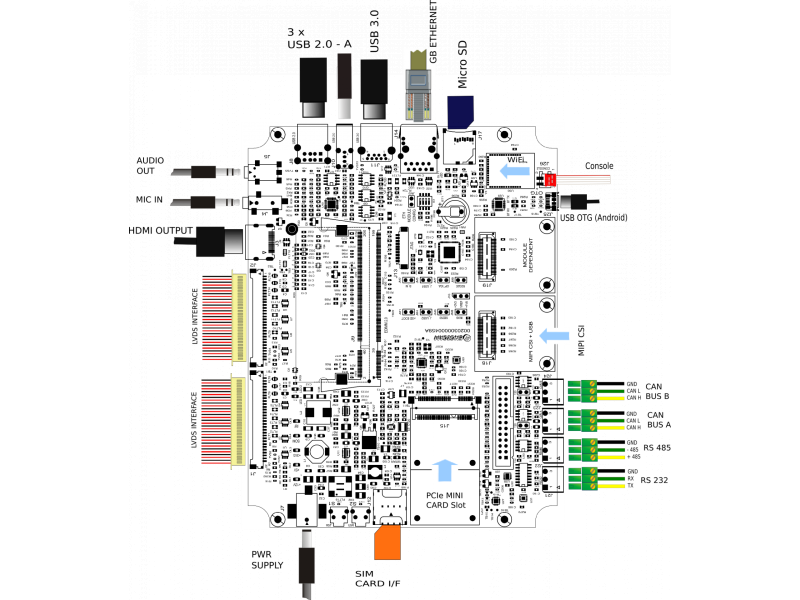

  • 1 x HDMI interface (Module Dependent)
  • 2 x LVDS interface up to FULL HD
  • 1 x Gb Ethernet (second interface on demand)
  • 1 x Audio interface
  • 1 x USB3.0  (Module Dependent)
  • 3 x USB2.0
  • 1 x microSD
  • 1 x RS485
  • 1 x RS232
  • 1 x Console (RS232)
  • 2 x CAN BUS (Module Dependent)
  • WiFi interface
  • Mini PCIe (Module Dependent)
  • 1 x MIPI CSI
