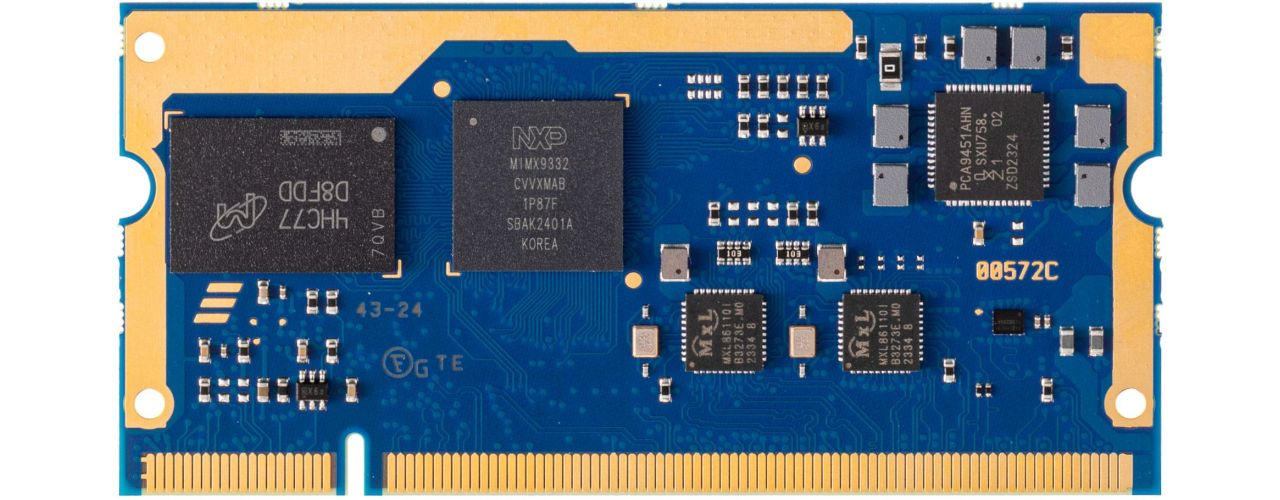

i.Core MX93

i.Core MX93  is a SOM based on the NXPs i.MX93 processor, equipped with Arm Cortex®-A55 @ up to 1.7 GHz processor with dedicated NPU.
This energy-efficient SOM is developed on EDIMM 2.0 versatile pinout and is suitable for machine learning, IoT, industrial, and automotive devices.
i.Core MX93 includes industrial features and temperature, a comprehensive set of peripherals, connectivity options such as 2x USB 2.0, and several display outputs.

CPU NXP® i.MX 93
RAM LPDDR4X@3700MTs
AI CAPABILITIES Arm® Ethos™ U-65 microNPU
DIMENSIONS 67.6 x 32 mm

Specifications

CPU

  • Manufacturer NXP
  • Processor Family i.MX 93
  • Architecture ARM
  • Cores 2
  • Cores description Up to Dual Arm® Cortex®-A55
  • Frequency Up to 1.7 GHz
  • Integrated MCU Cortex-M33

MEMORY

  • RAM Type LPDDR4X
  • RAM Frequency 3700 MT/s
  • RAM Size Up to 2GB
  • STORAGE on board Starting from 4 GB eMMC

AI ACCELERATOR

  • NPU Arm® Ethos™ U-65 microNPU
  • NPU Capabilities Up to 1 TOPS

GRAPHICS

  • Other Hardware Compositor for Blending/Composition, Resize, Color Space Conversion

VIDEO

  • LVDS Channels Single
  • MIPI-DSI 1x 4-lane
  • MIPI-CSI 1x 2-lane

USB

  • USB2 1
  • USB OTG 1

PCIe

  • PCIe NO

NETWORKING

  • LAN PHY 2x Gigabit Ethernet
  • MAC Interface 1x RGMII option

PERIPHERAL INTERFACES

  • UART 4 (Up to 6)
  • I2C 2 (Up to 8)
  • SPI (Up to 6)
  • CAN 2
  • SDIO 2
  • GPIOs
  • Audio I2S
  • Other JTAG, Analogue

OPERATING SYSTEM

  • Linux Yocto

GENERAL

  • Form Factor EDIMM 2.0
  • Dimensions 67.6 x 32 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to +80°C
  • Availability 2038
