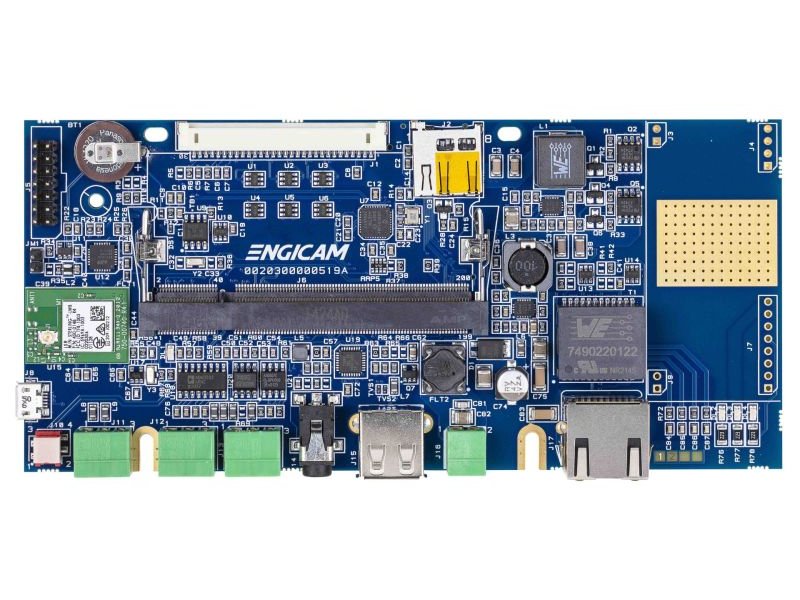

C.Touch PoE

General-purpose carrier board, compliant with our Standard EDIMM/EDIMM2.0. Based on

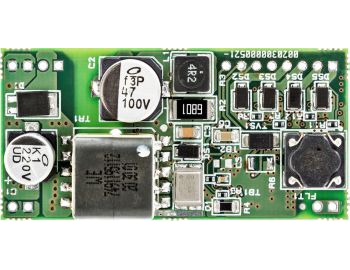

C.Touch Carrier board, this model includes PoE module to supply power to network devices via data connection.

Array
(
    [prod_feature] => Array
        (
            [prd_cpu] => CPU
            [prd_cores] => Cores
            [prd_memory] => Memory
            [prd_graphics] => Graphics
            [prd_videointerf] => Video Interfaces
            [prd_videoresol] => Video Processing Unit Capabilities
            [prd_mass_storage] => Mass Storage
            [prd_networking] => Networking
            [prd_usb] => USB
            [prd_pcie] => PCIe
            [prd_audio] => Audio
            [prd_pheriphinterf] => Peripheral Interfaces
            [prd_power_supply] => Power Supply
            [prd_sistemi_op] => Operative System
            [prd_sistemi_svil] => Development System
            [prd_operating_temp] => Operating Temperature
            [prd_dimensions] => Dimensions
            [prd_availability] => Product availability (based on processor longevity program)
            [prd_core_type] => Core Type
            [prd_manifacturer] => Manufacturer
            [prd_n_cpu] => CPU
            [prd_dram_type] => DRAM Type
            [prd_n_power_supply] => Power Supply
            [prd_n_dimensions] => Dimensions
            [prd_camera_interfaces] => Camera Interface
            [prd_num_cores] => Number Cores
            [prd_lcd_interfaces] => LCD Interfaces
            [prd_mass_storage_type] => Mass Storage Type
            [prd_npu] => NPU
            [prd_vpu] => VPU
            [prd_gpu] => GPU
            [prd_dram_size_min] => Min DRAM Size (MB)
            [prd_dram_size_max] => Max DRAM Size (MB)
            [prd_dram_speed] => DRAM Speed
            [prd_num_lan_100] => Number LAN 100
            [prd_num_lan_1000] => Number LAN 1000
            [prd_num_lan_2500] => Number LAN 2500
            [prd_num_lan_10000] => Number LAN 10.000
            [prd_num_usb_otg] => Number USB OTG
            [prd_num_usb2] => Number USB2
            [prd_num_usb3] => Number USB3
            [prd_num_pcie] => Number PCIe
            [prd_operating_temp_min] => Operating Temperature MIN
            [prd_operating_temp_max] => Operating Temperature MAX
            [prd_operating_temp_note] => Note temperatura operativa
            [prd_n_availibility] => Availibility
            [prd_mcu_type] => MCU Integrata
            [prd_n_format] => Format Specification
        )

    [anagrafiche_catalogo] => Array
        (
            [esito] => 1
            [message] =>
            [dati] => Array
                (
                    [100121] => Amplifier
                    [100119] => HP
                    [100120] => Mic
                    [100000] => ARM
                    [100001] => x86
                    [100087] => HAILO-15 ™
                    [100090] => Intel ® Raptor Lake
                    [100067] => Intel®  Tiger Lake
                    [100064] => Intel® Apollo Lake
                    [100063] => Intel® Elkhart Lake
                    [100089] => Intel®Alder Lake
                    [100096] => Intel®Amston Lake
                    [100105] => MediaTek® Genio 520/720
                    [100035] => NXP® i.MX 8M Plus
                    [100077] => NXP® i.MX 93
                    [100042] => NXP® i.MX6
                    [100045] => NXP® i.MX6UL
                    [100046] => NXP® i.MX6ULL
                    [100037] => NXP® i.MX8M MINI
                    [100040] => NXP® i.MX8X
                    [100093] => NXP® i.MX91
                    [100094] => NXP® i.MX95
                    [100044] => NXP™ i.MX 6SoloX
                    [100103] => Qualcomm Dragonwing™ IQ-615
                    [100107] => Qualcomm Dragonwing™ IQ-8275
                    [100041] => Renesas® RZ/G2E
                    [100100] => RENESAS® RZ/V2H
                    [100036] => RockChip® PX30
                    [100043] => RockChip® RK1808
                    [100091] => Rockchip® RK3568
                    [100079] => ST® STM32MP13x
                    [100038] => ST® STM32MP15x
                    [100102] => ST® STM32MP2x
                    [100080] => TI® AM62x Sitara
                    [100092] => 113x100 mm
                    [100073] => 146 x 102 mm (3.5" form factor)
                    [100083] => 155 x 160 mm
                    [100097] => 166 x 114 x 60 mm
                    [100050] => 25 x 25 mm
                    [100078] => 25 x 26 mm
                    [100101] => 35 x 55 mm
                    [100051] => 40 x 30 mm
                    [100052] => 41.5 x 81.5 mm
                    [100070] => 55 x 84 mm
                    [100047] => 67.6 x 25 mm
                    [100039] => 67.6 x 32 mm
                    [100049] => 70 x 40 mm
                    [100095] => 70 x 70 mm
                    [100048] => 82 x 50 mm
                    [100069] => 95 x 95 mm
                    [100023] => 1024
                    [100031] => 16384
                    [100025] => 2048
                    [100027] => 4096
                    [100029] => 8192
                    [100024] => 1024
                    [100032] => 16384
                    [100026] => 2048
                    [100028] => 4096
                    [100030] => 8192
                    [100007] => DDR2
                    [100008] => DDR3
                    [100065] => DDR3 or LPDDR4
                    [100009] => DDR3L
                    [100010] => DDR4
                    [100011] => LPDDR4
                    [100012] => LPDDR4X
                    [100085] => LPDDR5
                    [100108] => LPDDR5X
                    [100111] => M.2 KEY B
                    [100112] => M.2 KEY E
                    [100113] => M.2 KEY M
                    [100110] => uSD CARD
                    [100075] => Compact Type 6
                    [100055] => EDIMM
                    [100056] => EDIMM 2.0
                    [100058] => Is.IoT
                    [100057] => MicroGEA
                    [100074] => Mini Type 10
                    [100098] => Qseven
                    [100059] => SmarCore
                    [100099] => TIA Vision
                    [100061] => ULTRA_GEA
                    [100017] => DP
                    [100015] => DSI
                    [100018] => eDP
                    [100016] => HDMI
                    [100014] => LVDS
                    [100122] => MIPI-CSI
                    [100013] => Parallel RGB
                    [100118] => Dual Channel
                    [100117] => Single Channel
                    [100088] => Hailo Technologies
                    [100003] => Intel
                    [100106] => MediaTek
                    [100002] => NXP
                    [100104] => Qualcomm
                    [100006] => Renesas
                    [100005] => Rockchip
                    [100004] => ST
                    [100081] => Texas Instruments
                    [100053] => Cortex-M4
                    [100054] => Cortex-M7
                    [100076] => +10 to 24 VDC
                    [100072] => +12 to 24 VDC
                    [100068] => +12V
                    [100071] => +5 to 20 VDC
                    [100084] => +8.5 to 20 V
                    [100034] => single 3.3V
                    [100033] => single 5V
                    [100020] => EMMC
                    [100019] => NAND
                    [100021] => SATA
                    [100109] => UFS
                    [100114] => WiFi 4
                    [100115] => WiFi 5
                    [100116] => WiFi 6
                )

        )

)
1

Specifications

Operating System

Linux

Development Systems

Yocto

Features

EDIMM 2.0 CPU modules compliant
Industrial temperature range
Wide 15 to 30 Vdc single power supply
1x Ethernet 10/100
WiFi + BT
1x microSD
1x audio output
1x USB Type A
1x USB OTG device
1x CAN bus
1x RS485
1x RS232
1x RS232 for OS Console
1x expansion connector (I2C, SDIO or SPI, up to 10 GPIO) 2 x USB (Option)
1x General purpose LCD connector: 1x 18 or 24 bit single channel LVDS, 1x USB, 1 x I2C for CTP i/f, 1x PWM for backlight control, Power supply for LCD (+3V3, +5V, 12V)
1x LCD connector to drive dual ch
Size: 155.50 x 72.00 mm

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

C.Touch_PoE_Carrier_Board_Flyer.pdf 786.70K

Hardware manual

CTouchPoE.PSU_USR_Manual_1.0.0.pdf 3.22M login required
