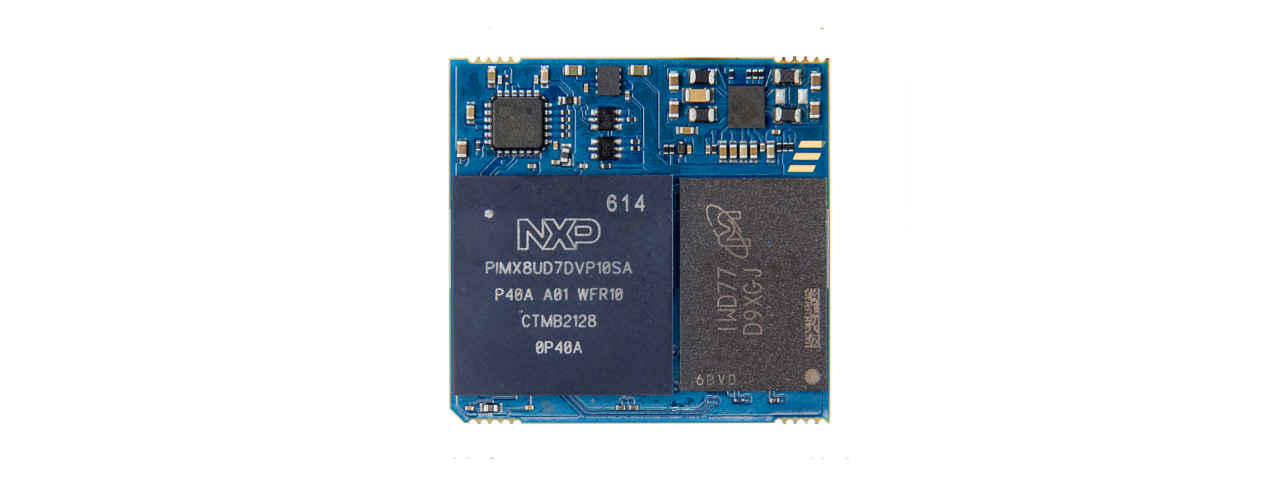

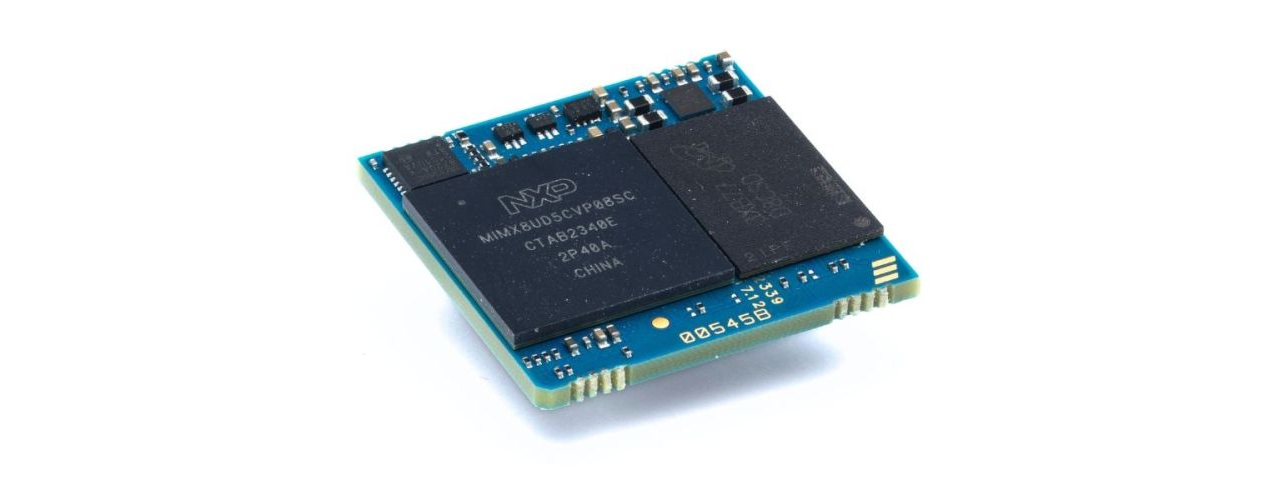

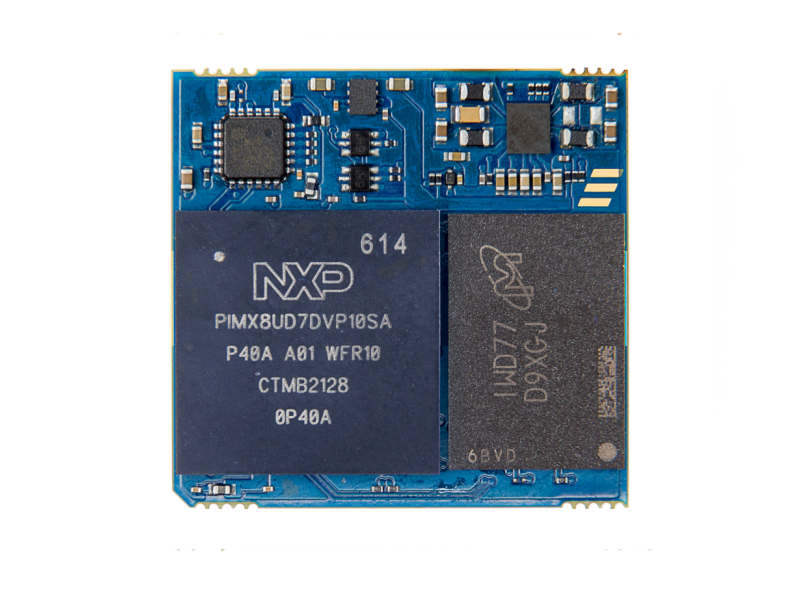

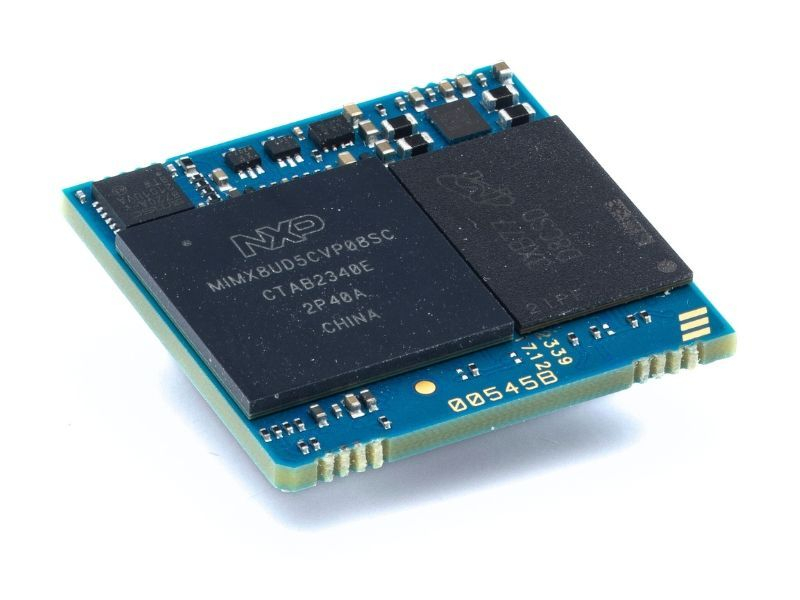

MicroGEA MX8ULP

MicroGEA MX8ULP, featuring the latest NXP® i.MX 8ULP processor boasts a robust dual-core Cortex-A35 paired with Cortex-M33, offering a high-performance solution suitable for HMI and real-time applications. Despite its compact size (25x26 mm), the module excels in ultra-low power processing, advanced integrated security, and a graphical engine.



CPU NXP® i.MX 8ULP
RAM LPDDR4X@1056MTs
GRAPHICS 3D GPU
DIMENSIONS 25 x 26 mm

Specifications

CPU

  • Manufacturer: NXP
  • GPU

Cores

  • ARM
  • Up to two Arm® Cortex®-A35 @ 1.0 GHz Arm Cortex-M33 @ 216 MHz

Memory

  • LPDDR4X@1056MTs
  • 1GB up to 2GB

Graphics & AI

  • GPU3D support for Open GL ES 3.1, Vulkan 1.1, Open CL 2.x and Open VG1.1

Mass Storage

  • Starting from 4GB eMMC drive soldered on-board

Networking

  • 1x 10/100 Ethernet

USB

  • 1x OTG
  • 1x USB2

PCIe

  • NO

Audio

  • SAI Interface

Peripheral Interfaces

  • CAN Bus, UARTs, JTAG, I2C, SPI, GPIOs

Power Supply

  • single 3.3V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 25 x 26 mm

Product availability

  • 2038
