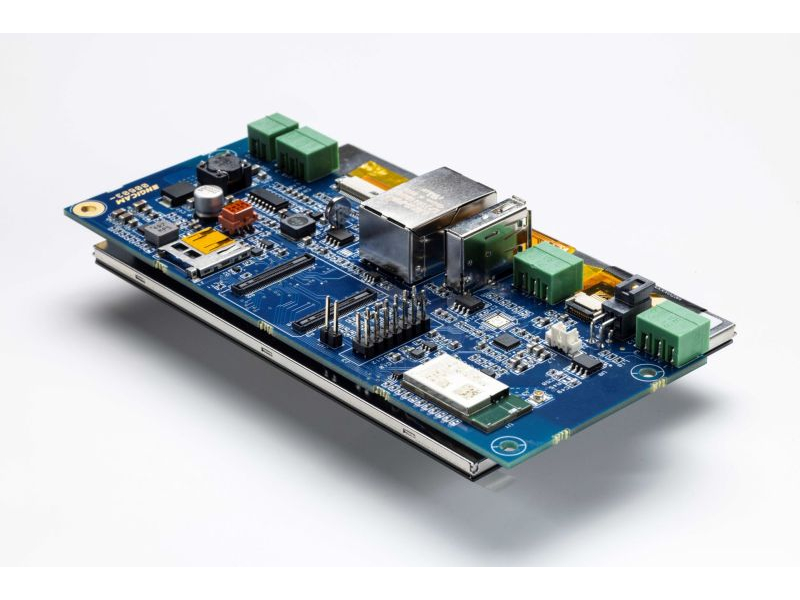

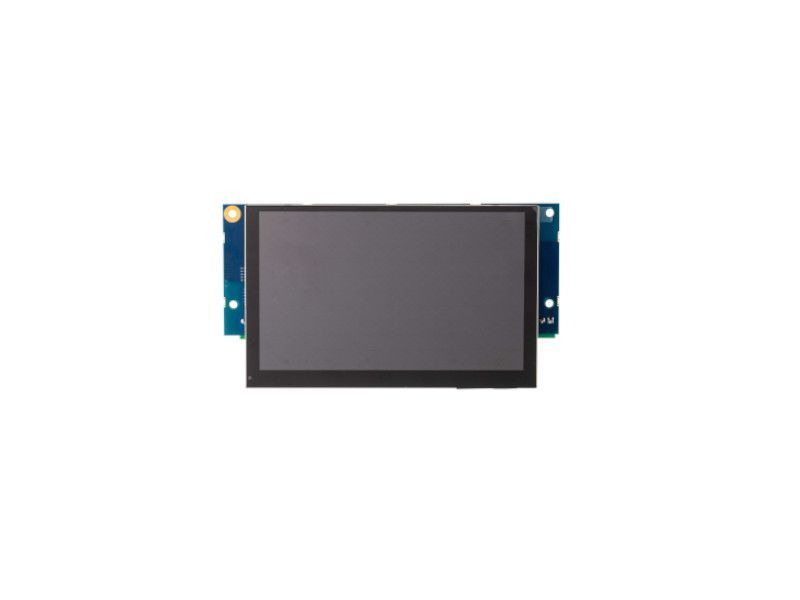

Micro Open Frame 5"

Capacitive touch screen 5” open frame MicroSOM standard.

DISPLAY Parallel RGB TFT 5" 800x480, 5:3

NETWORKING 1x 10/100 Ethernet, WiFi+BT

SERIALS 1x RS485,1x RS232(+1xOS Console)

OPERATING TEMPERATURE Industrial qualified

Specifications

Operating System

Linux

Development Systems

Yocto

Features

MicroSOM modules compliant
TFT 5"
Capacitive multi-touch display 800x480, 5:3
Wide 10 to 30 Vdc single power supply
Brightness 400 cd/mq
1x Ethernet 10/100 interface
WiFi + BT
1x microSD
1x audio output
1x USB Type A
1x CAN bus
1x RS485
1x RS232
1x RS232 for OS Console
1x strip connector (UART, GPIOs, USB 2.0, SPI, Power supply +3,3V and +5V)
LCD connector: Parallel RGB, Capacitive touch panel via I2C, 1x PWM for backlight control

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Openframe_Micro_5_Flyer.pdf 161.13K

Hardware manual

Openframe_Micro_5_Manual_1.0.3.pdf 2.28M login required

3D

This content is available for authorized users only. login required

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

Micro 5"

General purpose carrier board for MicroGEA modules

View product

Products to complete your design

MicroGEA MX6ULL

i.MX 6ULL based Micro SOM

View product

MicroGEA MX8ULP

MicroGEA MX8ULP based on the NXP® i.MX 8ULP processor

View product

MicroGEA MX91

MicroGEA module based on NXP® MX91 processor

View product

MicroGEA MX93

MicroGEA module based on NXP® MX93 processor

View product

MicroGEA STM32MP13

Micro SOM based on the latest STM32MP135

View product

MicroGEA STM32MP15

ST® STM32MP157 based Micro SOM

View product

MicroGEA STM32MP2

MicroGEA form factor based on the ST STM32MP2 processor

View product
