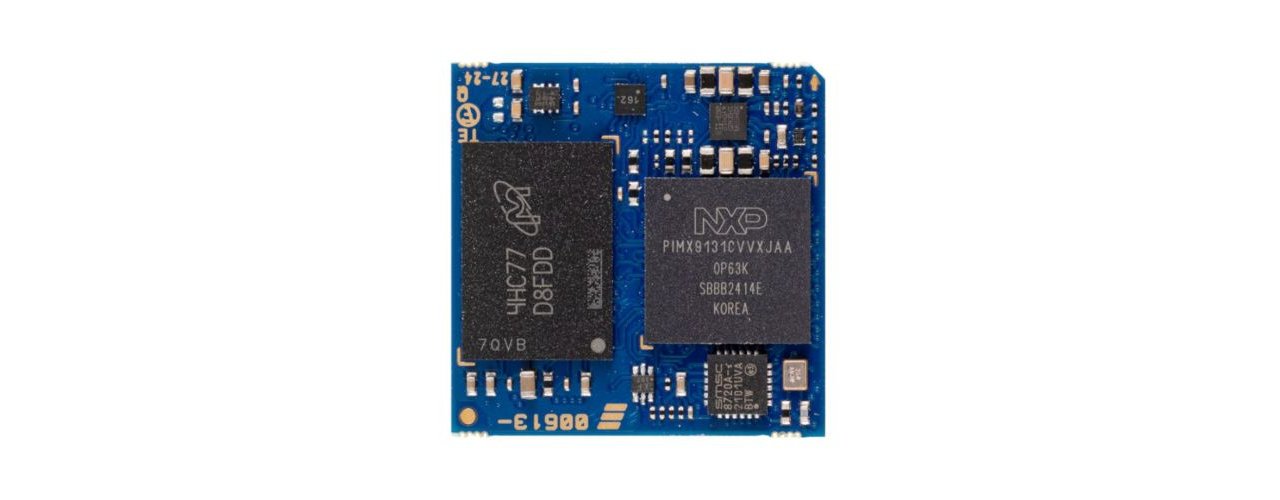

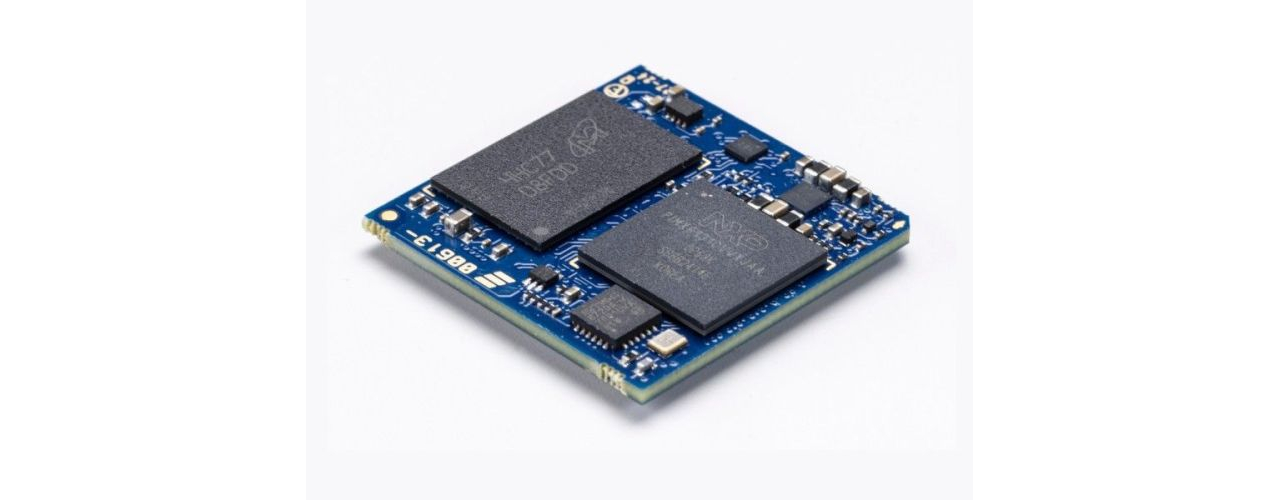

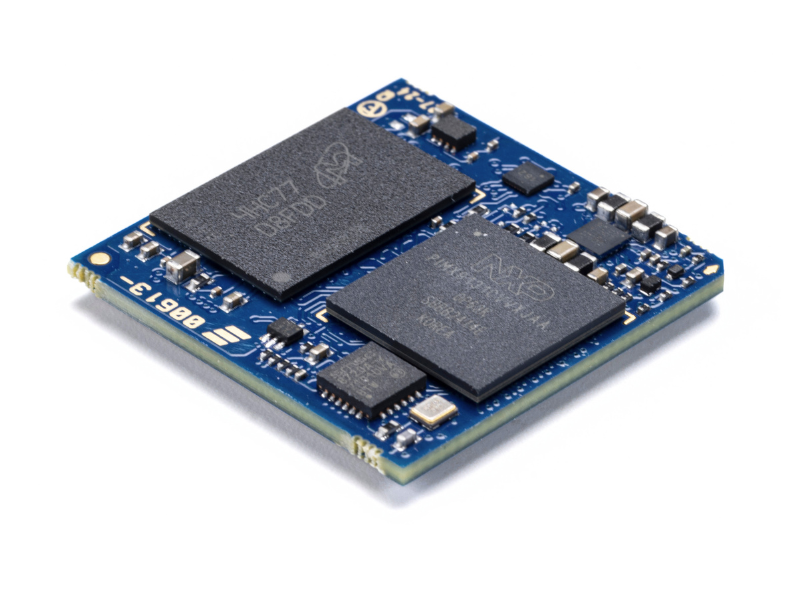

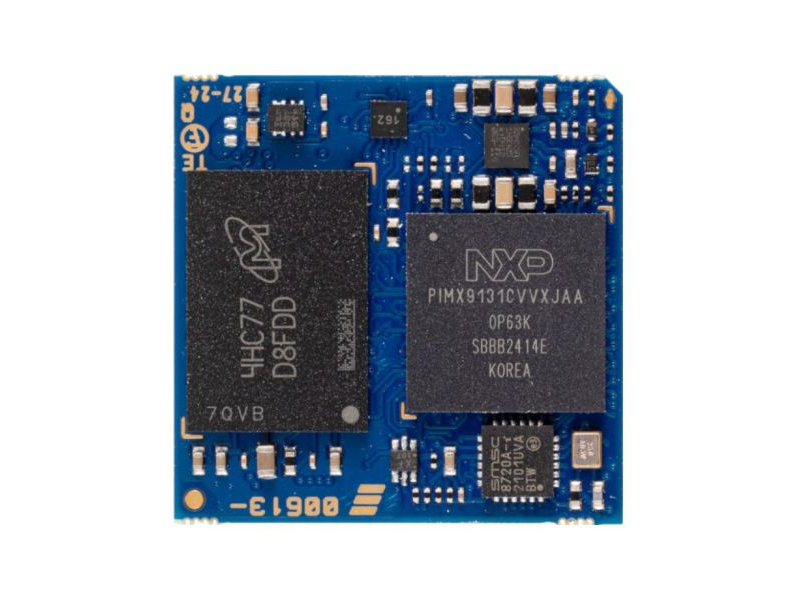

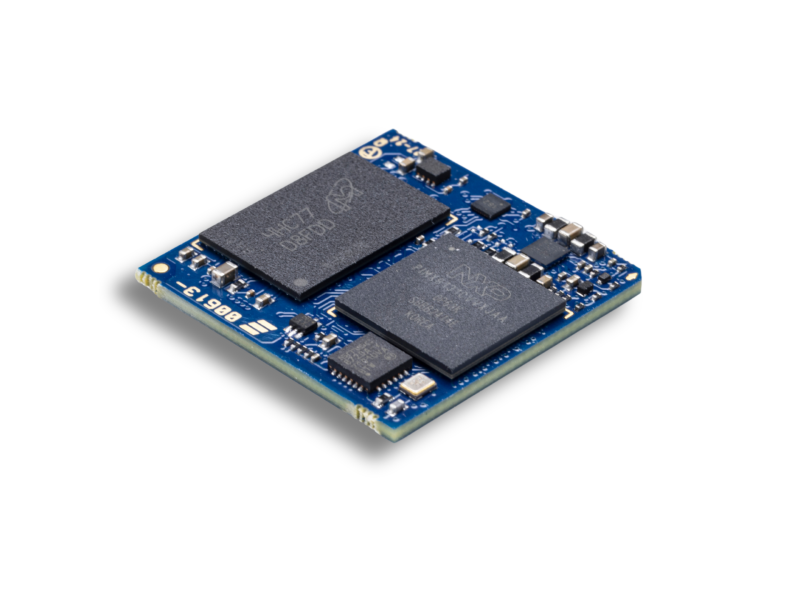

MicroGEA MX91

MicroGEA MX91 is based on the latest NXP® i.MX 91 processor.

The new module delivers ultra-low power processing and advanced integrated security in an extremely compact form.

CPU NXP® i.MX91
RAM LPDDR4@2400MTs
OPERATING TEMPERATURE -40° up to 85°
DIMENSIONS 25 x 25 mm

Specifications

CPU

  • NXP® i.MX91
  • Manufacturer: NXP

Cores

  • ARM
  • ARM® Cortex®-A55 @1.4 GHz

Memory

  • LPDDR4@2400MTs
  • 1GB up to 2GB

Mass Storage

  • Starting from 4 GB eMMC soldered on board

Networking

  • 1x 10/100 Ethernet

USB

  • 2x USB2

PCIe

  • NO

Audio

  • I2S/SAI interface

Peripheral Interfaces

  • UART, SM Bus, I2C, SPI, GPIOs, CAN, RMII

Power Supply

  • single 3.3V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 25 x 25 mm

Product availability

  • 2040

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Errata

  • Errata_for_MicroGEA_MX91_Engineering_Sample.pdf 80.03K

Fact Sheet

Hardware manual

BSP

3D
