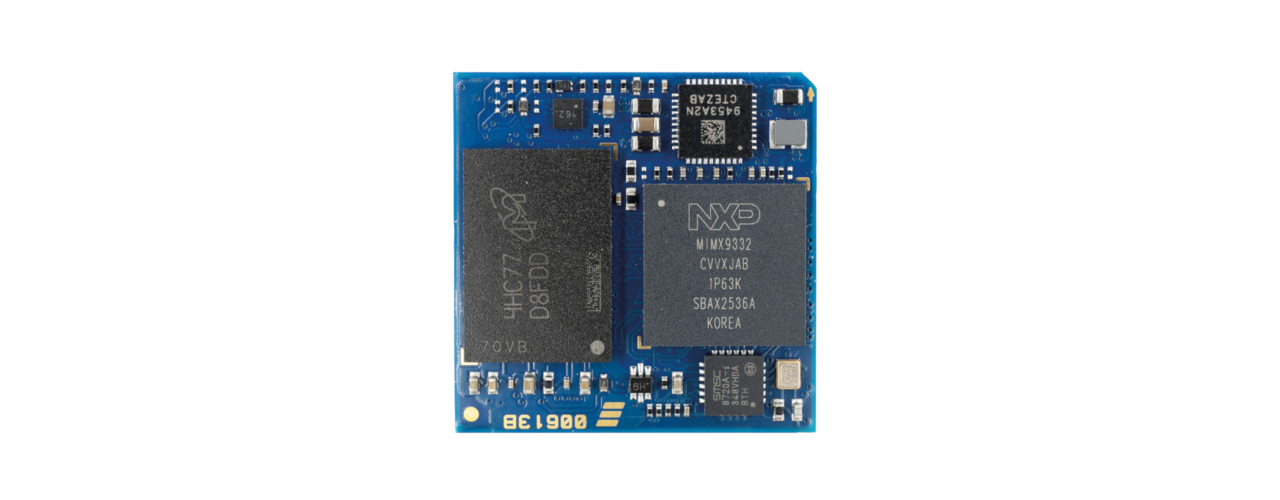

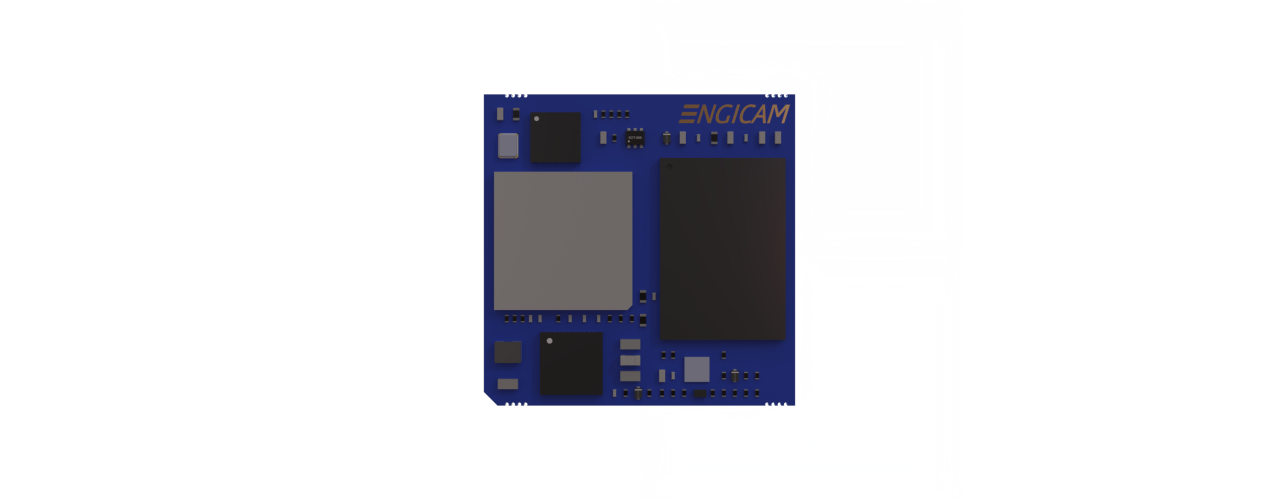

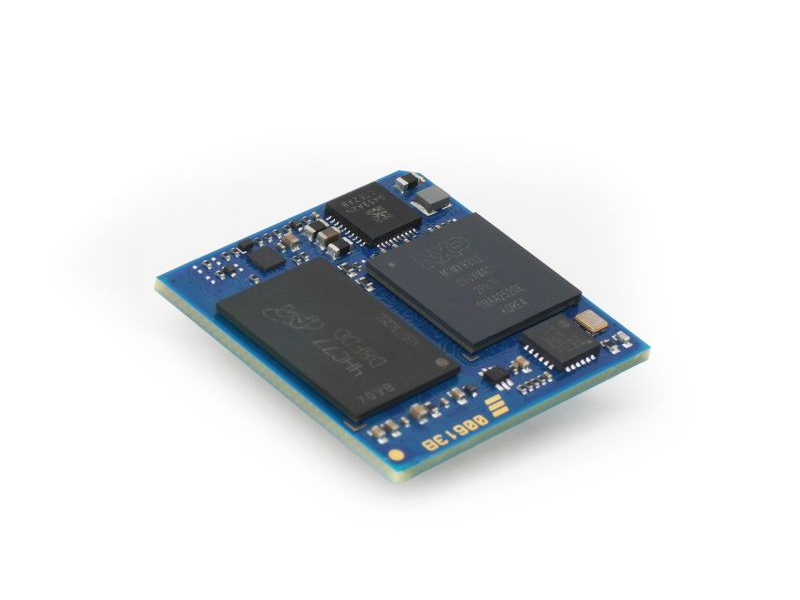

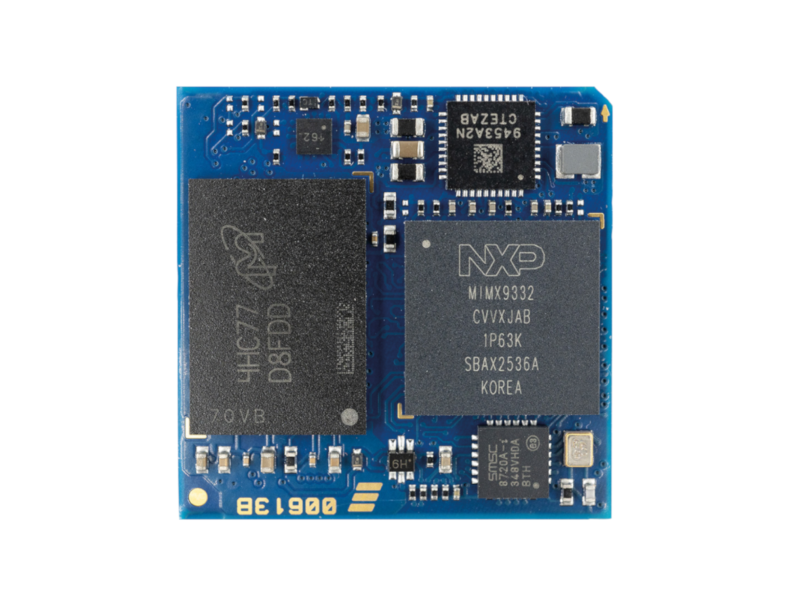

MicroGEA MX93

MicroGEA MX93 is based on NXP® i.MX 93 processor. The module is equipped with Arm Cortex®-A55 @ up to 1.7 GHz processor with Arm® Ethos™ U-65 microNPU. MicroGEA MX93 includes industrial features and temperature for ML acceleration, power efficiency, and robust security in an extremely compact form.

CPU NXP® i.MX 93
RAM LPDDR4X@3700MTs
DIMENSIONS 25 x 25 mm

Specifications

CPU

  • Manufacturer NXP
  • Processor Family i.MX 93
  • Architecture ARM
  • Cores 2
  • Cores description Arm® Cortex®-A55
  • Frequency Up to 1.7 GHz
  • Integrated MCU Cortex-M33

MEMORY

  • RAM Type LPDDR4X
  • RAM Frequency 3700 MT/s
  • RAM Size up to 2 GB
  • STORAGE on board Starting from 4 GB eMMC

AI ACCELERATOR

  • NPU Arm® Ethos U-65 microNPU
  • NPU Capabilities Up to 1 TOPS

GRAPHICS

  • Other Hardware Compositor for Blending/Composition, Resize, Color Space Conversion

VIDEO

  • LVDS Channels Single
  • Parallel RGB

USB

  • USB2 1
  • USB OTG 1

NETWORKING

  • LAN PHY 1x 10/100 Megabit Ethernet

PERIPHERAL INTERFACES

  • UART 4 (up to 8)
  • I2C 2 (up to 7)
  • SPI 1 (up to 8)
  • CAN 1 (up to 2)
  • SDIO 2
  • GPIOs
  • Audio I2S/SAI i/f (up to 3)
  • Other SM Bus

OPERATING SYSTEM

  • Linux Yocto

GENERAL

  • Form Factor MicroGEA
  • Dimensions 25 x 25 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to +85°C
  • Availability 2038
