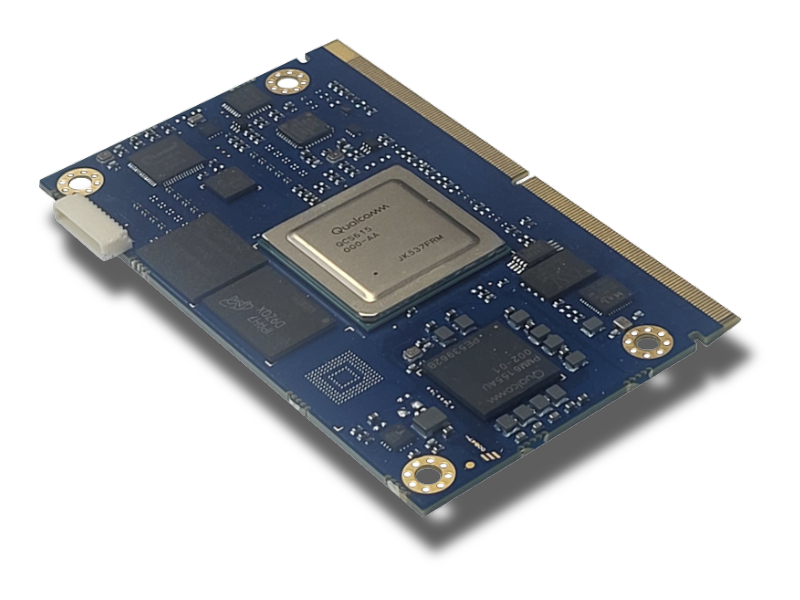

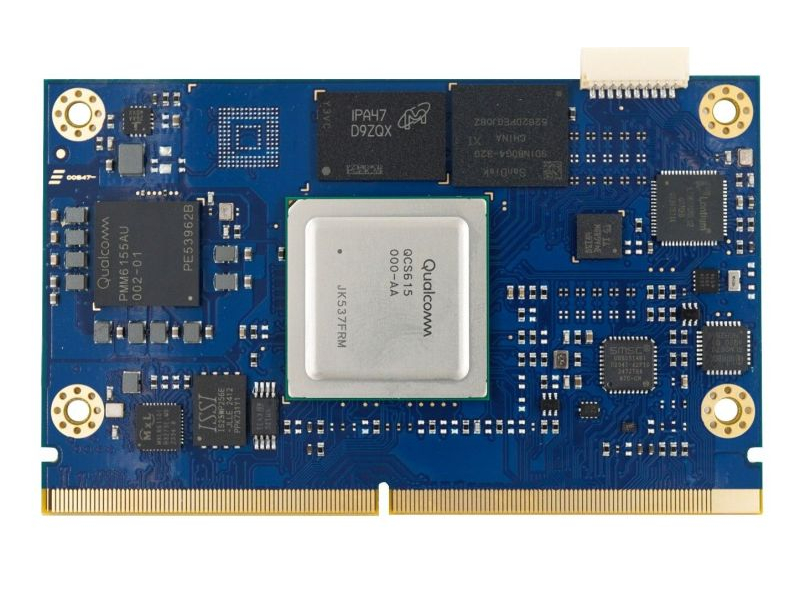

SmarCore iQ6

Industrial-grade features with advanced camera, AI, and advanced compute performance at low-power.

Specifications

CPU

  • Manufacturer Qualcomm
  • Processor Family Dragonwing™ IQ-615
  • Architecture ARM
  • Cores 8
  • Cores description 2x Kryo Gold, 6x Kryo Silver
  • Frequency Up to 1.9GHz

MEMORY

  • RAM Type LPDDR4X
  • RAM Frequency 3110 MT/s
  • RAM Size Up to 8 GB
  • STORAGE on board Starting from 8 GB eMMC, UFS, SPINOR

GRAPHICS

  • GPU Adreno™ 612
  • Features OpenGL ® ES 3.2, Vulkan ®, DirectX 12, OpenCL 2.0

VIDEO

  • HDMI
  • DP
  • eDP
  • LVDS Channels Dual
  • MIPI-DSI 1x 4-lane
  • MIPI-CSI 2x 2,4-lane

VIDEO PROCESSING

  • Decoder Support Up to 4K60 H.265/H.264/VP9/ VP8/ MPEG-2
  • Encoder Support Up to 1080p60 H.265/H.264/ VP8

USB

  • USB2 4
  • USB3 1

PCIe

  • Generation Gen2
  • Number 1
  • Aggregations 1x 1-lane

NETWORKING

  • LAN PHY 1x Gigabit Ethernet

PERIPHERAL INTERFACES

  • UART 4
  • I2C 6
  • SPI 2
  • SDIO 1
  • GPIOs
  • Audio 3x I2S i/f
  • Other JTAG connector (option), TPM (option)

OPERATING SYSTEM

  • Linux Yocto

GENERAL

  • Form Factor SmarCore
  • Dimensions 82 x 50 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to +85°C
  • Availability 2038
