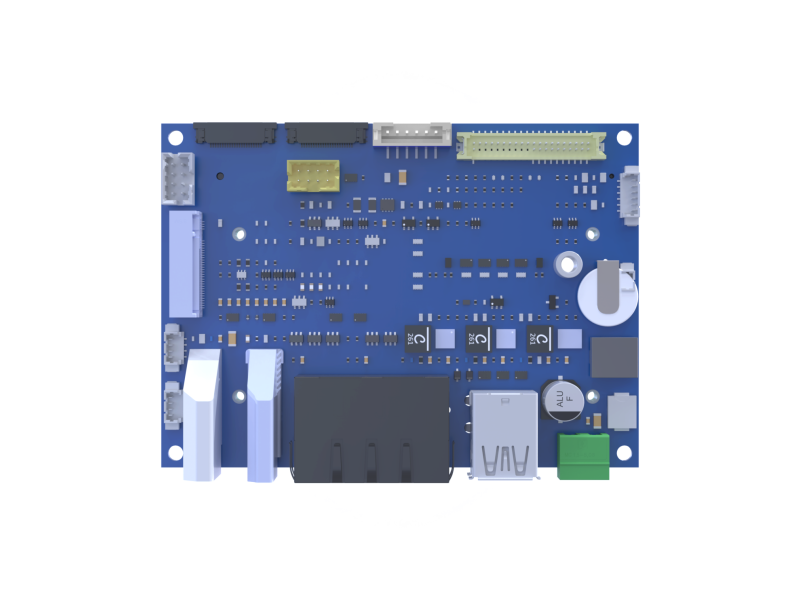

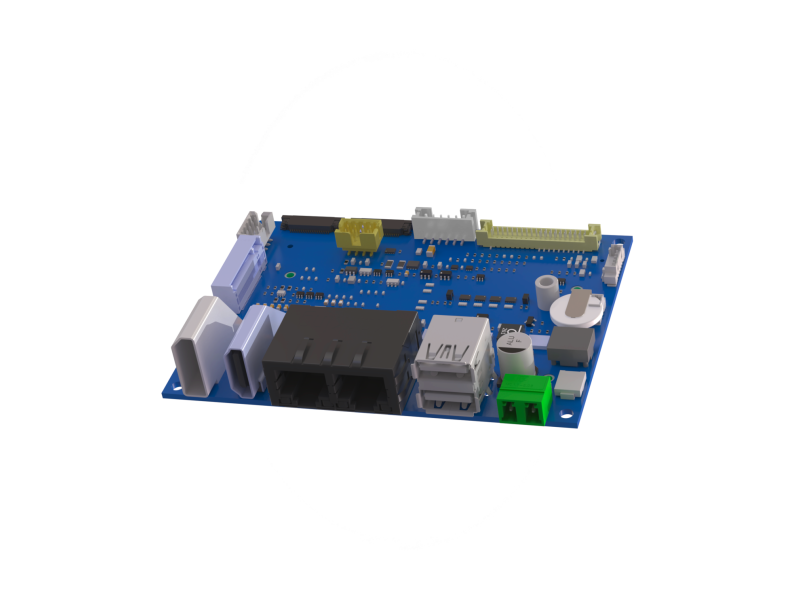

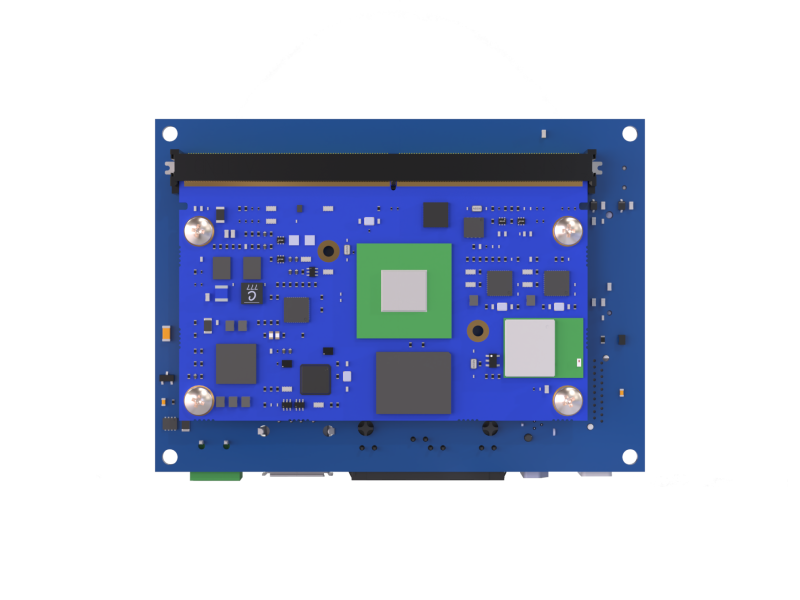

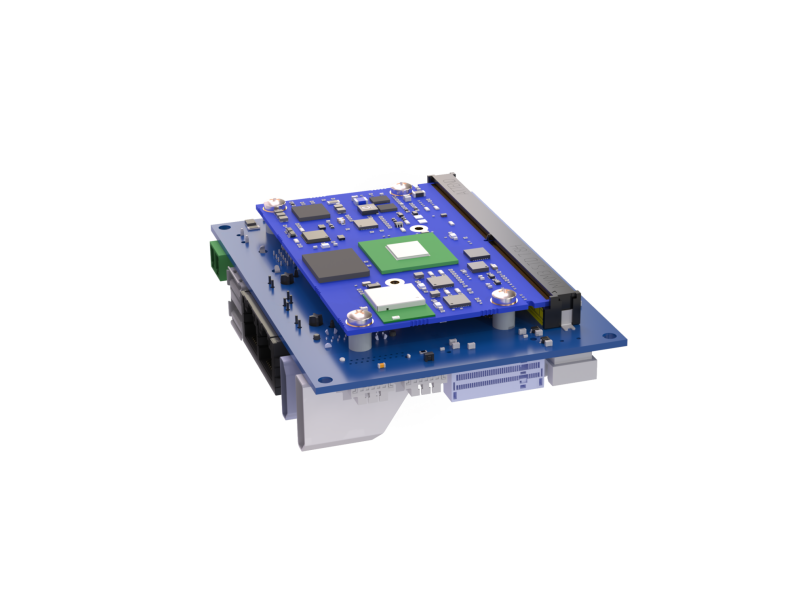

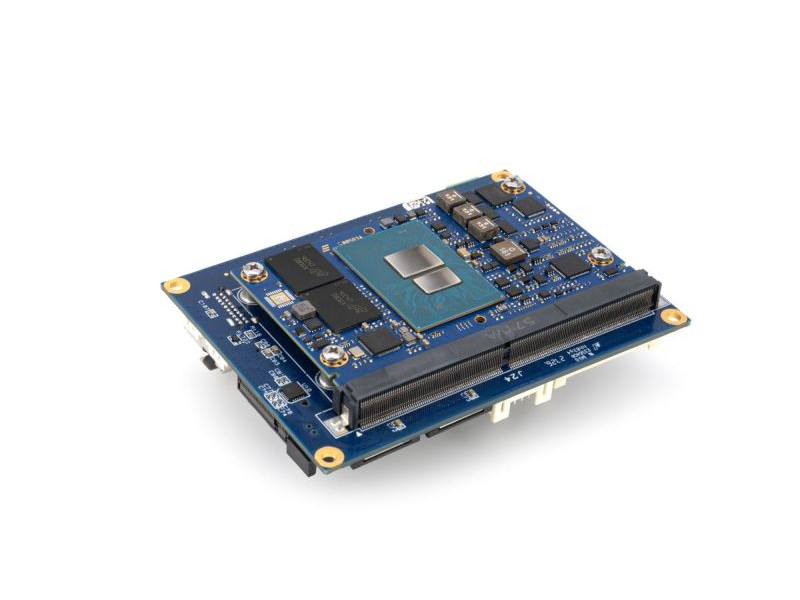

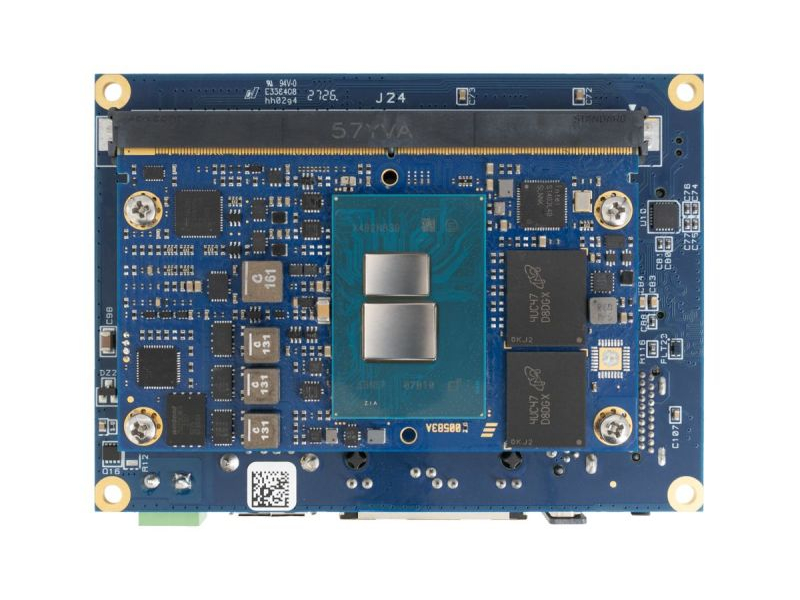

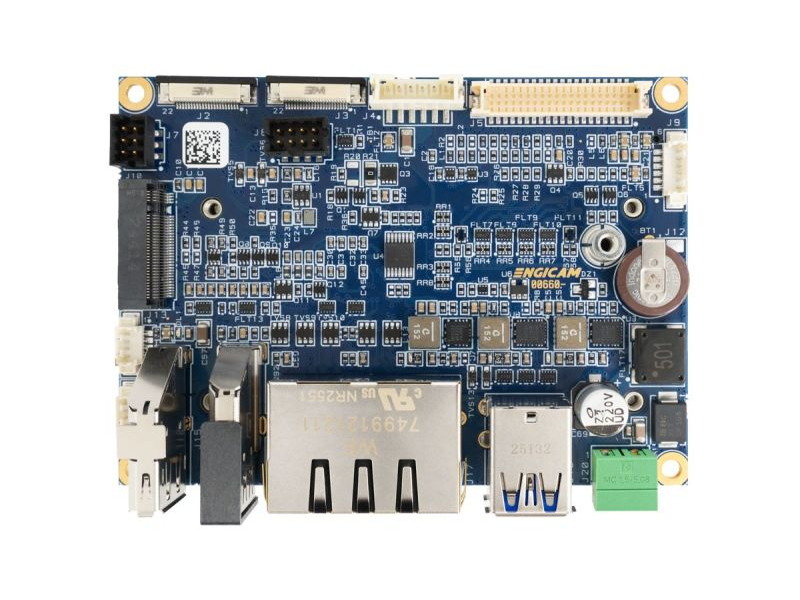

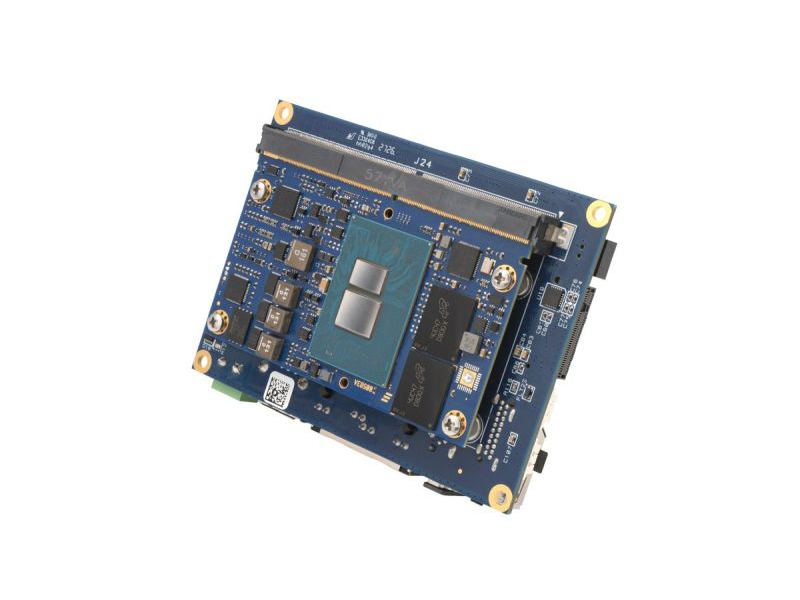

Pico.Board

Powerful 2.5” form factor, general purpose carrier board, compliant with ENGICAM Standard SmarCore SOM. The Pico.Board includes several peripherals and a dedicated slot for AI accelerator modules. The possibility to choose the SOM and different mounting option bring large flexibility in different applications

Form Factor 2.5"

AI ACCELERATOR M.2 Key M slot

NETWORKING 2x Gb Ethernet Interfaces

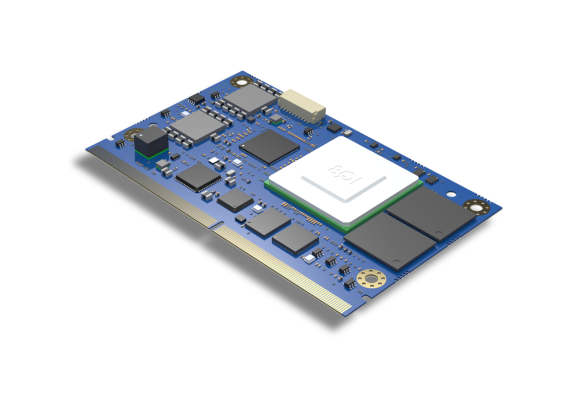

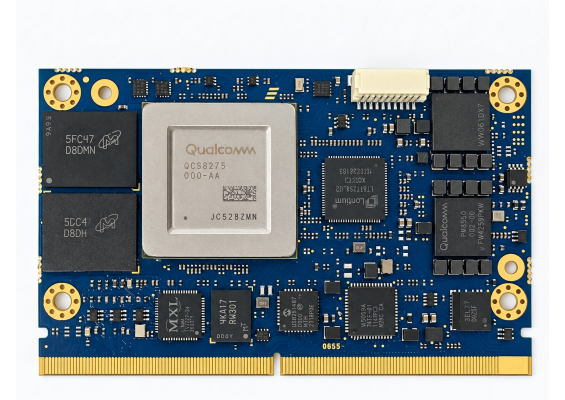

COMPATIBILITY Standard SmarCore SOMs

+ 12 - 24 VDC Power supply
M.2 Key M slot for AI accelerator
1 x HDMI interface, DisplayPort interface, General-purpose LCD connector: up to 24-bit single-channel LVDS, Capacitive touch panel via USB, 1x PWM for backlight control, Power supply for LCD (+3V3, +5V, 12V)
2x Gb Ethernet Interfaces
2 x USB 3.0 Type A, 2 x USB 2.0 on AUX connector
2x UART RS232, 2x MIPI Camera Interface, I2C, GPIOs
Operating temperature: industrial Qualified
