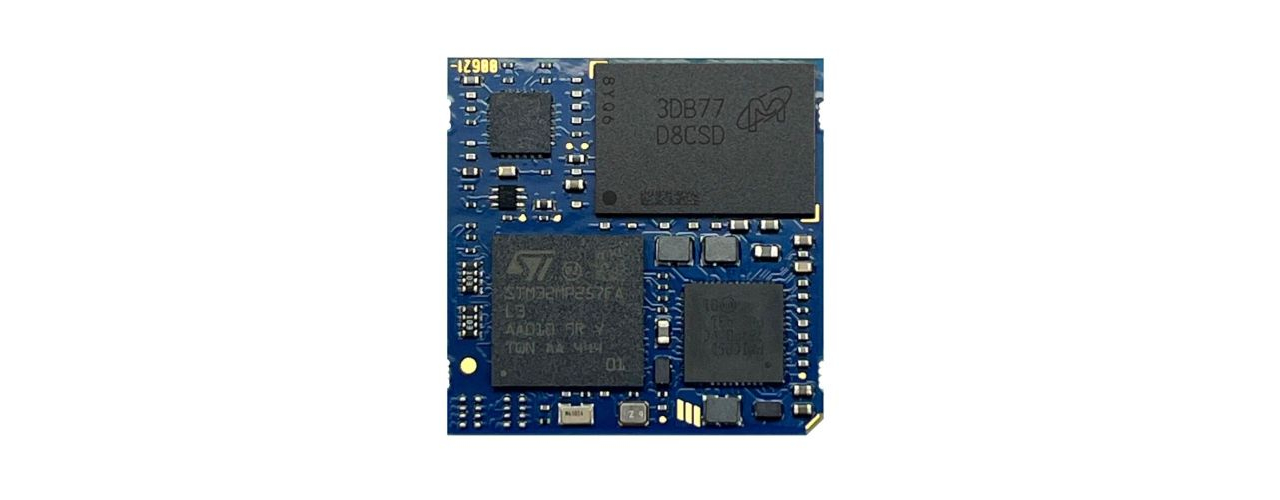

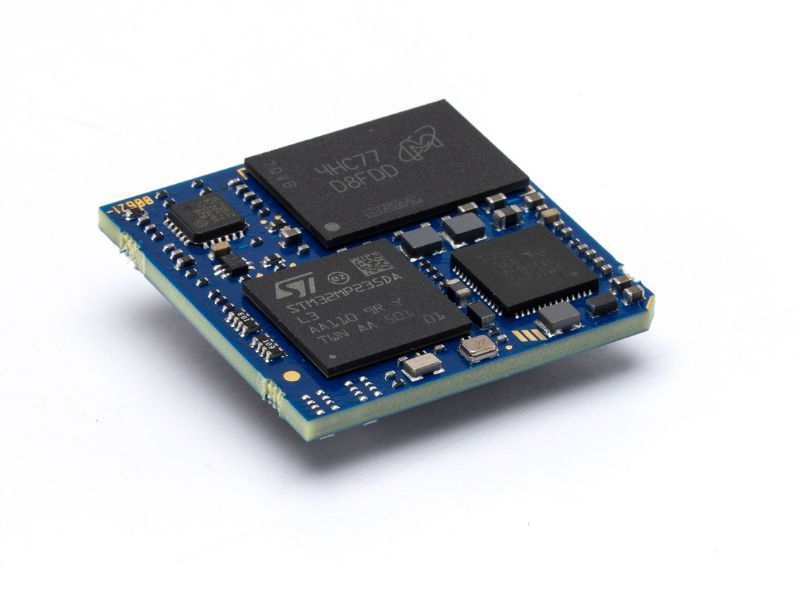

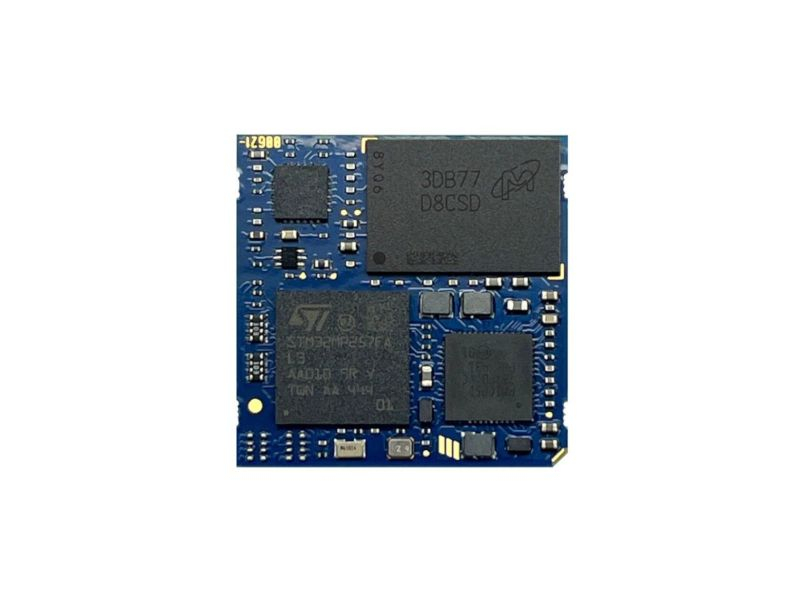

MicroGEA STM32MP2

MicroGEA STM32MP2 is designed around the Next-gen STM32 MPUs by Microprocessors STM32MP25x, 23x, 21x, featuring NPU at 1.35 TOPS and 3D GPU  for secure Industry 4.0 and advanced edge computing applications in a compact form factor.





CPU ST® STM32MP2x
RAM LPDDR4@2400MTs
AI CAPABILITIES 1.35 TOPS
DIMENSIONS 25 x 25 mm

Specifications

CPU

  • Manufacturer ST
  • Processor Family STM32MP2x
  • Architecture ARM
  • Cores 1, 2
  • Cores description Single or dual Arm® Cortex-A35
  • Frequency Up to 1.5 GHz
  • Integrated MCU Cortex-M33

MEMORY

  • RAM Type LPDDR4
  • RAM Frequency 2400 MT/s
  • RAM Size Up to 2 GB
  • STORAGE on board Starting form 8 GB eMMC drive

AI ACCELERATOR

  • NPU VeriSilicon® GC8000UL
  • NPU Capabilities 1.35 TOPS

GRAPHICS

  • GPU VeriSilicon® GC8000UL -Up to 900 MHz
  • Features OpenGL® ES 3.2.8; Vulkan 1.2; OpenCL™ 3.0, OpenVX™ 1.3
  • Other Up to 150 Mtriangle/s, 900 Mpixel/s

VIDEO

  • LVDS Channels Single
  • MIPI-DSI 1x 4-lane
  • Parallel RGB

VIDEO PROCESSING

  • Decoder Support 1080p60 HEVC (h.264, VP8)
  • Encoder Support 1080p60 HEVC (h.264, VP8)

USB

  • USB2 2

PCIe

  • PCIe NO

NETWORKING

  • LAN PHY 1x 10/100 Megabit Ethernet
  • MAC Interface 1x RMII interface

PERIPHERAL INTERFACES

  • UART 4 (up to 10)
  • I2C 2 (up to 7)
  • SPI 1 (up to 8)
  • CAN 2 (up to 3)
  • SDIO 2
  • GPIOs
  • Audio 1x I2S (up to 4)
  • Other JTAG, PWMs, ADC

OPERATING SYSTEM

  • Linux Yocto

GENERAL

  • Form Factor MicroGEA
  • Dimensions 25 x 25 mm
  • Power Supply single 5V
  • Operational Temperature Up to -40°C /+85°C
  • Availability 2036

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Errata

  • ERRATA_MicroGEA_STM32MP2_Engineering_Sample_REV2.pdf 83.10K

Fact Sheet

Hardware manual

BSP

3D

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

MicroDev 2.0

Available with CAN Bus and LTE interfaces.

View product

MicroDev 3.0

MicroDev 3.0 based on MicroGEA modules

View product

MicroTouch

Carrier board for MicroGEA modules

View product

Products to complete your design

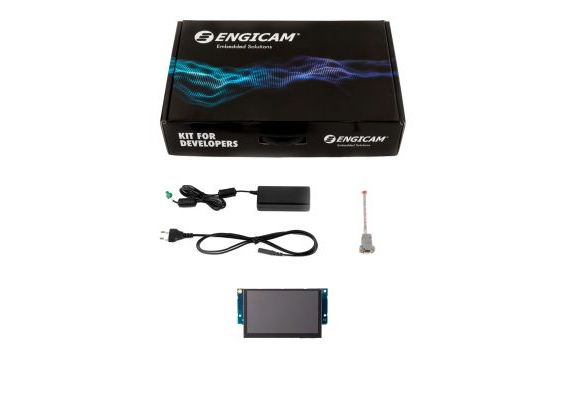

MicroGEA Capacitive Starter Kit 5"
