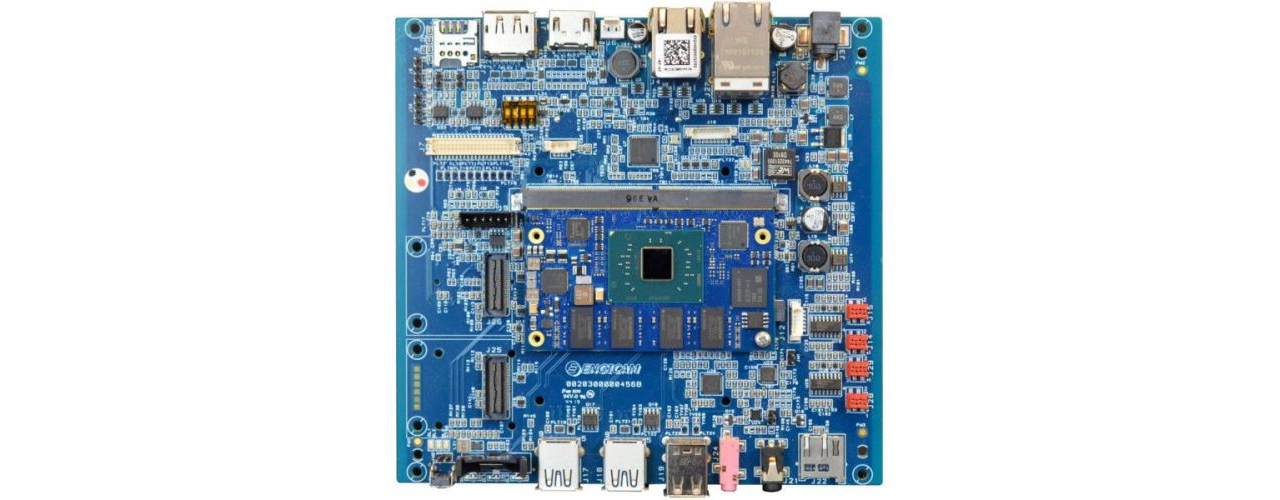

General purpose carrier board Compliant with standard SMARC Interface

General purpose carrier board Compliant with ENGICAM SMARC 2.1, suitable for Audio - Video application (resolution up to 4K) available with two M2.0 slots for modules WiFi and SSD, HDMI, USB 3.0, MIPI CSI.

Operating Systems

Linux Android Windows
  • SMARCORE 2.1 family compliant
  • Industrial temperature range
  • 15-30 Vdc single power supply
  • 1 x HDMI interface up to 4K
  • 1 x LVDS interfaceup to FULL HD
  • 1 x DP interface up to 4K
  • 2 x MIPI CSI interface
  • 1 x Stereo Audio interrface
  • 3 x Gb Ethernet
  • 2 x USB3.0
  • 2 x USB2.0
  • 1 x microSD
  • 1 x RS485
  • 4 x RS232
  • 2 x CAN Bus
  • 1 x Mini PCIe Interface
  • 1 x SATA interface
  • Size: 160 x 155 mm
