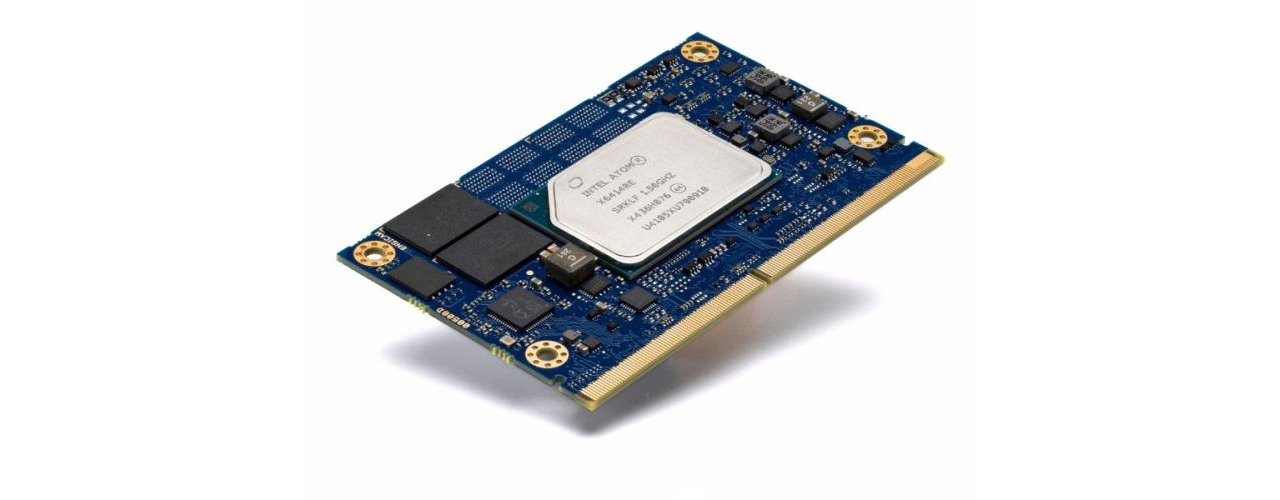

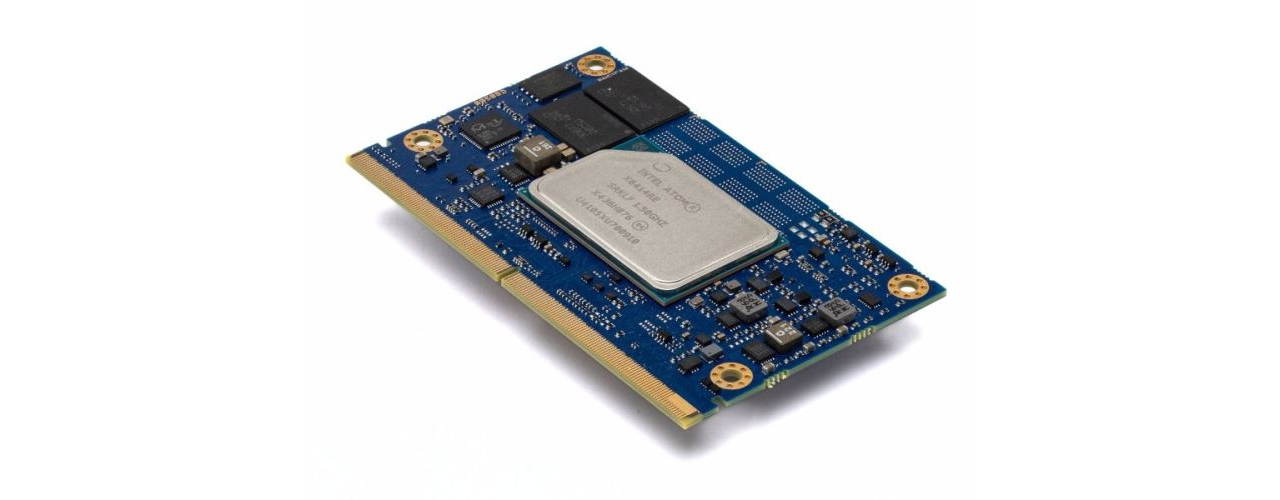

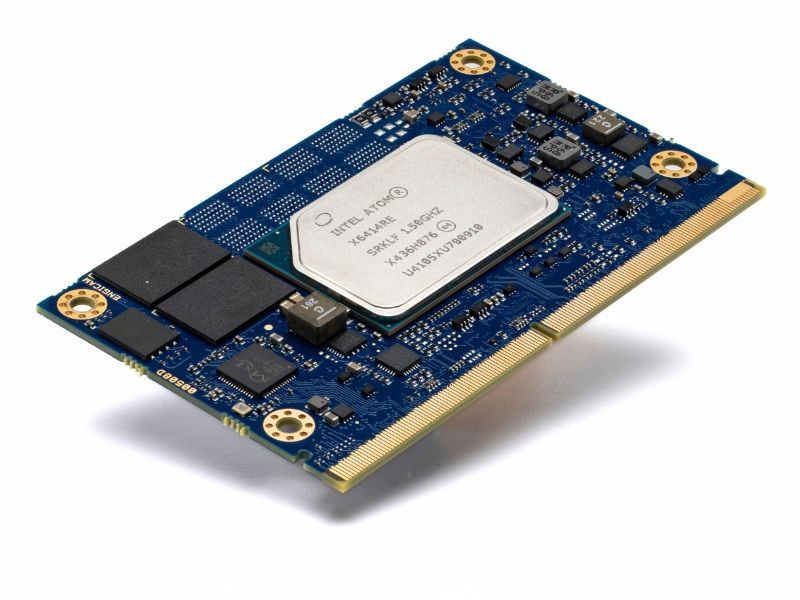

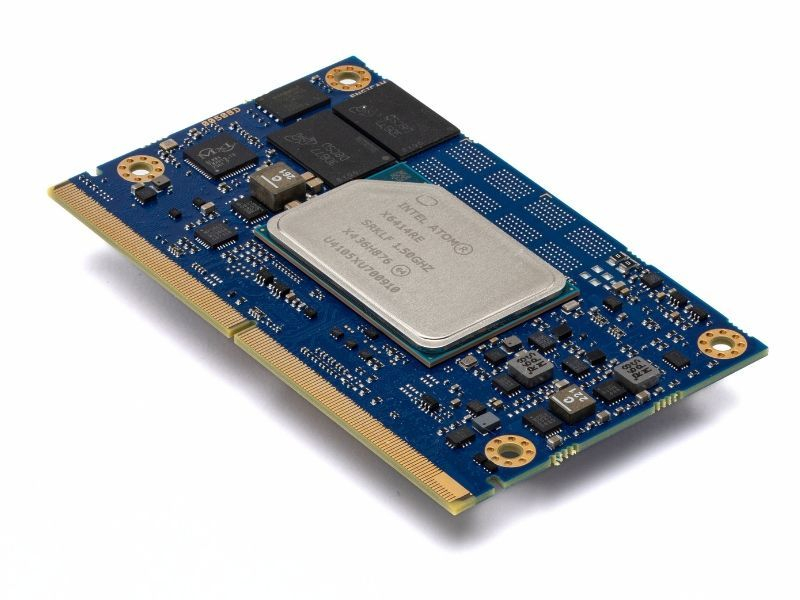

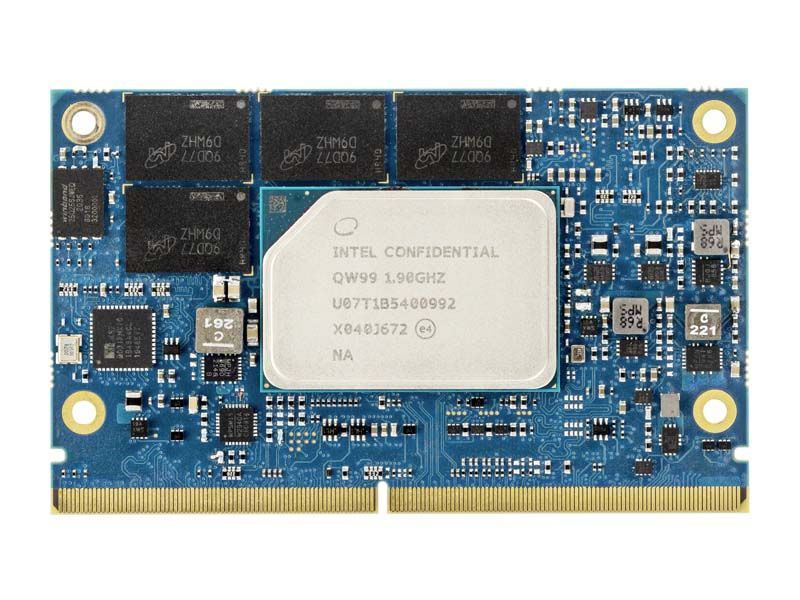

SmarCore EHL



This Engicam’s SMARC standard module is based on Intel® processors ELKHART LAKE series ATOM® x6000E.

The module is built on new levels of CPU and graphics performance and it integrates IoT features, real-time performance, manageability, security, and functional safety.



CPU Intel® Elkhart Lake
RAM LPDDR4@3733MTs
DIMENSIONS Standard SMARC short size

Specifications

CPU

  • Manufacturer Intel
  • Processor Family Elkhart Lake
  • Architecture x86
  • Cores 2, 4
  • Cores description Intel Atom x6000 Series
  • Frequency Up to 1.9 GHz

MEMORY

  • RAM Type LPDDR4
  • RAM Frequency 3733 MT/s
  • RAM Size 4 GB up to 16 GB
  • STORAGE on board Starting from 4GB eMMC

GRAPHICS

  • GPU Intel® 11th generation (Gen 11) LP graphics controller
  • Features DirectX 12.1 compliant, OpenGL ES 3.1/3.0/2.0/1.1, OpenGL 4.5 supported,OpenCL™ 1.2, Vulkan 1.0 APIs,Dedicated FIVR for Graphics
  • Other Intel® Virtualization Technology for Directed I/O (VT-d)

VIDEO

  • HDMI
  • DP
  • eDP
  • LVDS Channels Dual

VIDEO PROCESSING

  • Decoder Support HEVC/H.265, H.264, VP9, VP8, WMV9/VC1, MPEG-2, VC-1. JPEG/MJPEG
  • Encoder Support HEVC/H.265, H.264, VP9, JPEG/MJPEG

USB

  • USB2 3
  • USB3 2
  • USB OTG 1

PCIe

  • Generation Gen3
  • Number 4
  • Aggregations 1x 4-lane

NETWORKING

  • LAN PHY 2x Gigabit Ethernet

PERIPHERAL INTERFACES

  • UART 4
  • I2C 4
  • SPI 2
  • CAN 2
  • SDIO 1
  • GPIOs
  • Audio I2S, HDA
  • Other JTAG

OPERATING SYSTEM

  • Linux Ubuntu
  • Windows

GENERAL

  • Form Factor Smarc Short Size
  • Dimensions 82 x 50 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to +85°C
  • Availability 2031
