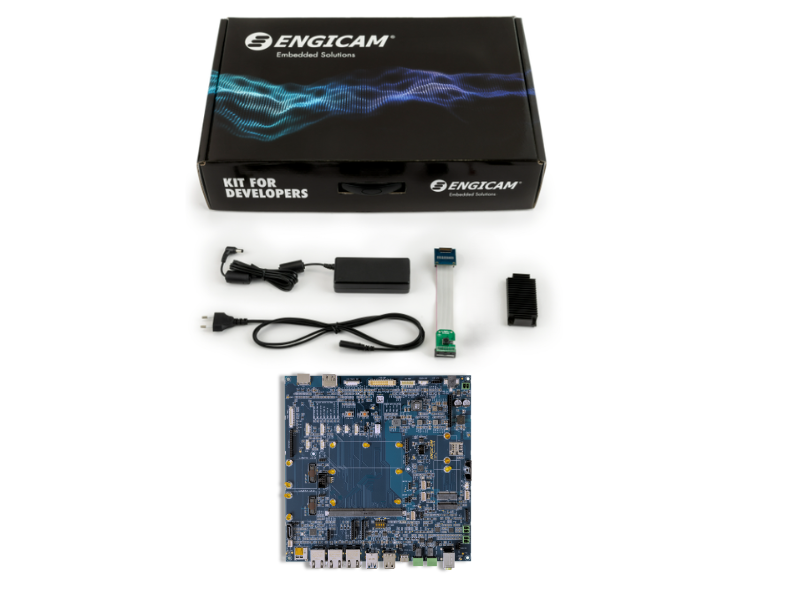

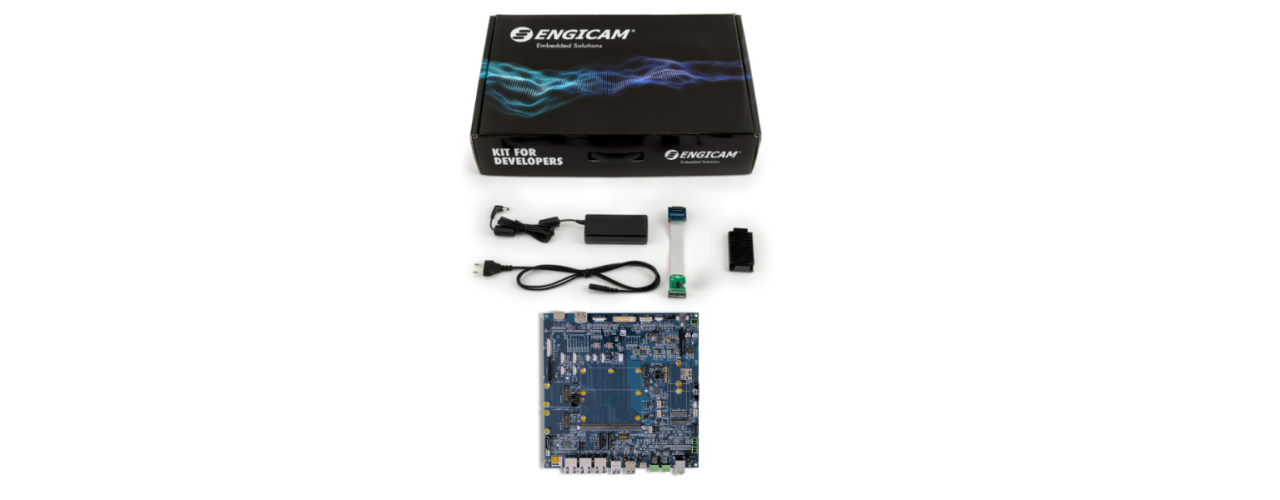

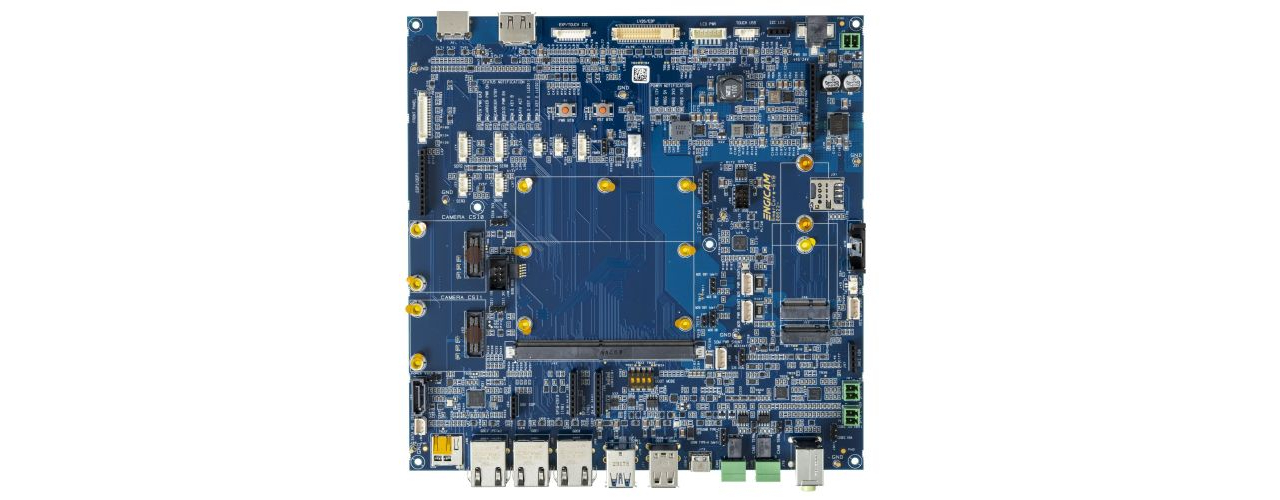

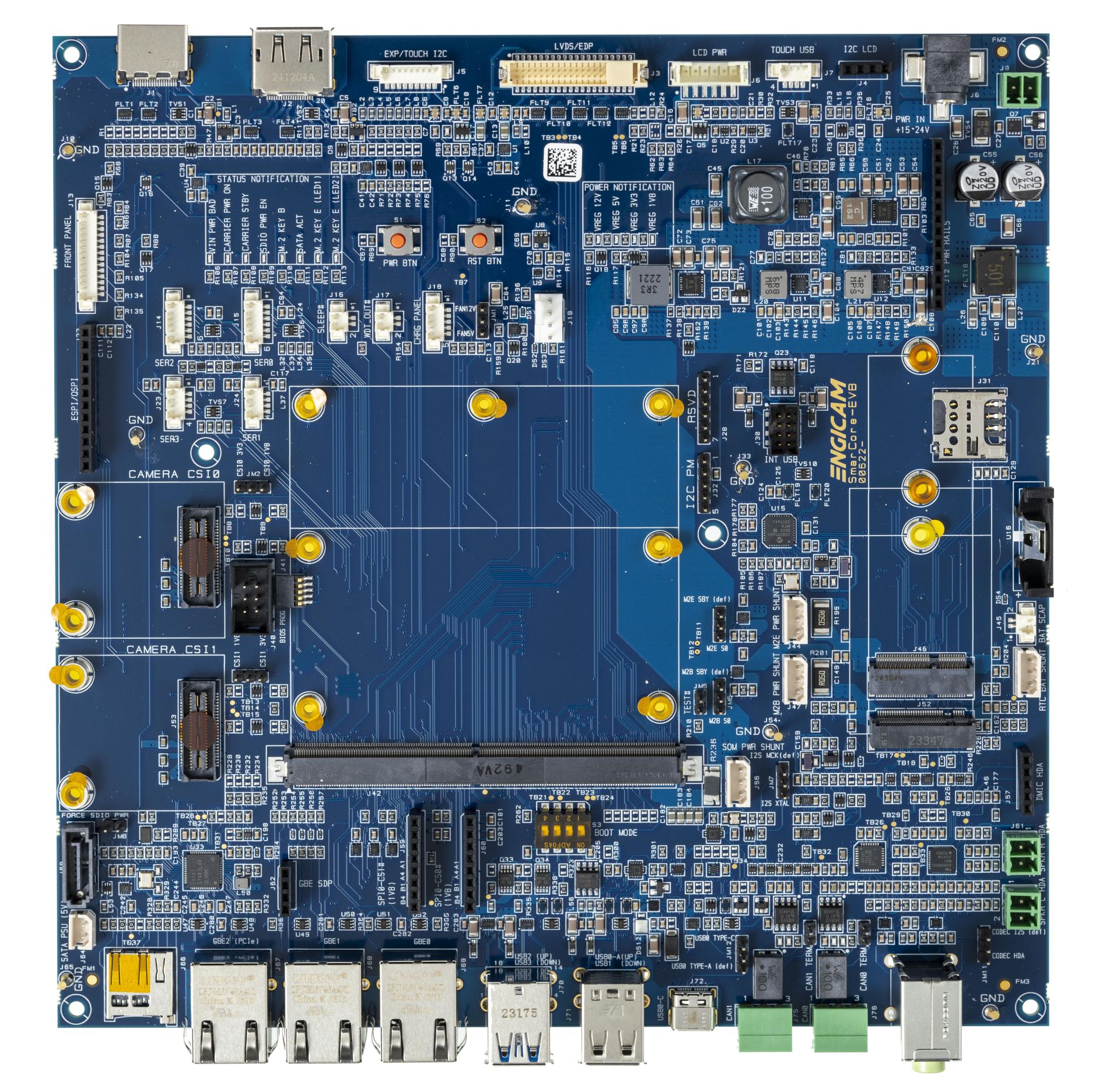

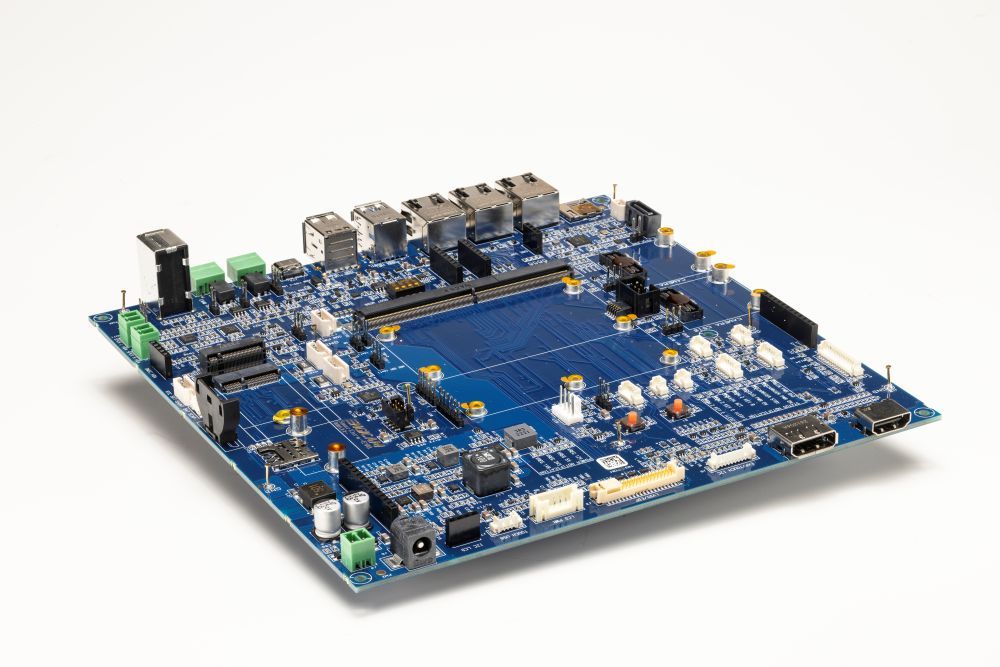

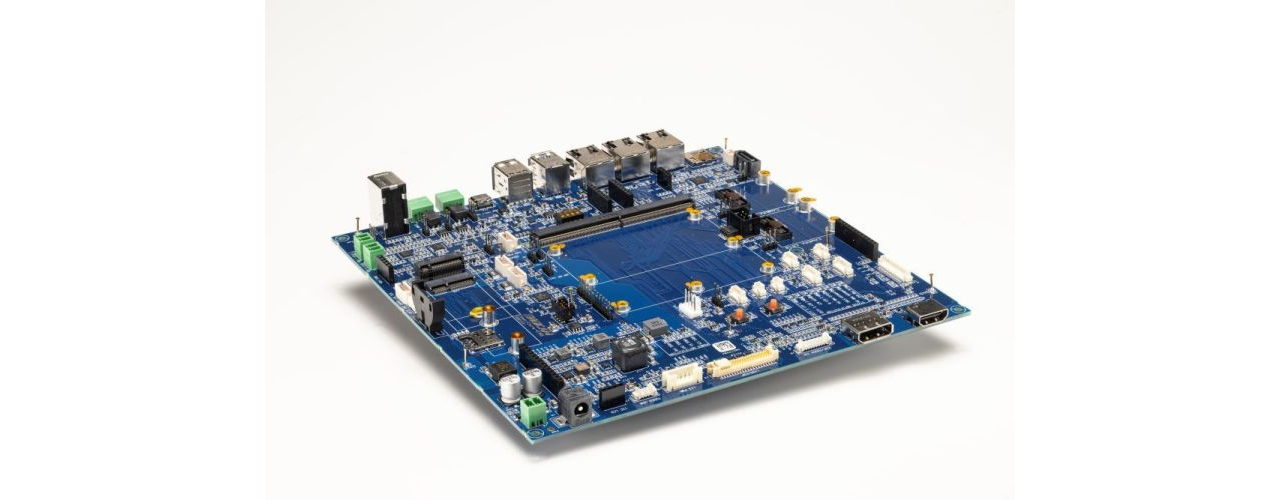

SmarCore Form Factor Capacitive Evaluation Board

SmarCore standard 2.x compliant evaluation board

Operating Systems

Linux Android Windows

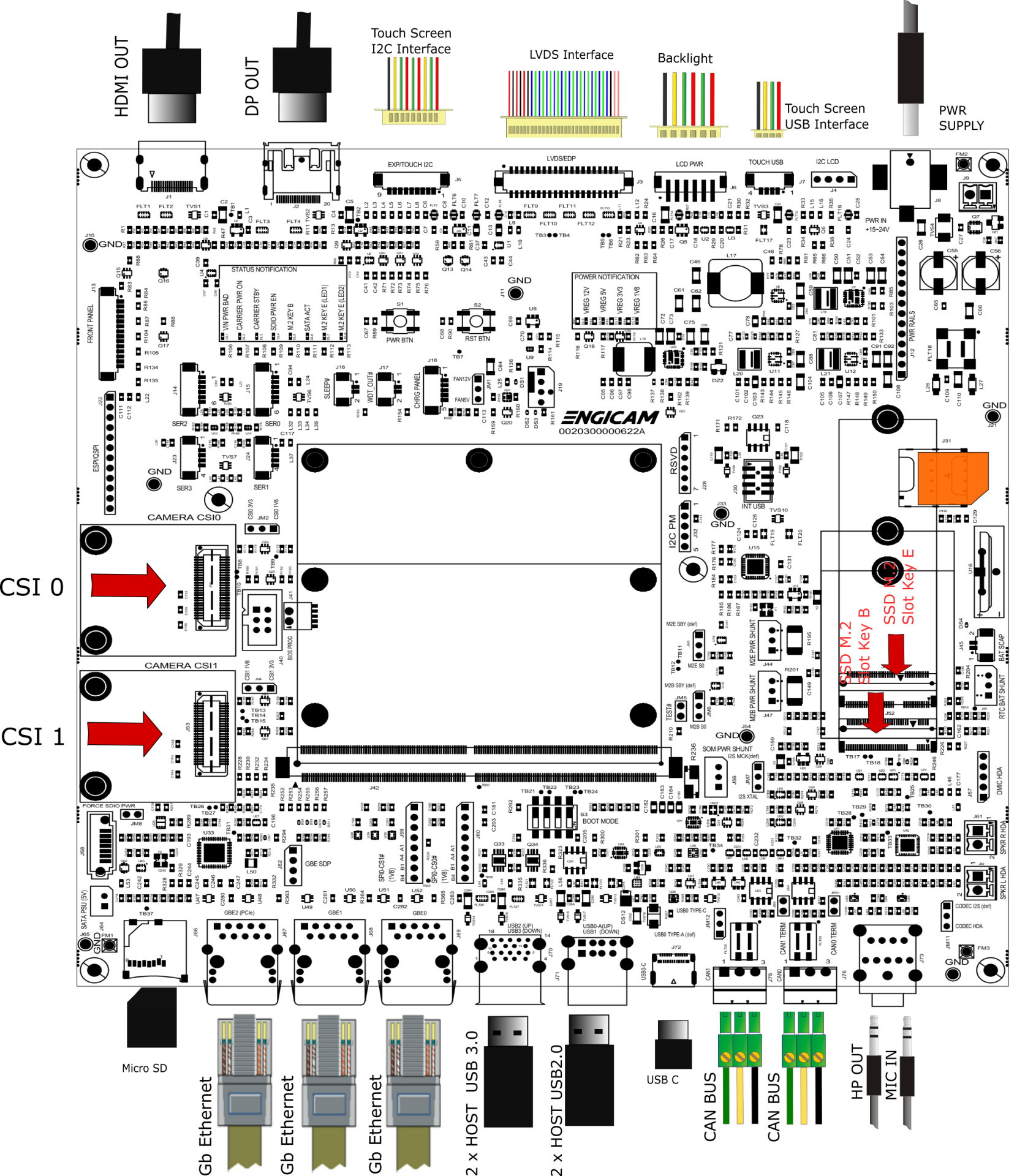

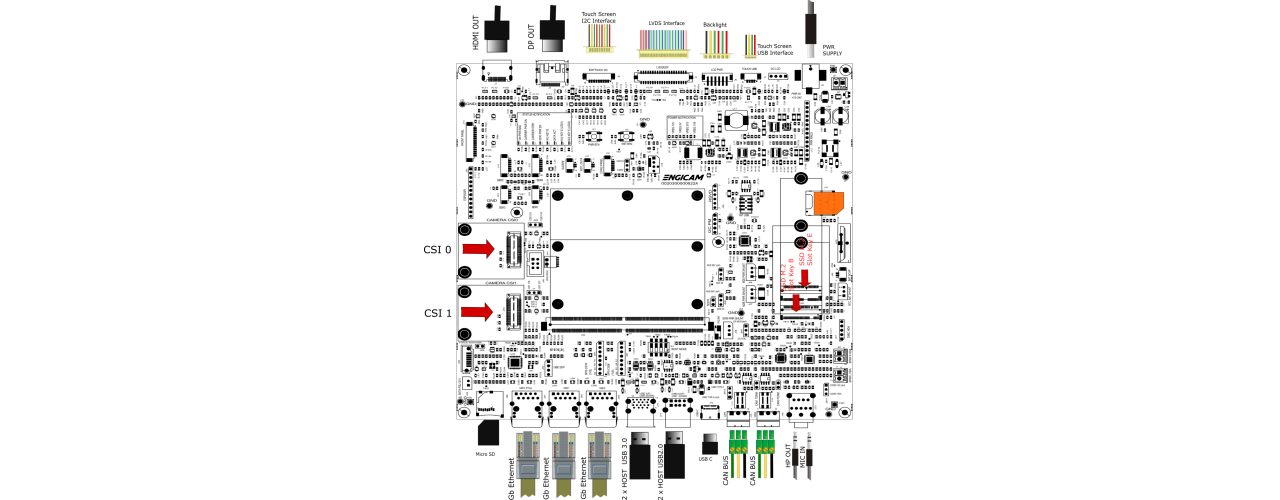

  • SmarCore 2.x family compliant
  • Industrial temperature range
  • 15-28 VDC single power supply
  • 1 x HDMI (module dependent)
  • 2 x LVDS interfaces up to Full HD (DSI and eDP options - module dependent)
  • 1 x DP interface up to 4K (module dependent)
  • 2 x MIPI CSI interfaces
  • 1 x Audio interface
  • 3 x Gb Ethernet
  • 2 x USB 3.0 (module dependent)
  • Up to 2 x USB 2.0 ( 1 x USB Type C option)
  • 1 x microSD
  • 4 x Serial UARTs TTL
  • M.2 Key E / M.2 Key B
  • 2 x CAN Buses (module dependent)
  • 1 x SATA interface
