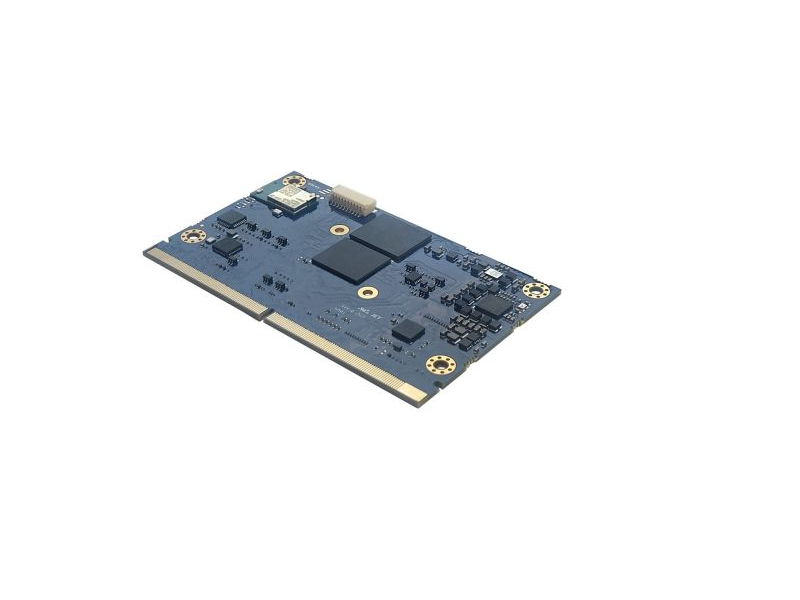

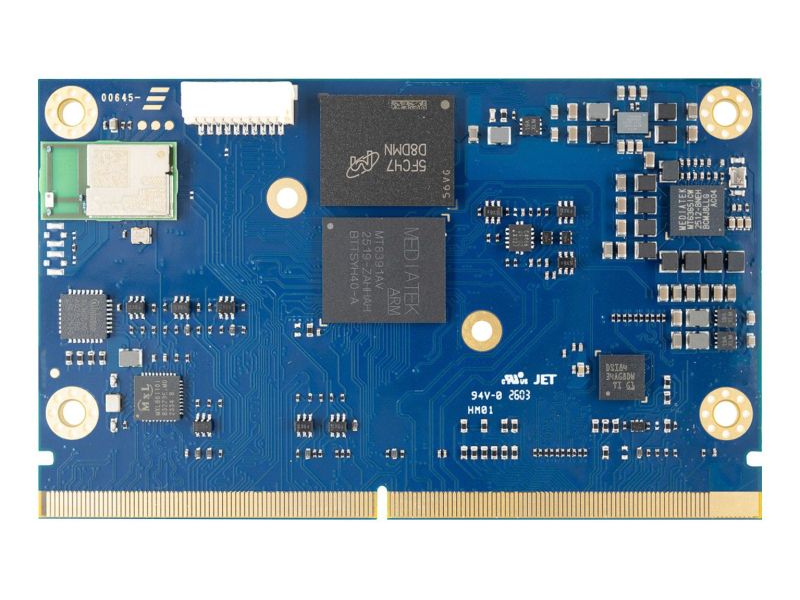

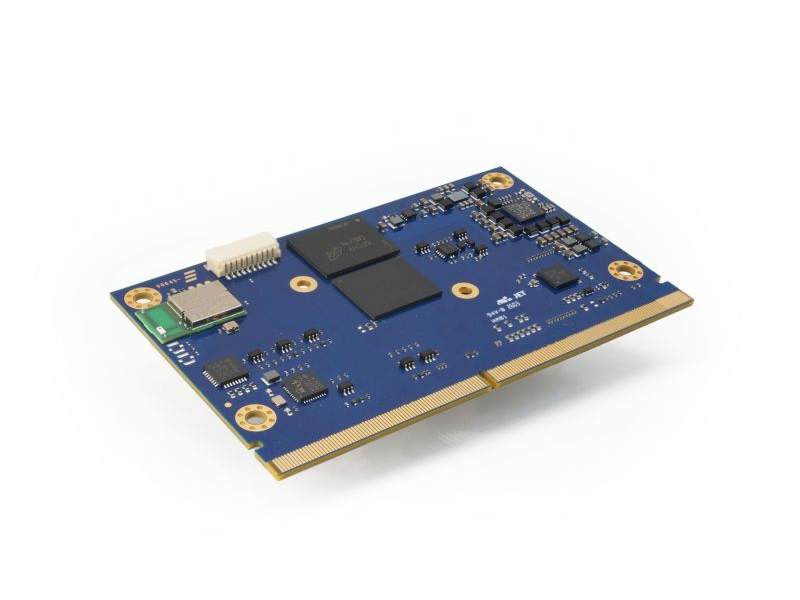

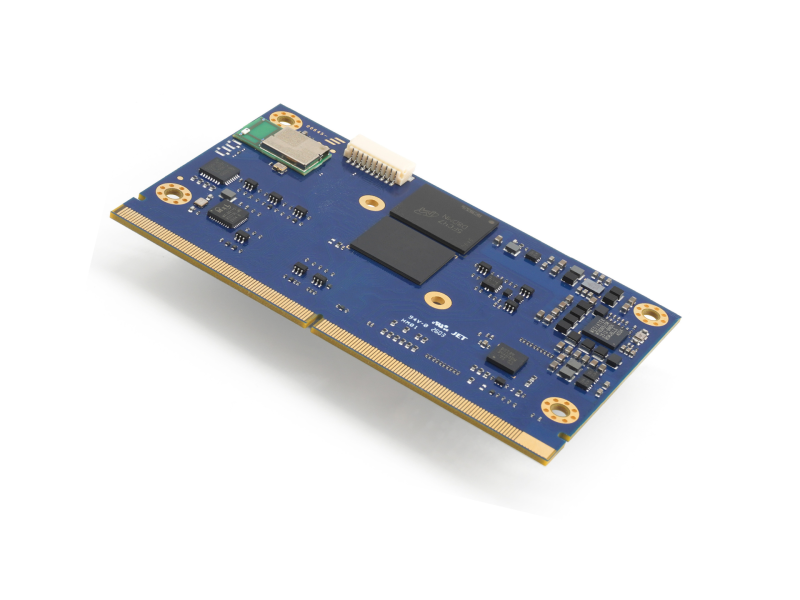

SmarCore Genio 520/720

 SmarCore Genio 520/720  based on MediaTek® Genio 520/720 processor with 10 TOPS 8th Generation NPU, 3D GPU is a powerful IoT platform equipped with generative AI capabilities and advanced multimedia features.

Specifications

CPU

  • Manufacturer MediaTek
  • Processor Family Genio 520/720
  • Architecture ARM
  • Cores 8
  • Cores description 2x Arm Cortex-A78, 6x Arm Cortex-A55
  • Frequency Up to 2.6 GHz

MEMORY

  • RAM Type LPDDR5
  • RAM Frequency 6400 MT/s
  • RAM Size 16 GB
  • STORAGE on board Starting from 4GB eMMC drive, UFS, SPINOR

AI ACCELERATOR

  • NPU MediaTek 8th Generation NPU
  • NPU Capabilities 10 TOPS

GRAPHICS

  • GPU Arm Mali-G57 MC2
  • Features OpenGL ® ES 1.1, 2.0, 3.2; Vulkan ® 1.0, 1.1; OpenCL up to 2.2

VIDEO

  • DP
  • eDP
  • LVDS Channels Dual
  • MIPI-DSI 1x 4-lane
  • MIPI-CSI 2x 4-lane

VIDEO PROCESSING

  • Decoder Support 3840 x 2160@60 fps HEVC/H.264/VP9
  • Encoder Support 3840 x 2160@30 fps HEVC/H.264

USB

  • USB2 4
  • USB3 1

PCIe

  • Generation Gen2
  • Number 1
  • Aggregations 1x 1-lane

NETWORKING

  • LAN PHY 1x Gigabit Ethernet

PERIPHERAL INTERFACES

  • UART 4
  • I2C 5
  • SPI 2
  • SDIO 1
  • Audio 2x I2S, Optional earphone audio buffer
  • Other WiFi+BT, JTAG

OPERATING SYSTEM

  • Linux Yocto
  • Android

GENERAL

  • Form Factor Smarc Short Size
  • Dimensions 82 x 50 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to +85 °C
  • Availability 2035

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

Products to complete your design

Technical Wiki & Design Resources

Online documentation and technical knowledge base for this product.
