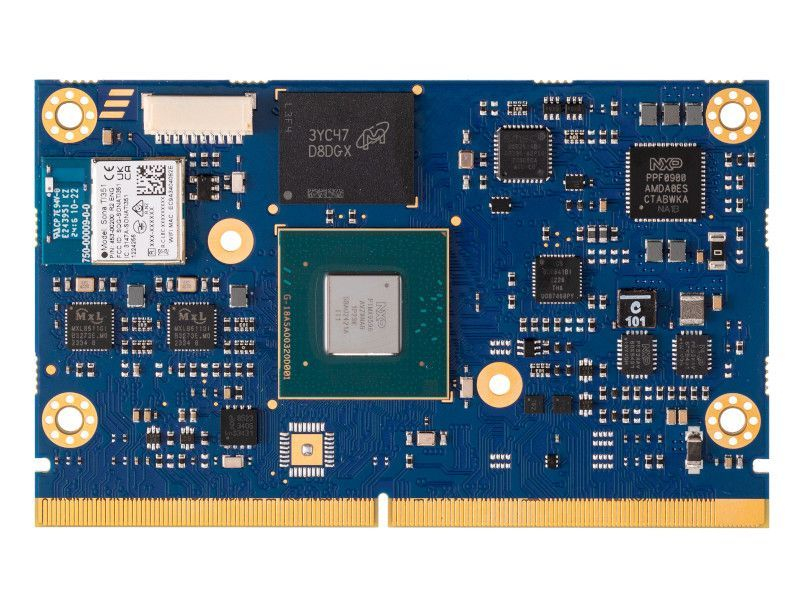

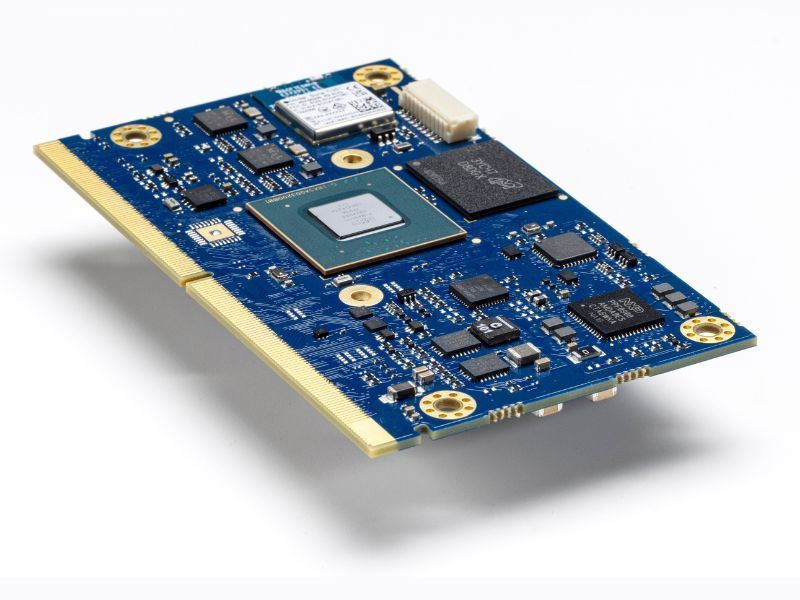

SmarCore MX95

Standard SMARC module for a wide range of edge applications from Automotive connectivity to Industry 4.0 and IoT platforms. SmarCore MX95 is based on NXP® i.MX95 processor with 2.0 TOPS NPU, 3D GPU for real-time, safety/low-power and high performance applications.

CPU NXP® i.MX95
RAM LPDDR5@6400MTs
AI CAPABILITIES 2.0 TOPS NPU
DIMENSIONS Standard SMARC short size

Specifications

CPU

  • Manufacturer NXP
  • Processor Family i.MX95
  • Architecture ARM
  • Cores 4, 6
  • Cores description 6x Arm Cortex-A55
  • Frequency up to 1.8 GHz
  • Integrated MCU Cortex-M7, Cortex-M33

MEMORY

  • RAM Type LPDDR5
  • RAM Frequency 6400 MT/s
  • RAM Size starting from 4 up to 16 GB
  • STORAGE on board 32 GB eMMC

AI ACCELERATOR

  • NPU eIQ® Neutron
  • NPU Capabilities 2.0 TOPS

GRAPHICS

  • GPU Arm Mali-G310
  • Features OpenGL ® ES 3.2; Vulkan ® 1.3; OpenCL 3.0

VIDEO

  • LVDS Channels Dual
  • MIPI-DSI 1x 4-lane
  • MIPI-CSI 1x 4-lane, 1x 2-lane optional

VIDEO PROCESSING

  • Decoder Support 4Kp60 H.265/H.264, 1x JPEG
  • Encoder Support 4Kp60 H.265/H.264, 1x JPEG

USB

  • USB2 5
  • USB3 1

PCIe

  • Generation Gen3
  • Number 2
  • Aggregations 2x 1-lane

NETWORKING

  • LAN PHY 2x Gigabit Ethernet
  • MAC Interface 10 Gb Ethernet (SGMII)

PERIPHERAL INTERFACES

  • UART 4
  • I2C 3
  • SPI 2
  • CAN 2
  • SDIO 1
  • GPIOs
  • Audio I2S

OPERATING SYSTEM

  • Linux Yocto
  • Android

GENERAL

  • Form Factor SmarCore
  • Dimensions 67.6 x 32 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to +85°C
  • Availability 2039

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

PCN

Hardware manual

Errata

Fact Sheet

3D

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

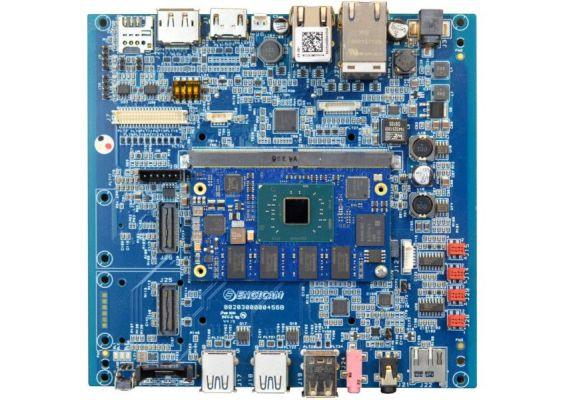

Multimedia 4K SMARC Carrier Board

General purpose carrier board Compliant with SMARC standard

View product

Pico.Board

Standard SmarCore SOM carrier board suitable for AI accelerator modules

View product

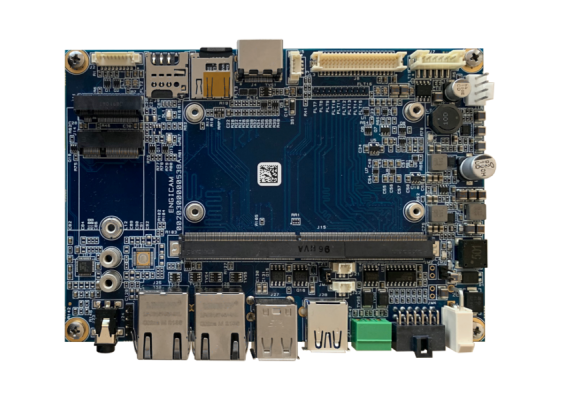

X.Touch 2.0

General purpose carrier board Compliant with standard SMARC Interface

View product

Products to complete your design

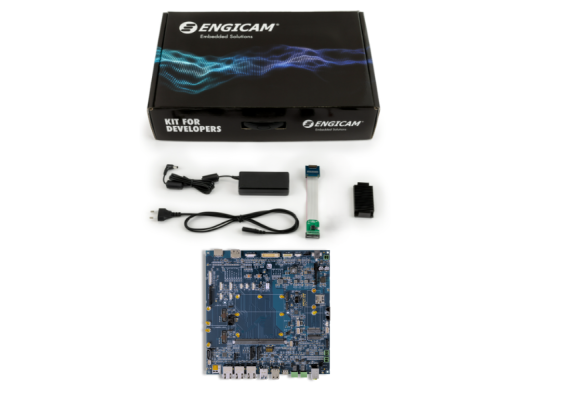

SMARC Multimedia 4K Starter Kit

SMARC Form Factor Evaluation Board

View product

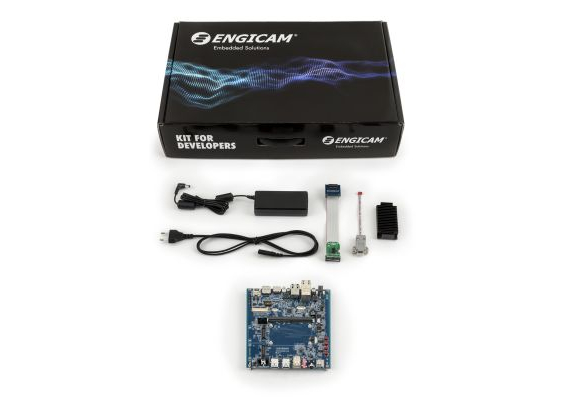

SmarCore EVABOARD

SmarCore Form Factor Capacitive Evaluation Board

View product

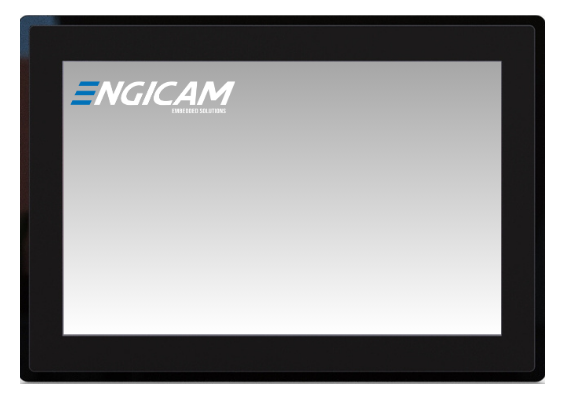

K.Touch 10.1 SMARC

Capacitive touch 10.1 display + frame based on standard SMARC x86 and ARM, front mount.

View product

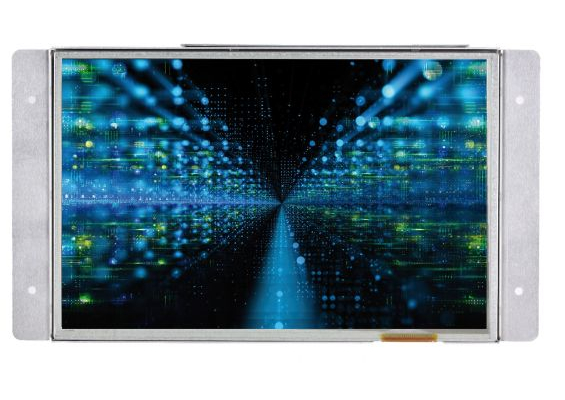

X.Touch 10.1" Ampire

X.TOUCH 10.1” AMPIRE Open Frame

View product
