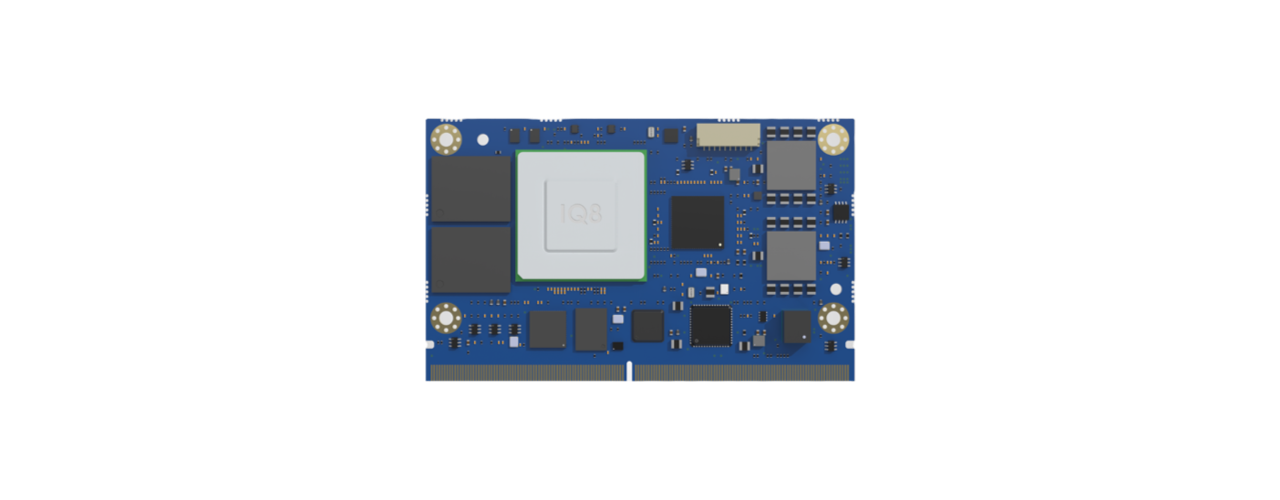

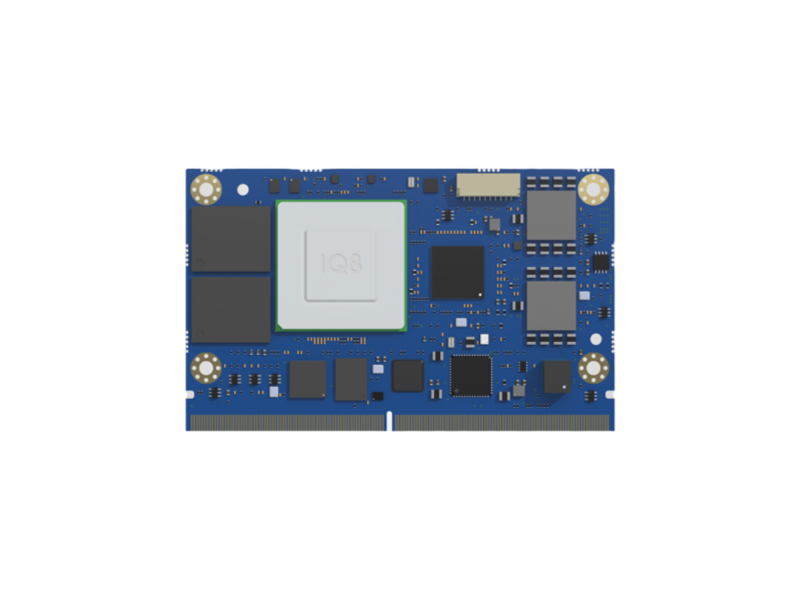

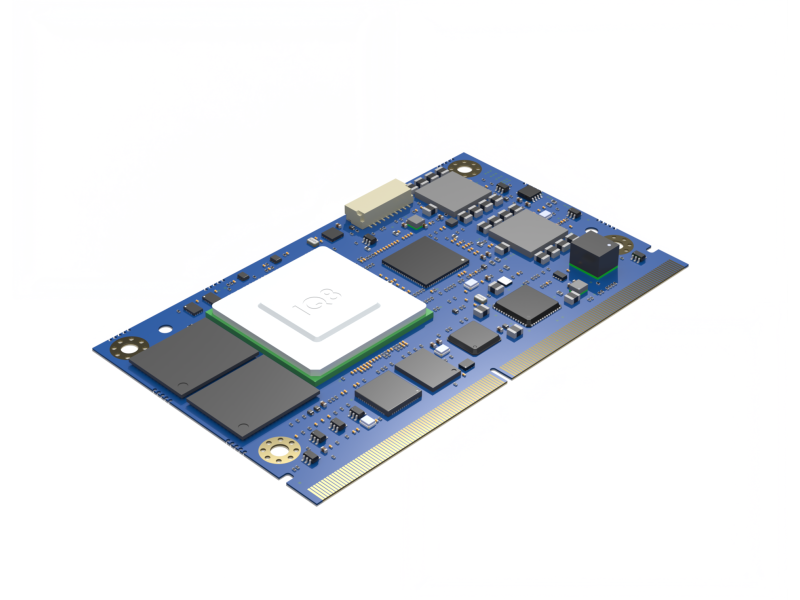

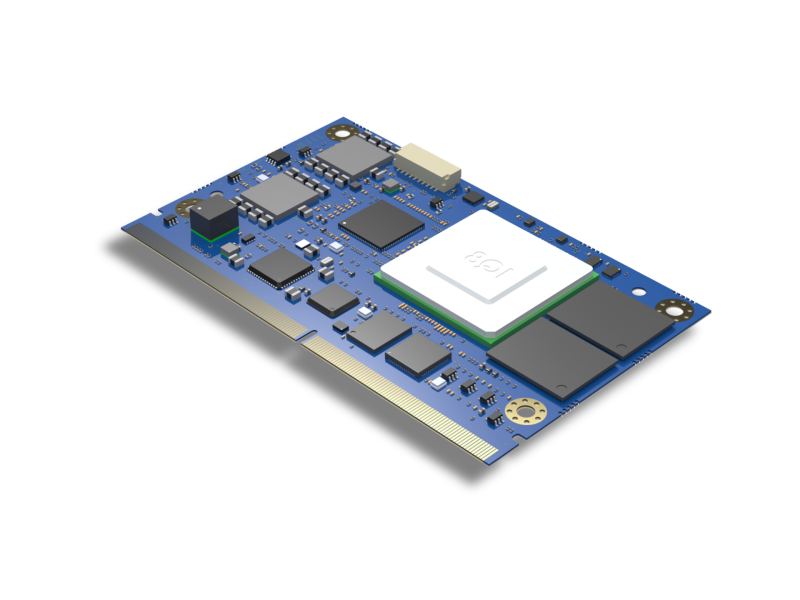

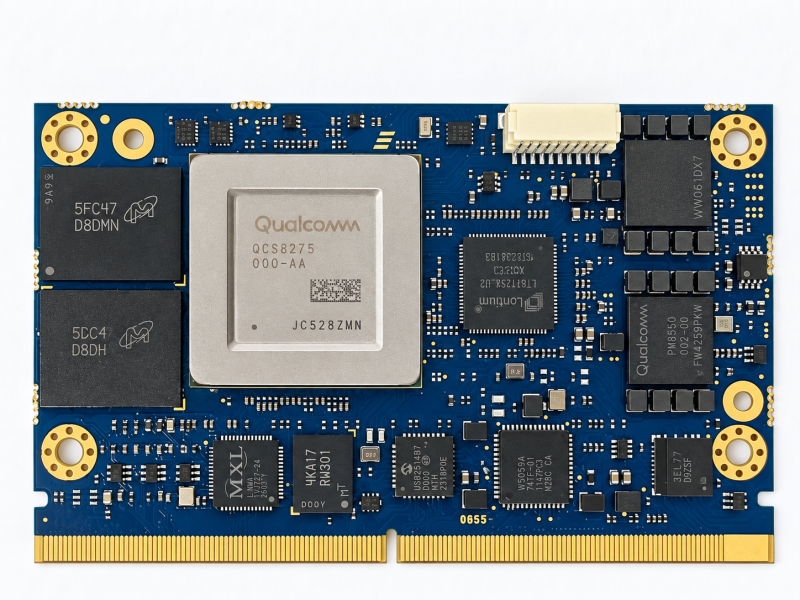

SmarCore iQ8

The Dragonwing IQ8 Series powers compute-heavy and AI-based devices, designed to operate in an extended temperature range with built-in safety features and rich peripheral support.

Coming soon!

Specifications

CPU

  • Manufacturer Qualcomm
  • Processor Family Dragonwing™ IQ-8275
  • Architecture ARM
  • Cores 8
  • Cores description 2x Kryo Gold Prime, 2x Kryo Gold , 4x Kryo Silver
  • Frequency Up to 2.35 GHz
  • Integrated MCU MCU-like Subsystem

MEMORY

  • RAM Type LPDDR5X
  • RAM Frequency 6400 MT/s
  • RAM Size up to 32 GB
  • STORAGE on board Starting from 8GB eMMC drive, UFS3.1 option

AI ACCELERATOR

  • NPU Hexagon Tensor Processor
  • NPU Capabilities 40 TOPS (dense)

GRAPHICS

  • GPU Adreno 623
  • Features OpenGL ® ES 3.2, Vulkan ®, OpenCL 2.0

VIDEO

  • HDMI
  • DP
  • LVDS Channels Dual
  • MIPI-DSI 1x 4-lane
  • MIPI-CSI 2x 2,4-lane

VIDEO PROCESSING

  • Decoder Support Up to 4K135 AV1, HEVC, H.264/H.265/VP9/ MPEG-2
  • Encoder Support Up to 4K85 HEVC, H.265/H.264

USB

  • USB2 4
  • USB3 1
  • USB OTG 1

PCIe

  • Generation Gen4
  • Number 2
  • Aggregations 1x 4-lane, 2x 2-lane

NETWORKING

  • LAN PHY 1x Gigabit Ethernet, 1x 2.5 Gigabit Ethernet
  • MAC Interface 1x RGMII

PERIPHERAL INTERFACES

  • UART 4
  • I2C 4
  • SPI 2
  • CAN 2
  • GPIOs
  • Audio 2x I2S

OPERATING SYSTEM

  • Linux Yocto

GENERAL

  • Form Factor SmarCore
  • Dimensions 82 x 50 mm
  • Power Supply single 5V
  • Operational Temperature -40°C up to 85°C
  • Availability 2038

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

3D

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

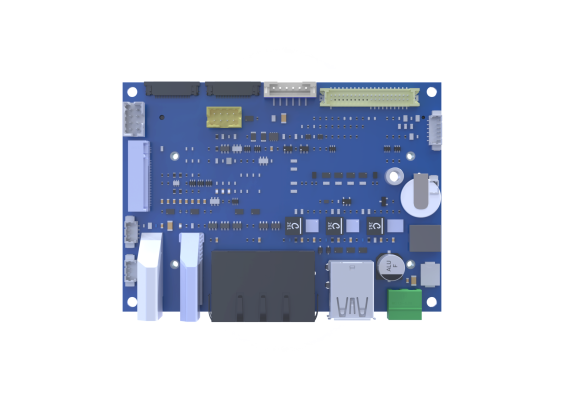

Pico.Board

Standard SmarCore SOM carrier board suitable for AI accelerator modules
