i.MX6 based EDIMM SOM

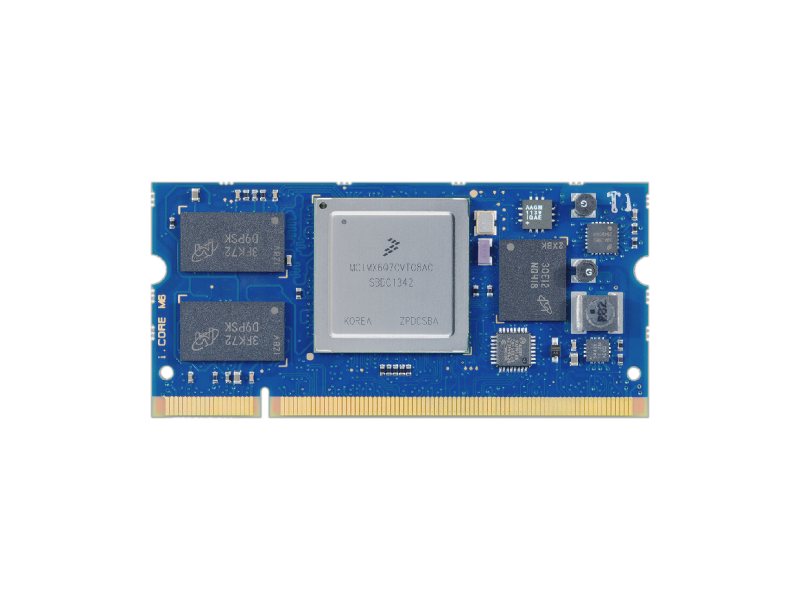

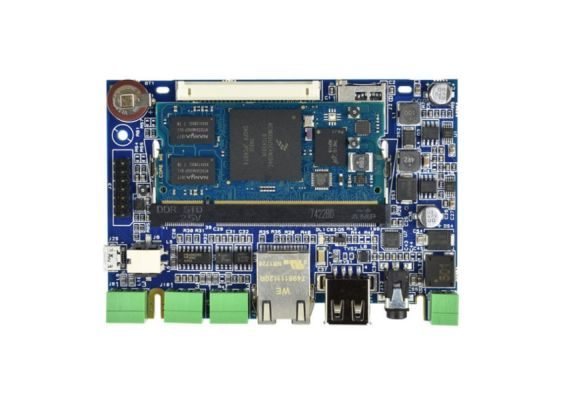

i.Core_MX6

i.Core MX6 based on NXP™ i.MX 6 series, offers power-efficient processing capabilities and powerful graphics acceleration.


Based on NXP™ i.MX 6Solo, i.MX 6DualLite, i.MX 6Dual or i.MX 6Quad processor. The NXP i.MX 6 series of applications processors combines scalable platforms with broad levels of integration and power-efficient processing capabilities particularly suited to multimedia applications. Optimized for high-performance energy-efficient processing in general embedded, automotive, industrial, and consumer applications. Powerful graphics acceleration. Advanced hardware-enabled security.

Request info

CPU

  • NXP® i.MX6
  • Manufacturer: NXP
  • VPU
  • GPU

Cores

  • ARM
  • Up to 4 x Cortex-A9@800MHz
  • 1, 2, 4 cores

Memory

  • DDR3L@1066MTs
  • 256MB up to 2GB

Graphics

  • Up to 4 individual displays VPU—Video Processing Unit IPU—Image Processing Unit (2 IPUs) GPU3D—3D Graphics Processing Unit (OpenGL ES 2.0) GPU2D—2D Graphics Processing Unit (BitBlt) GPUVG—OpenVG 1.1 Graphics Processing Unit (Dual/Quad Only) ASRC—Asynchronous Sample Rate Converter

Video Interfaces

  • HDMI, LVDS, Parallel RGB

Video Processing Unit Capabilities

  • Up to 1920x1200

Mass Storage

  • SATA (Dual/Quad Only), Nand Flash
  • EMMC, NAND, SATA

Networking

  • 1x LAN 100

USB

  • 1x OTG
  • 1x USB2

PCIe

  • 1
  • 1 x PCIe interface

Audio

  • 1 x I2S interface

Peripheral Interfaces

  • Up to 2 I2C Up to 3 SPI Up tp 4 PWM Up to 4 UART Up to 2 CAN Bus Up to 2 SDIO interfaces JTAG interface 8 bit CSI INPUT MIPI-CSI INPUT

Power Supply

  • single 5V

Operating System

  • Linux
  • Android

Development System

  • Debian,Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • EDIMM
  • 67.6 x 32.1 mm

Product availability

  • 2035

Hardware manual

  • Heatsink_assembly_i.CoreMX6_D-Q_REV_A.pdf - 521.31K (please login to download)
  • Heatsink_assembly_i.CoreMX6_S-DL_REV_A.pdf - 308.82K (please login to download)
  • i.Core_MX6S-DL-D-Q_HW_manual_2.1.5.pdf - 4.13M (please login to download)

Errata

  • i.CoreM6S-DL-D-Q_REV_1.pdf - 76.78K (please login to download)

Software manual

  • i.CoreM6S-DL-D-Q_SW_manual_Yocto_2.0.5.pdf - 6.18M (please login to download)

PCN

  • PCN_1307-1.pdf - 75.46K (please login to download)
  • PCN_1307-2.pdf - 79.52K (please login to download)
  • PCN_1307-3.pdf - 79.98K (please login to download)
  • PCN_1311-3.pdf - 81.70K (please login to download)
  • PCN_1405-1.pdf - 57.99K (please login to download)
  • PCN_1502-1.pdf - 79.21K (please login to download)
  • PCN_1503-2.pdf - 74.66K (please login to download)
  • PCN_1505-1.pdf - 56.72K (please login to download)
  • PCN_1505-2.pdf - 53.74K (please login to download)
  • PCN_1506-2.pdf - 533.71K (please login to download)
  • PCN_1507-1.pdf - 53.86K (please login to download)
  • PCN_1508-1.pdf - 56.90K (please login to download)
  • PCN_1605-2.pdf - 54.87K (please login to download)
  • PCN_1711-1.pdf - 93.43K (please login to download)
  • PCN_1903-1.pdf - 120.37K (please login to download)
  • PCN_1910-1.pdf - 129.61K (please login to download)
  • PCN_1405-2.pdf - 71.75K (please login to download)
  • PCN_21101.pdf - 50.17K (please login to download)
  • PCN_21111.pdf - 105.75K (please login to download)

Fact Sheet

OS Images

  • This content is available for authorized users only. Please login.
