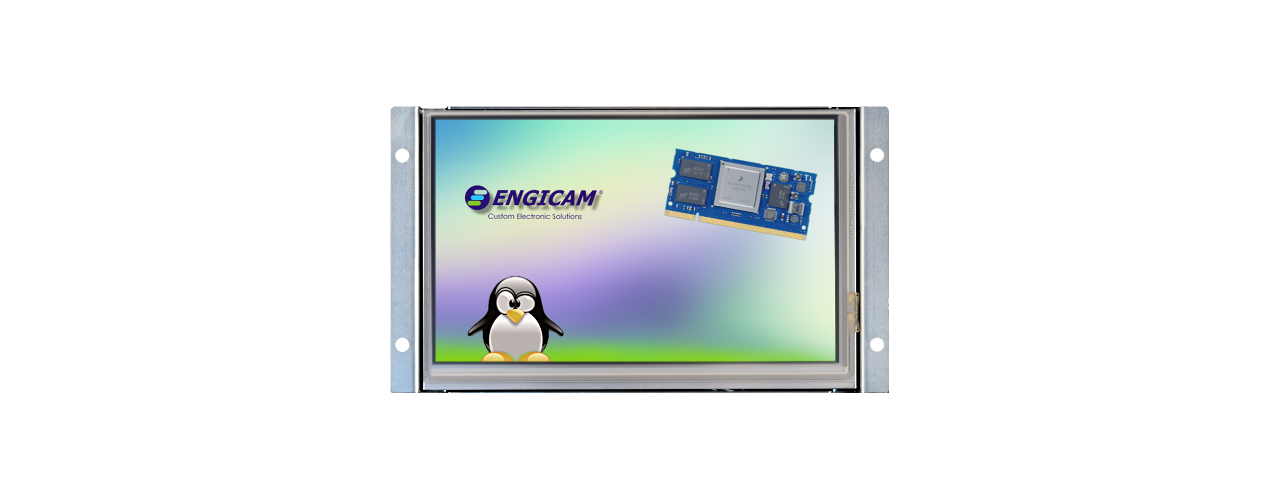

Resistive touch 7" open frame

The carrier+SOM approch allows a very scalable solution. Based on standard EDIMM modules, this open frame terminal can be driven by GEA MX6UL module for the low cost applications and by i.Core M6 where a more powerful processor is required. The resistive touch panel and the Engicam Linux SDK allow a really ready to use way to develop user friendly graphic user interface. The frameless touch panel system is very easy to be integrated into the final housing.

Operating Systems


  • TFT 7" industrial, 800x480 resolution
  • LED backlight, brightness 400 Cd/m2
  • Resistive touch
  • Wide 10 to 30 Vdc single power supply
  • 1x Ethernet 10/100T
  • 1x uSD, 1x USB
  • 1x RS232, 1x RS485, 1x CAN I/F
  • 1x expansion connectors (I2C, USB OTG, I2S, SDIO or SPI, up to 18 GPIO)
  • Real time clock option available
  •  CPU modules compliant

Hardware manual

  • EVBRTC_Manual_1.0.4.pdf - 3.01M (please login to download)
  • OpenframeR.TOUCH_7_Assembly_Plan_1.0.0.pdf - 613.39K (please login to download)
  • Openframe_R.TOUCH_USR_Manual_1.2.5.pdf - 971.00K (please login to download)


  • PCN_1311-2.pdf - 80.24K (please login to download)
  • PCN_1312-1.pdf - 70.41K (please login to download)
  • PCN_1510-2.pdf - 49.76K (please login to download)
  • PCN_1608-1.pdf - 68.48K (please login to download)
