Based on the newest i.MX93 processor

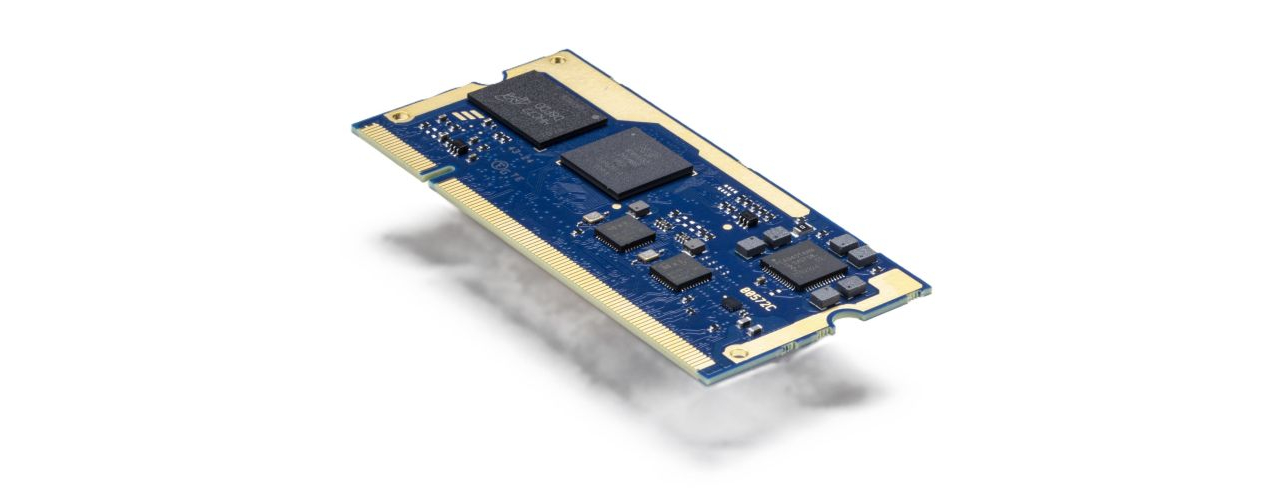

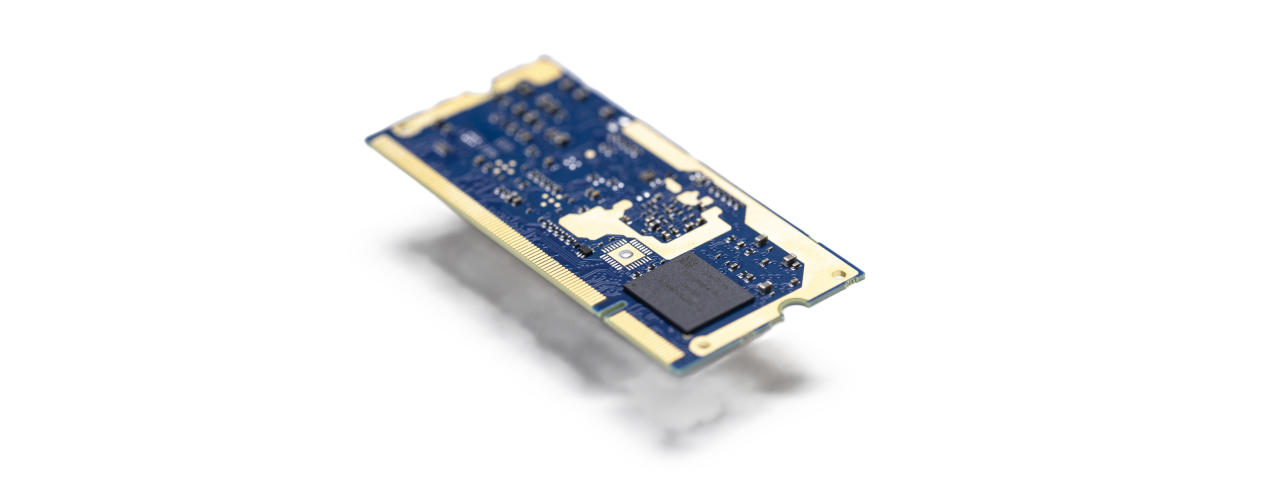

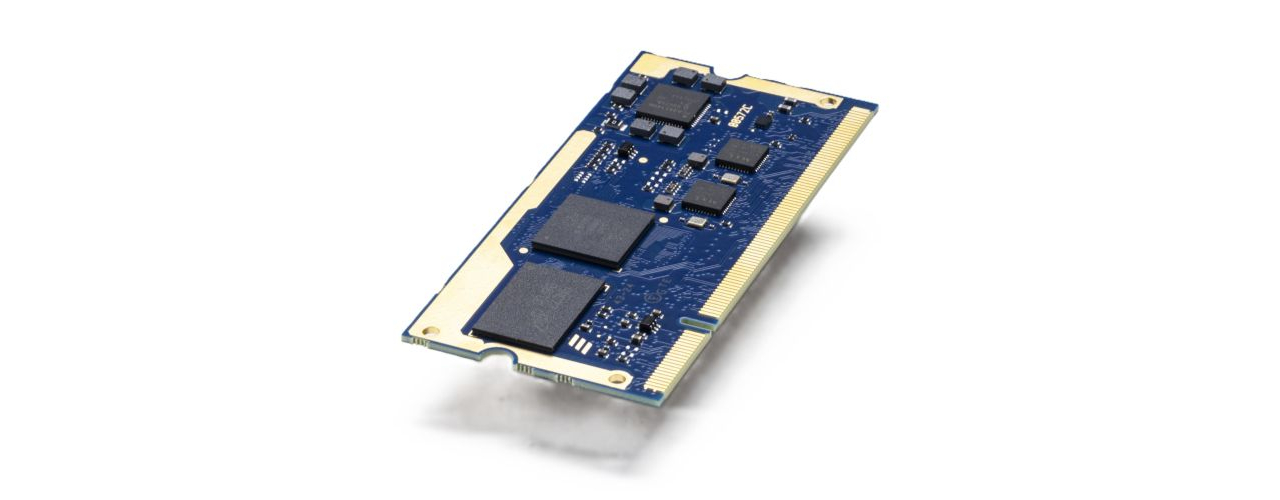

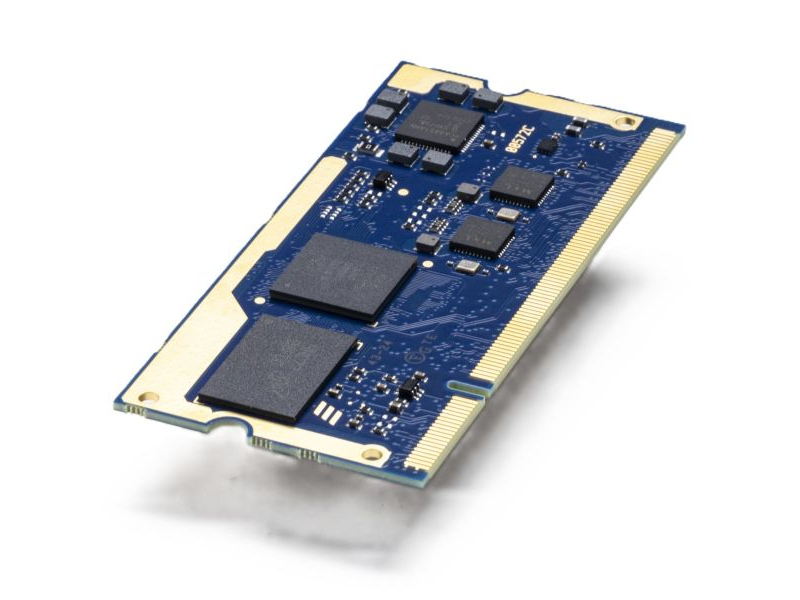

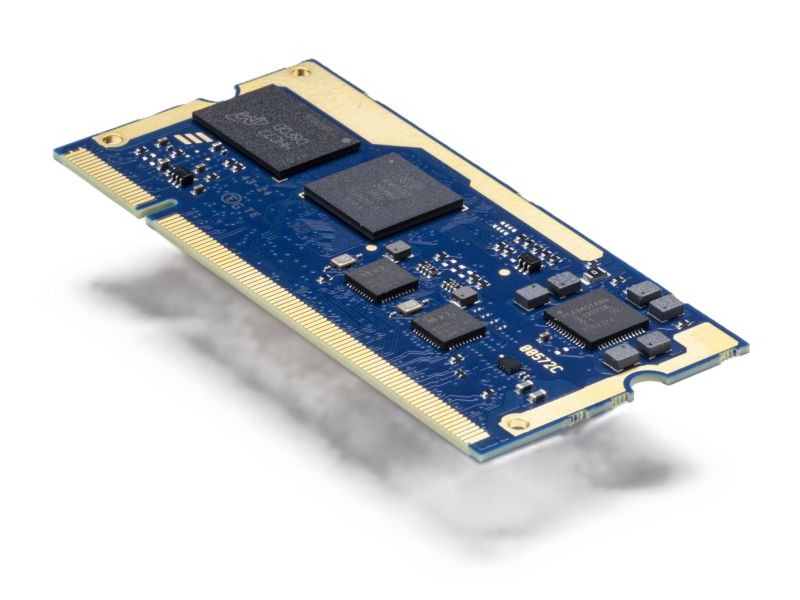

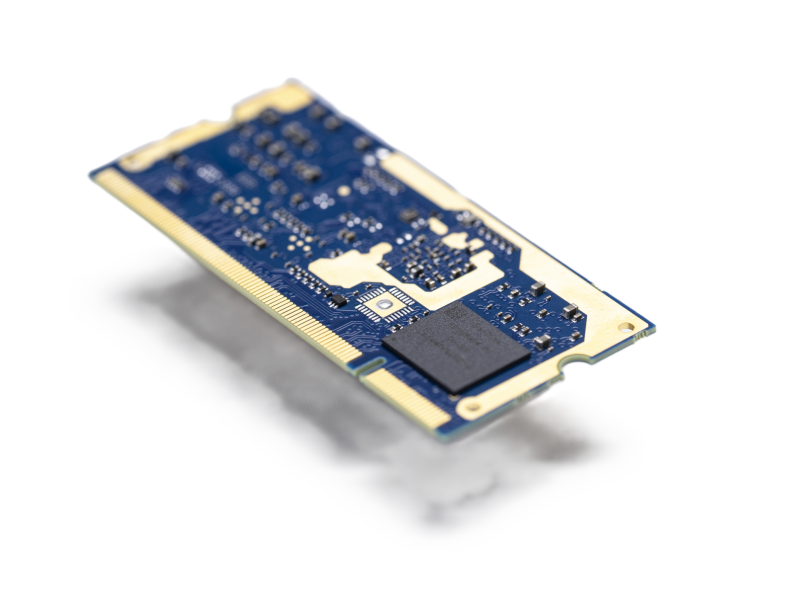

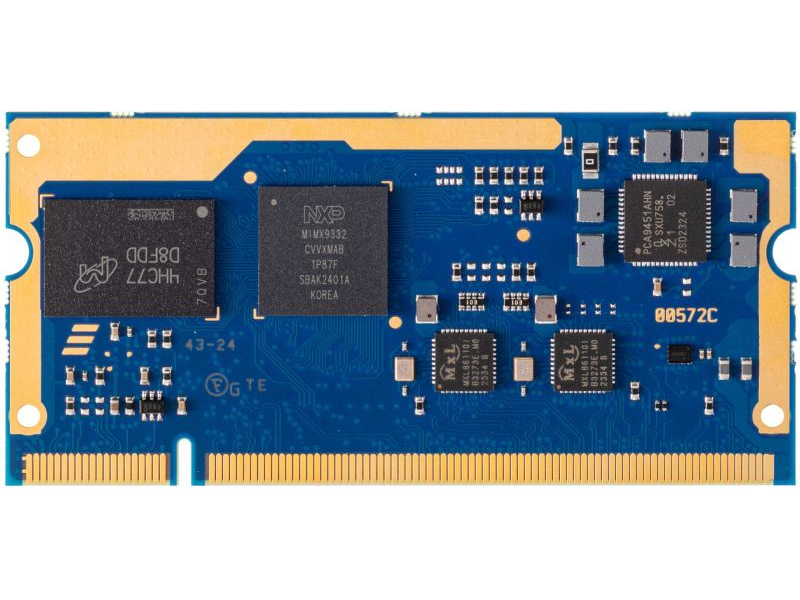

i.Core MX93  is the new SOM based on the latest NXPs i.MX93 and i.MX91 processor, equipped with Arm Cortex®-A55 @ up to 1.7 GHz processor with dedicated NPU.
This energy-efficient SOM is developed on EDIMM 2.0 versatile pinout and is suitable for machine learning, IoT, industrial, and automotive devices.
i.Core MX93 includes industrial features and temperature, a comprehensive set of peripherals, connectivity options such as 2x USB 2.0, and several display outputs.

CPU

  • NXP® i.MX 93
  • Manufacturer: NXP
  • NPU

Cores

  • ARM
  • Up to Dual Arm® Cortex®-A55 @ 1.7 GHz with Arm® Ethos™ U-65 microNPU and Arm Cortex-M33 @ 250MHz
  • 2 cores

Memory

  • LPDDR4@3700MTs
  • 1GB up to 2GB

Graphics

  • Hardware Compositor for Blending/Composition, Resize, Color Space Conversion

Video Interfaces

  • DSI, LVDS

Video Processing Unit Capabilities

  • Up to Full HD p60

Mass Storage

  • Starting from 4 GB soldered on-board
  • EMMC

Networking

  • 2x 1Gb Ethernet

USB

  • 2x USB2

PCIe

  • NO

Peripheral Interfaces

  • 4x UART (Up to 6)
    2x I2C (Up to 8)
    1x SPI (Up to 6)
    JTAG
    2x CAN
    2x SDIO
    GPIOs

Power Supply

  • single 5V

Operating System

  • Linux
  • Android

Operating Temperature

  • -40° up to 85°

Dimensions

  • EDIMM 2.0
  • 67.6 x 32 mm

Product availability

  • 2038
