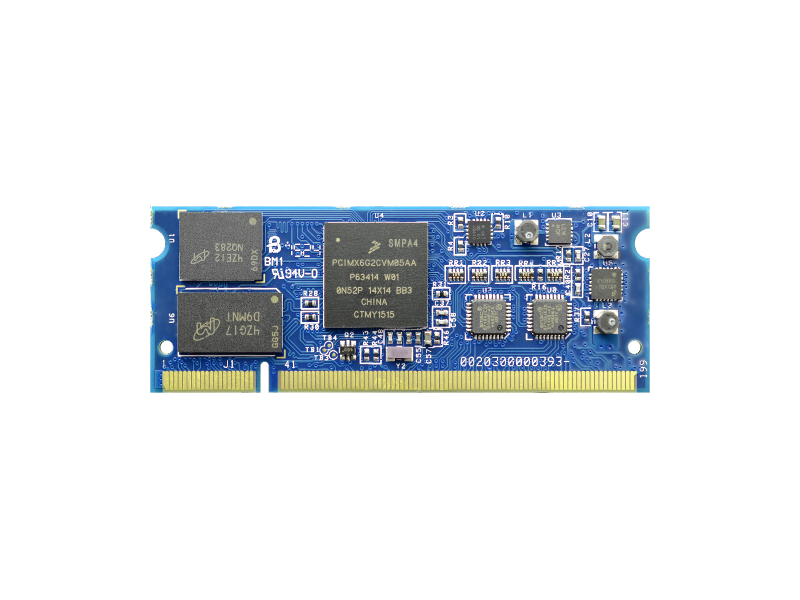

i.MX 6UltraLite based SOM


GEA MX6UL, based on a single ARM™ Cortex™-A7 core, offers high performance and low power consumption

Based on NXP™ i.MX 6UltraLite processor A high performance, ultra-efficient processor family featuring an advanced implementation of a single ARM™ Cortex™-A7 core, which operates at speeds up to 528 MHz.

CPU

  • NXP® i.MX6UL
  • Manifacturer: NXP

Cores

  • ARM
  • Singole-Core Cortex-A7@528MHz
  • 1 cores

Memory

  • DDR3L 800
  • 128MB up to 1GB

Graphics

  • Pixel processing pipeline (PXP) to support 2D image processing including color-space conversion, scaling, alpha-blending, and rotation

Video Interfaces

  • Parallel RGB

Video Processing Unit Capabilities

  • Up to 1366x768

Mass Storage

  • Nand Flash, eMMC (Optional)
  • EMMC, NAND

Networking

  • 2x LAN 100

USB

  • 1x OTG
  • 2x USB2

PCIe

  • 0 lanes

Audio

  • I2S interface

Peripheral Interfaces

  • Up to 4 I2C Up to 3 SPI Up tp 8 PWM Up to 8 UART Up to 2 CAN Bus Up to 2 SDIO interfaces

Power Supply

  • single 5V

Operating System

  • Linux

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • EDIMM
  • 67.6 x 25 mm

Product availability

  • 2030

Software manual

  • GEAM6ULSW_manual_Yocto_2.0.5.pdf - 4.79M (please login to download)

Errata

  • GEAM6UL_Errata_Rev2.pdf - 91.75K (please login to download)

PCN

  • PCN_1503-2.pdf - 74.66K (please login to download)
  • PCN_1608-2.pdf - 53.35K (please login to download)
  • PCN_1610-1.pdf - 96.52K (please login to download)
  • PCN_1704-1.pdf - 91.92K (please login to download)
  • PCN_1803-3.pdf - 66.72K (please login to download)
  • PCN_1808-1.pdf - 67.86K (please login to download)

Hardware manual

  • GeaMX6UL_HW_manual_2.0.8.pdf - 4.37M (please login to download)

BSP

  • engicam-bsp-vm.pdf (please login to download)

OS Images
