MicroGEA Form Factor Capacitive Evaluation Board

Operating Systems

Linux

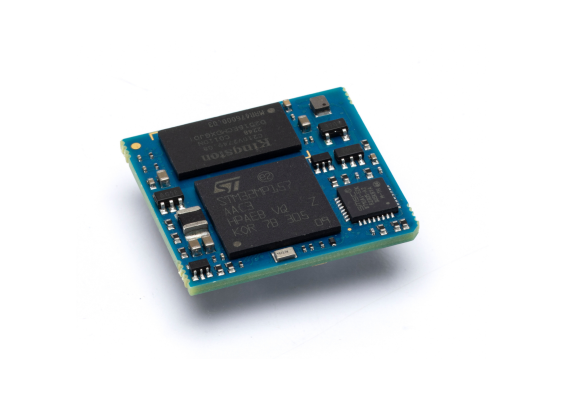

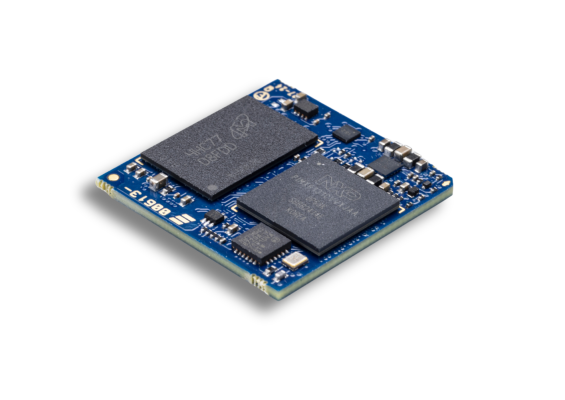

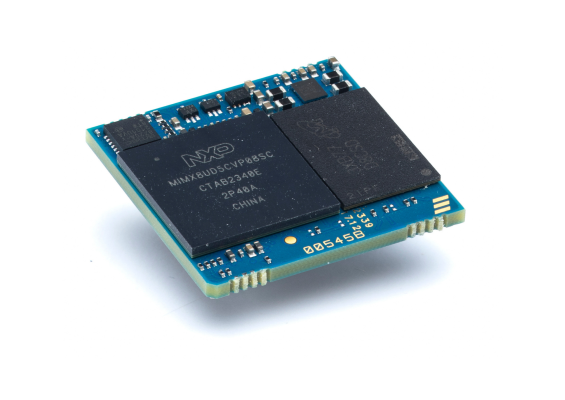

SUPPORTED SOM

FEATURES



  • TFT 7" 1024x600 resolution
  • 5 point multitouch CTP
  • Wide 7 to 40 Vdc single power supply
  • 1 x 10/100 Ethernet interface
  • 1 x microSD
  • 1 x USB Type A
  • 1 x RS485
  • 1 x RS232
  • 1 x RS232 for OS Console
  • 1 x expansion connector (I2C, CAN, USB, UART, up to 10 GPIO)
  • WiFi + BT (option)
  • UMTS 3G with sim connector (option)

Hardware manual

  • Openframe_i.Touch_EDIMM_7_USR_Manual_1.0.1.pdf - 4.87M (please login to download)
