Micro 5"

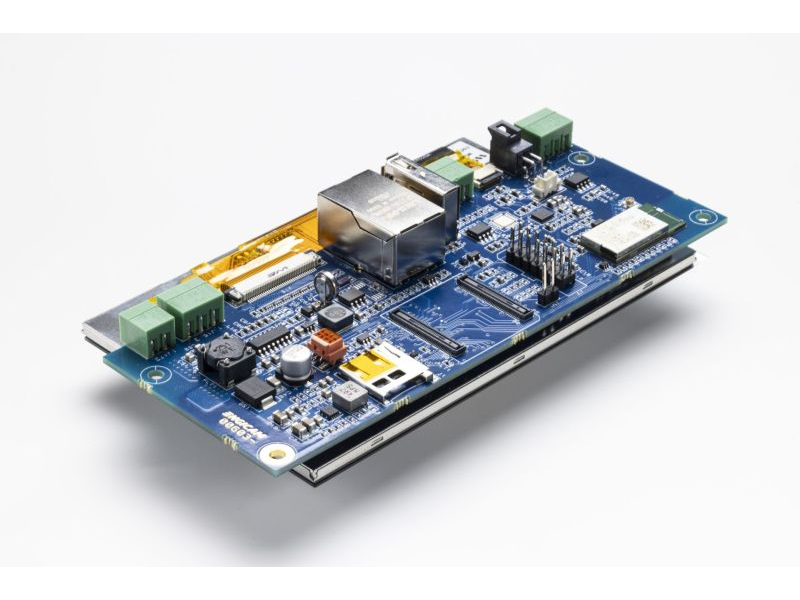

Designed for industrial environments, the Micro 5" is a general-purpose carrier board built on MicroGEA modules. It integrates a capacitive touch interface with extensive connectivity and a robust peripheral set to support a wide range of applications.

NETWORKING 1x 10/100 Ethernet, WiFi+BT

SERIALS 1x RS485,1x RS232(+1xOS Console)

DIMENSIONS 140 x 55 mm

OPERATING TEMPERATURE Industrial qualified

Specifications

Features

MicroSOM modules compliant
Wide 10 to 30 Vdc single power supply
1x Ethernet 10/100 interface
WiFi + BT
1x microSD
1x audio output
1x USB Type A
1x CAN bus
1x RS485
1x RS232
1x RS232 for OS Console
1x strip connector (UART, GPIOs, USB 2.0, SPI, Power supply +3,3V and +5V)
LCD connector: Parallel RGB, Capacitive touch panel via I2C, 1x PWM for backlight control
Industrial temperature range
Size 140 x 55 mm

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Micro_5_Carrier_board_Flyer.pdf 320.08K

Hardware manual

Micro_5_Carrier_Board_HW_Manual_1.0.3.pdf 2.19M login required

3D

This content is available for authorized users only. login required
