AI interface based on Renesas RZ/V2H

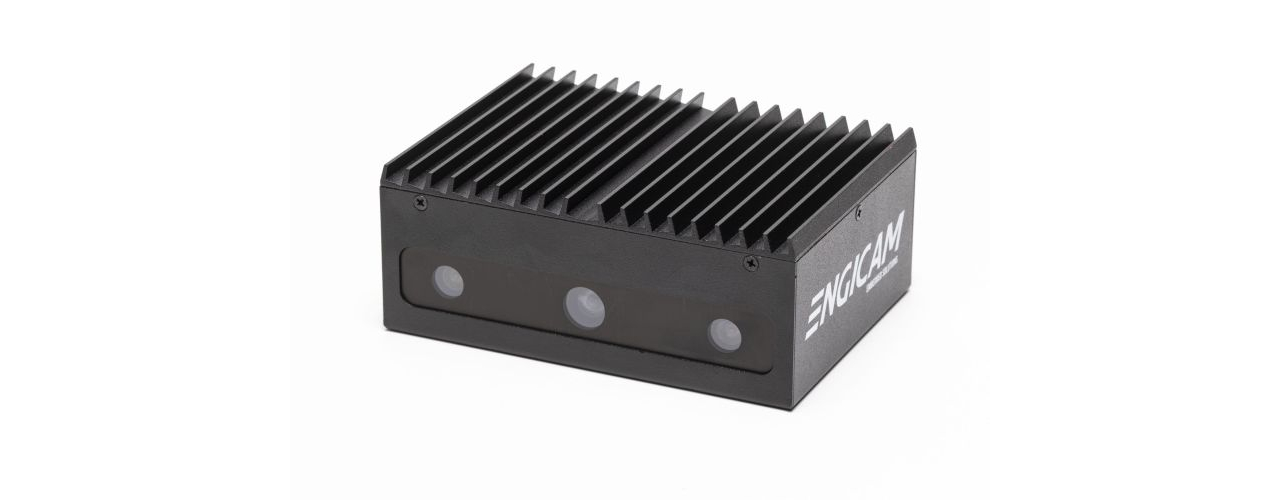

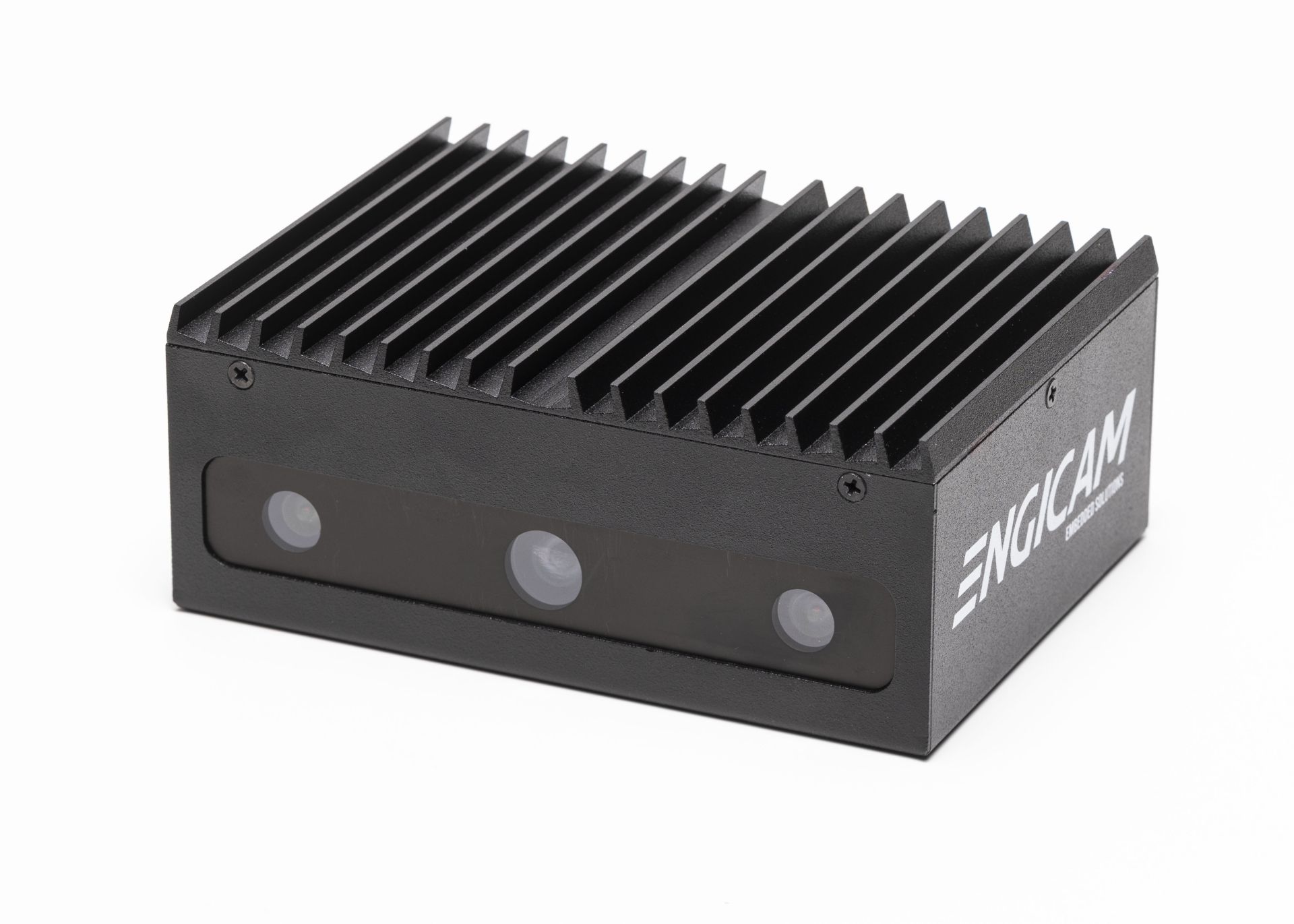

The AI.DEV RZ/V2H is a development kit incorporating an industrial-grade board equipped with the TIA RZ/V2H System-on-Module, which is based on the Renesas RZ/V2H processor. Equipped with three built-in CSI cameras, it provides an optimized platform for advanced artificial intelligence applications. Stereotopic vision reference design powered by Deep Vision Consulting

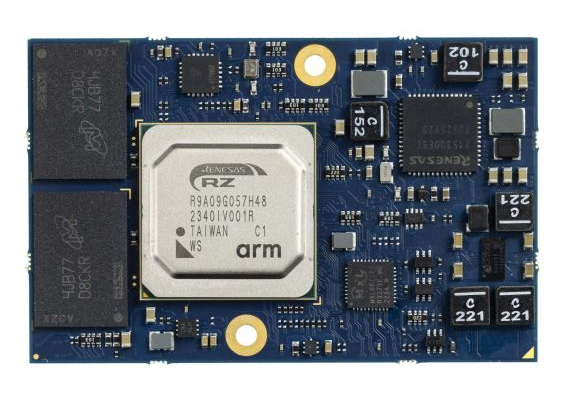

SOM Features

  • 4x Arm Cortex-A55 on-chip FPU, up to 1.8 GHz
  • 2x Arm Cortex-R8 on-chip FPU, up to 800 MHz
  • 1x Arm Cortex-M33 on-chip FPU, up to 200 MHz
  •
  • Up to 16 GB LDDR4x@3200MTs
  •
  • AI Accelerator DRP-AI3 (8TOPS/dense, 80TOPS/sparse)
  • Mali™-G31 (GE3D)
  • Mali™-C55 (ISP)
  • OpenGL ES™ 1.1, 2.0, and 3.2
  • OpenCL 2.0
  •
  • H.265/H.264  decode and encode
  • 1920 x 1080 @60 H.264
  • 3840 x 2160 @30 H.265

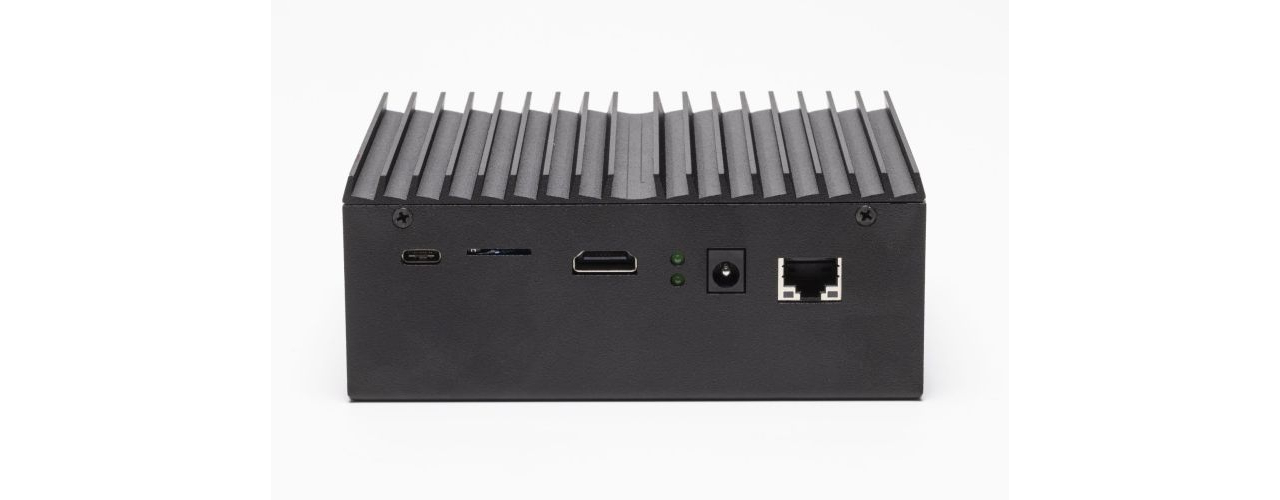

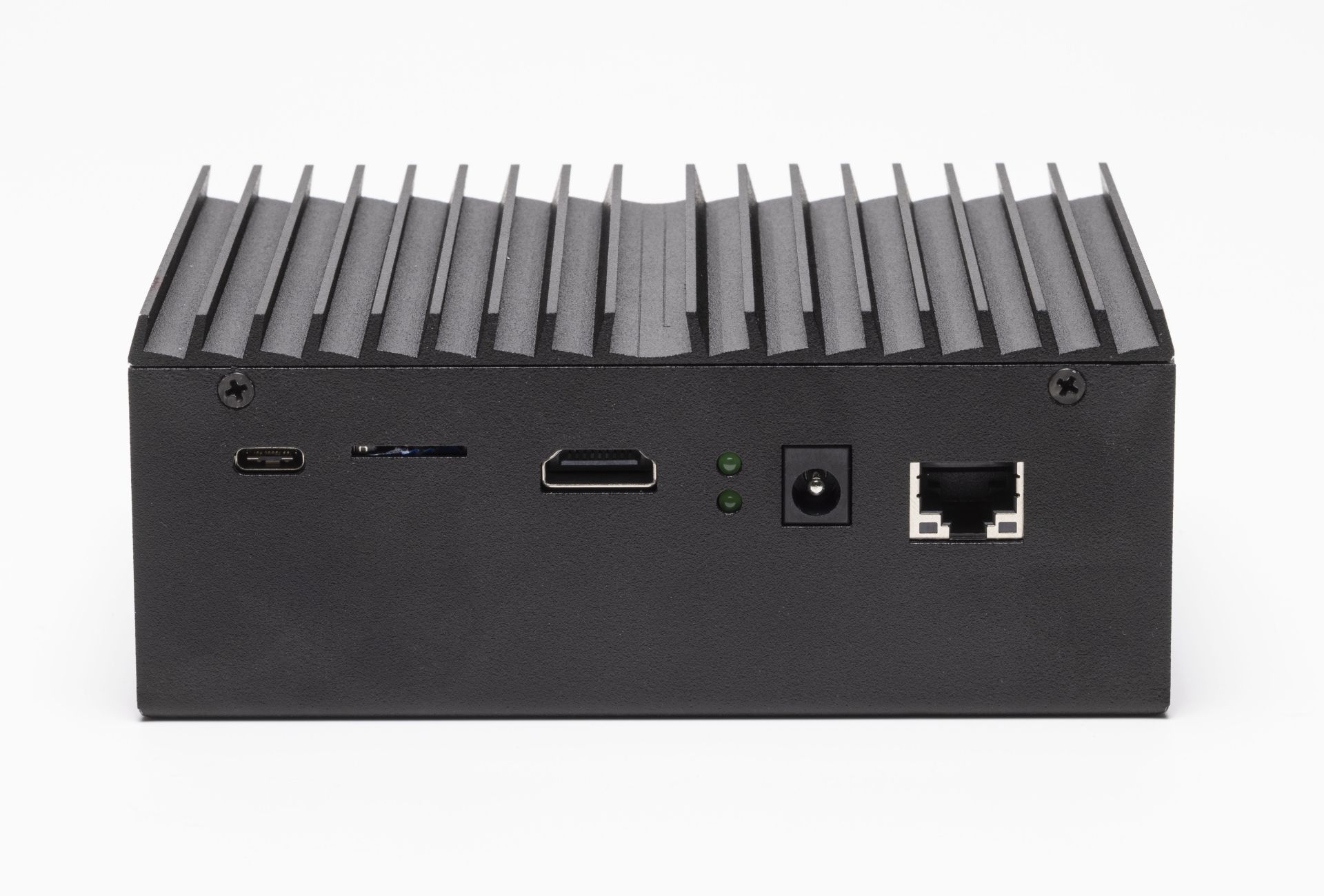

Peripheral Interfaces

  • 1xUSB-C for debug console
  • 1xUSB-C for data
  • SD card slot


Video Interfaces

  • HDMI output up to 4K @ 60Hz
  • 3x MIPI CSI 4-lane camera input
  • M.2 slot for additional AI accelerator


Networking

  • Gb Ethernet interface


Power Supply

  • Via Poe interface
  • +24V DC via power jack


Operating System

  • Yocto


Operating temperature

  • Industrial (-40°C to 85°C)


Dimensions

  • 100 x 136.5 x 55 mm
