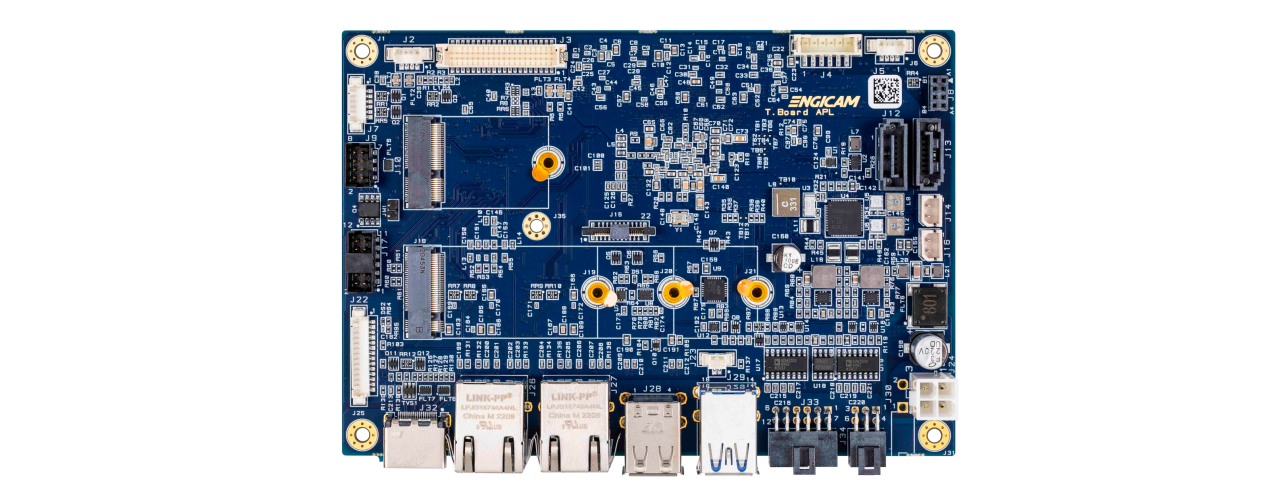

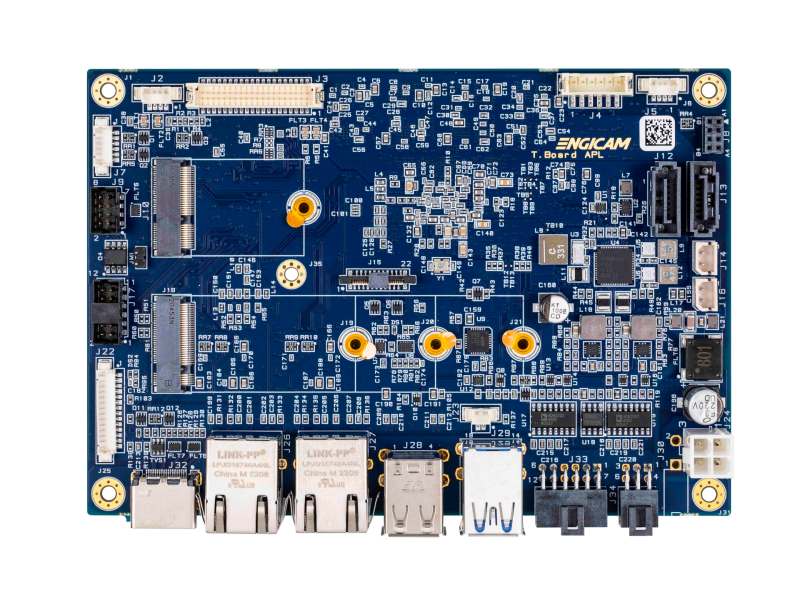

High Performance 3.5’’ Single Board Computer based on Intel Atom® Apollo Lake processor series.

CPU

  • Intel® Apollo Lake
  • Manufacturer: Intel
  • GPU

Cores

  • x86
  • 2, 4 cores

Memory

  • LPDDR4@2400MTs
  • 2GB up to 8GB

Graphics

  • Graphics : Intel® 9th generation (Gen 9) LP graphics. HW accelerated encode HEVC (L5), H.264 (L5.2), MVC (L5.1) VP8, PEG/MJPEG.

Video Interfaces

  • DP, eDP, HDMI, LVDS

Video Processing Unit Capabilities

  • • HEVC (L5.1), H.264 (L5.2), MVC (L5.2) VP8, VP9, MPEG2, VC-1, WMV9, JPEG/MJPEG dec
    • HEVC (L5), H.264 (L5.2), MVC (L5.1) VP8, JPEG/MJPEG enc

Mass Storage

  • From 4GB eMMC drive soldered on-board,SSD M.2 Key B,SATA
  • EMMC, SATA

Networking

  • 2x 1Gb Ethernet

USB

  • 2x USB2
  • 2x USB3

PCIe

  • NO

Audio

  • Build in HD with CS4207-CNZ Logic (MIC, HP & Line)

Peripheral Interfaces

  • I2C, RS232, RS485/422, M.2 Key E (PCI-E, USB 2.0, I2C) ,M.2 Key B (PCI-E/SATA), Panel Header (PWR, RST, Led CTRL)

Power Supply

  • +10 to 24 VDC

Operating System

  • Linux
  • Windows

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • 146 x 102 mm (3.5" form factor)

Product availability

  • 2036
