New IOT Gateway based on MicroGEA modules

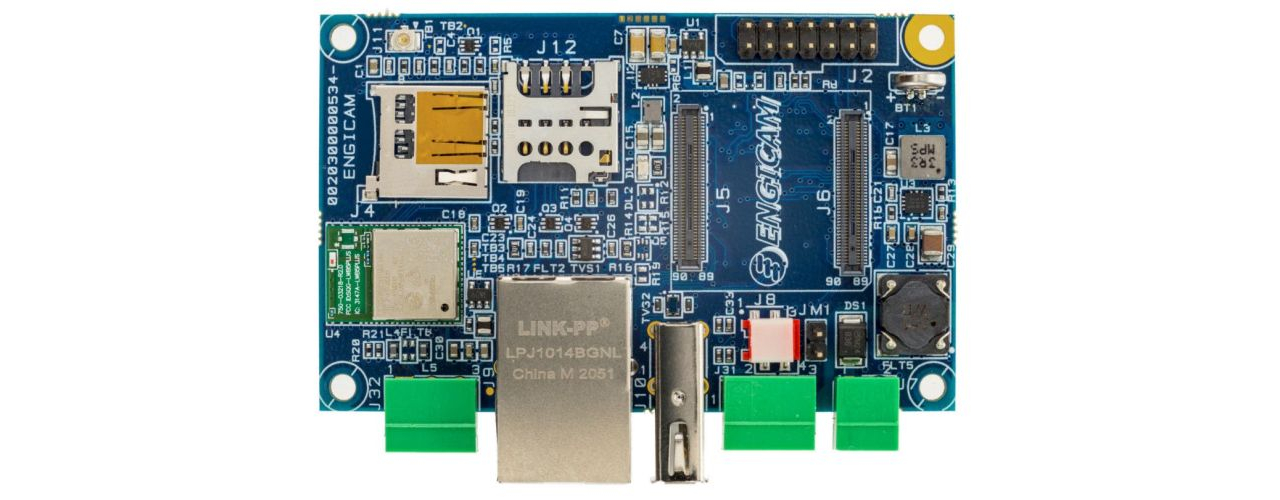

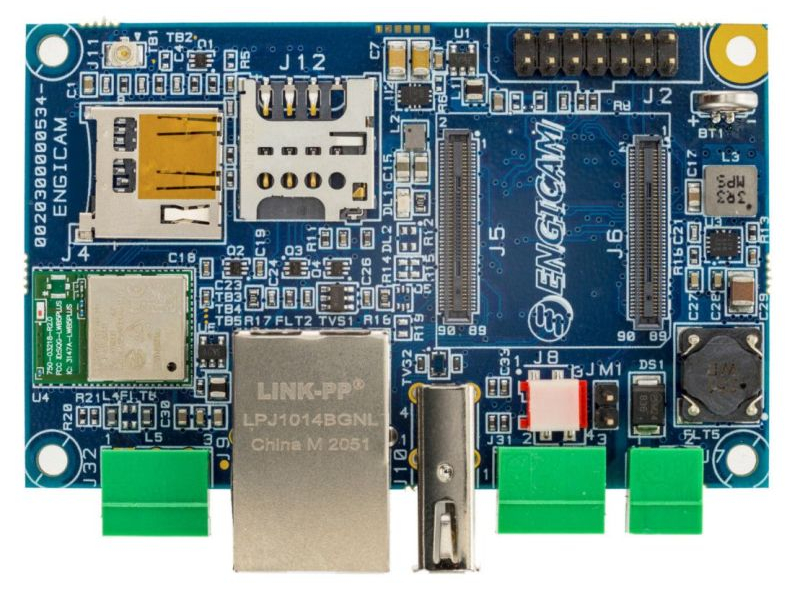

A new general-purpose miniature carrier board based on MicroGEA modules. The MicroDev provides global LTE with a Sim connector and WiFi + BT LWB5+.

Operating Systems

Linux
  • MicroGEA Module compliant
  • Industrial temperature range
  • Wide 7 to 40 Vdc single power supply
  • 1 x 10/100 Ethernet interface
  • 1 x microSD
  • 1 x USB Type A
  • 1 x RS485
  • 1 x RS232
  • 1 x RS232 for OS Console
  • Tiny Size: 80 x 50 mm
  • WiFi + BT LWB5+
  • Global LTE with sim connector

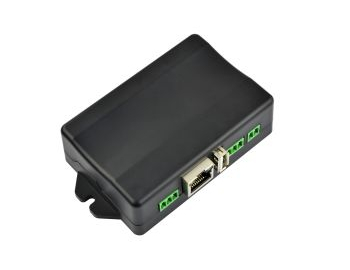

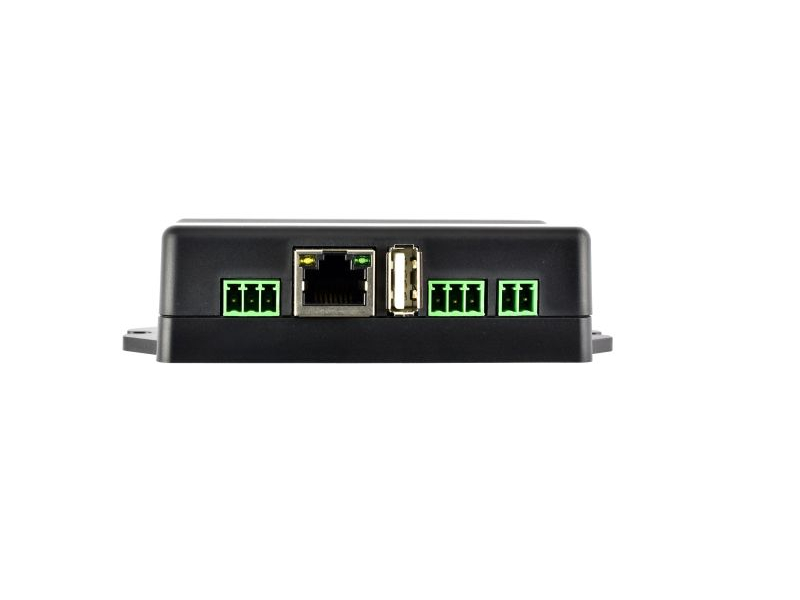

  • Plastic box enclosure



Certification and    in progress

Accessories

Hardware manual

  • MicroDev_3.0_carrier_USR_Manual_1.0.2.pdf - 3.52M (please login to download)

3D

  • This content is available for authorized users only. Please login.
  • No related products available for this module at the moment. For further information, please contact us
