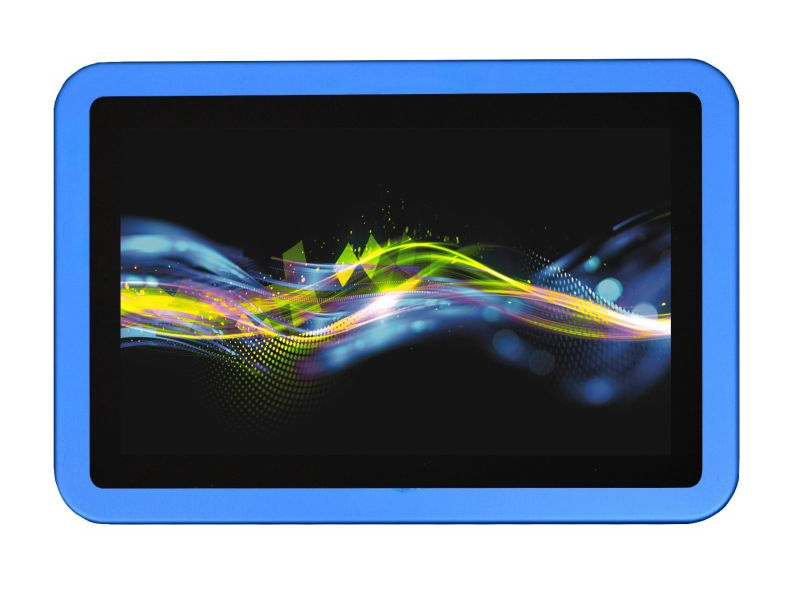

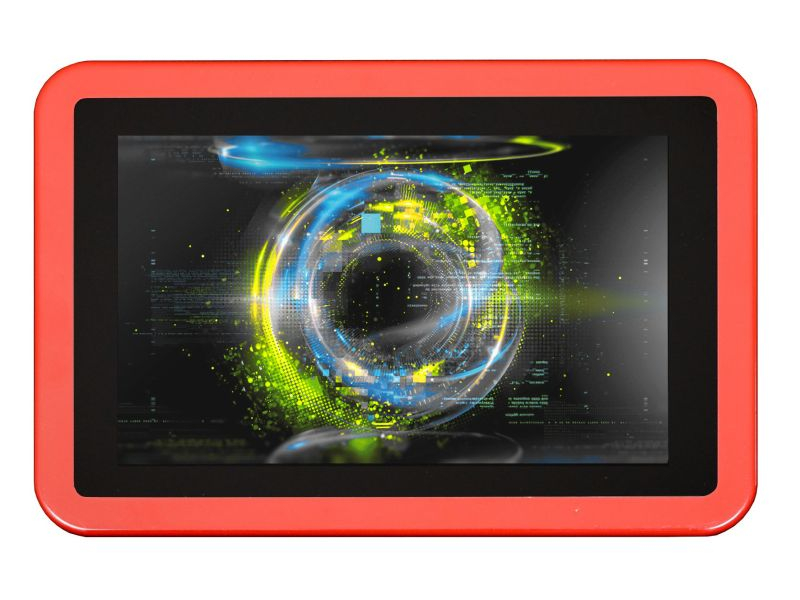

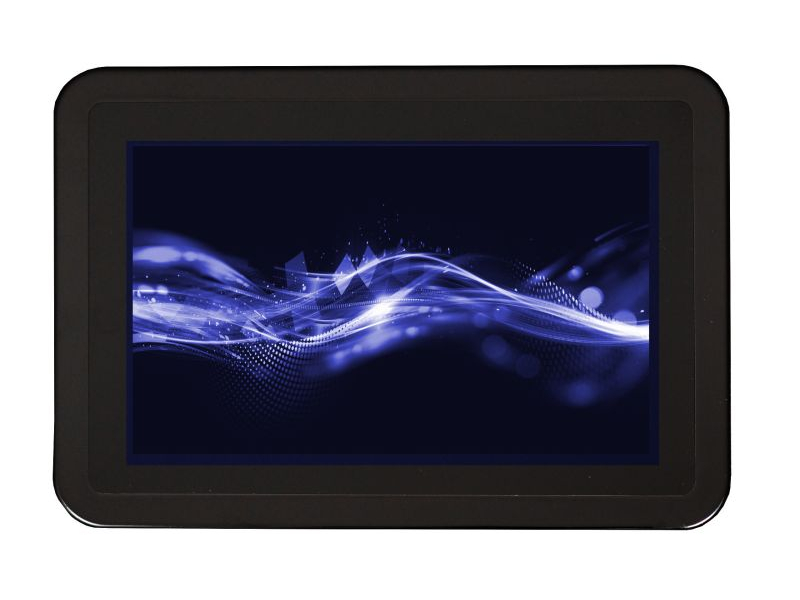

Capacitive touch 7" open frame standard EDIMM 2.0, with available different colour covers

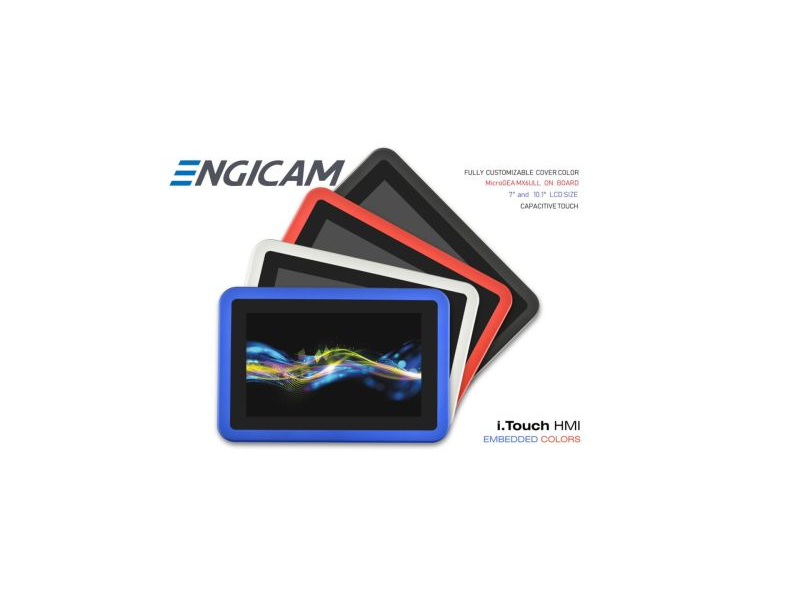

Based on  SOM series, this open frame provides a capacitive multi-touch panel and a wide variety of connectivity interfaces. The Engicam Linux SDK allows a really ready to use way to develop a user-friendly graphic user interface. The touch panel system is very easy to be integrated into the final housing also due to frames available in different colours.

Operating Systems

Linux

Development Systems

Yocto
  • TFT 7" 1024x600 resolution
  •  CPU modules compliant
  • Industrial temperature range
  • Wide 15 to 30 Vdc single power supply
  • 1x Ethernet 10/100
  • WiFi + BT
  • 1x microSD
  • 1x audio output
  • 1x USB Type A
  • 1x USB OTG device
  • 1x CAN bus
  • 1x RS485
  • 1x RS232
  • 1x RS232 for OS Console
  • 1x expansion connector (I2C, SDIO or SPI, up to 10 GPIO) 2 x USB (Option)
  • 1x General purpose LCD connector: 1x 18 or 24 bit single channel LVDS,  1x USB, 1 x I2C for CTP i/f,  1x PWM for backlight control,  Power supply for LCD (+3V3, +5V, 12V)
  • 1x LCD connector to drive dual channel displays (Option)
Operative System
Operative System : Linux
Development System
Development System : Yocto
  • Openframei.Touch_EDIMM_7_USR_Manual_1.0.0.pdf - 6.12M (please login to download)
  • PCN_2108-02.pdf - 127.08K (please login to download)
