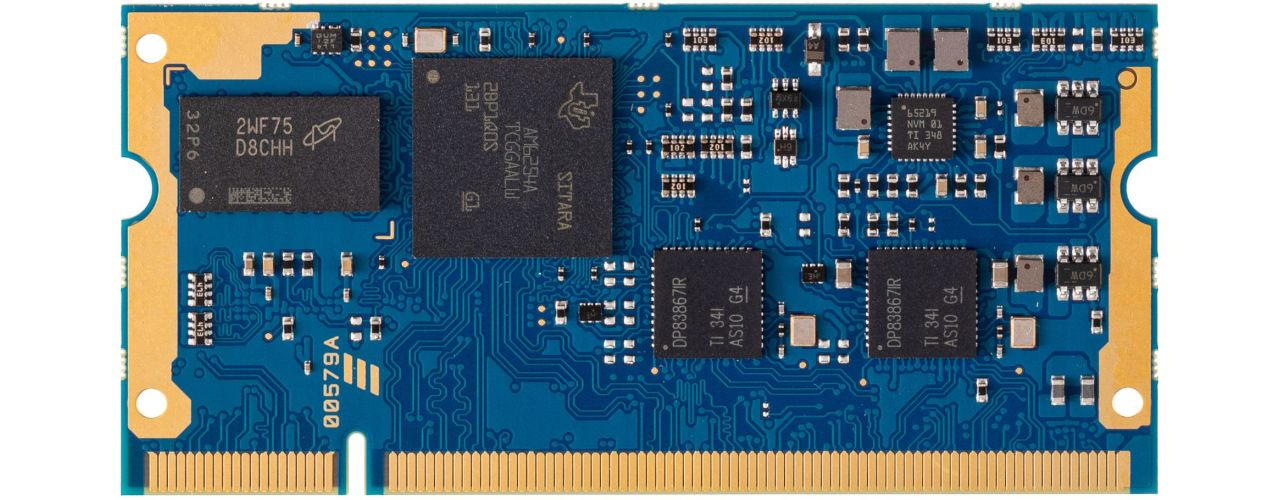

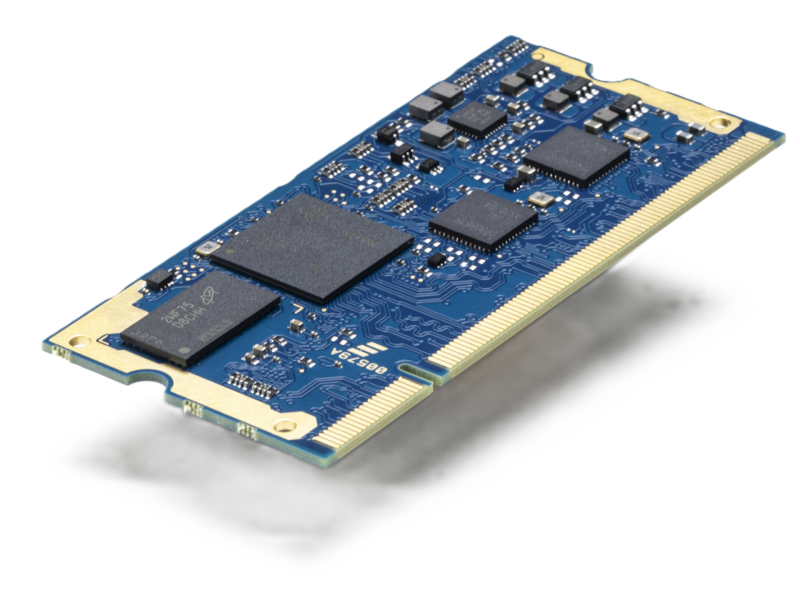

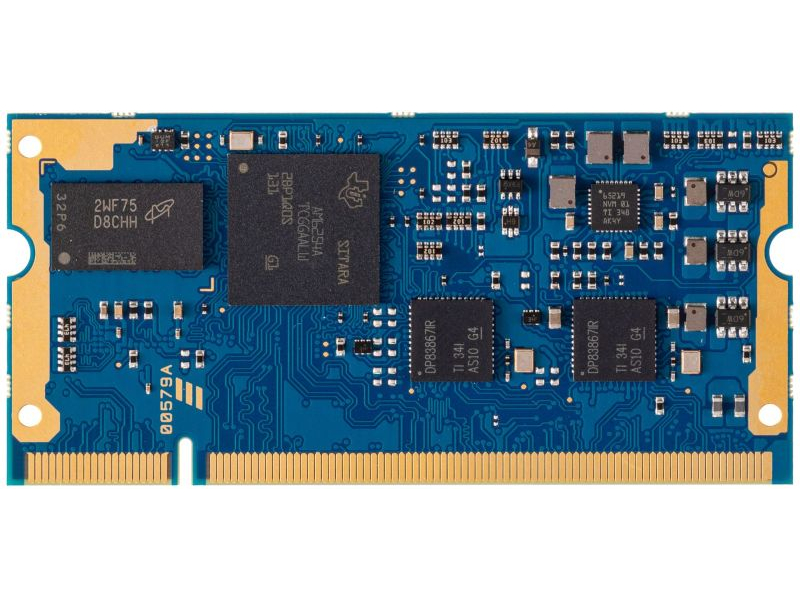

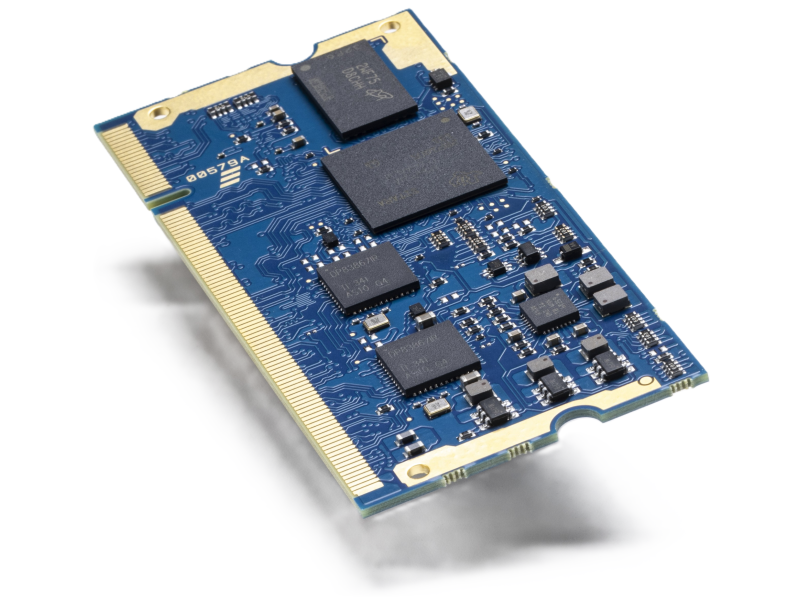

NEW i.Core AM62x

The new i.Core Am62x is based on the newest TI®’s AM62 processor and is equipped with Arm® Cortex®-A53 @ up to 1.4 GHz processor and Cortex M4F @ up to 400MHz. The low-cost AM62x SitaraTM features display support and 3D graphics acceleration. The extensive set of peripherals and optimized power architecture create a module well-suited for a broad range of industrial and automotive applications.

CPU

  • TI® AM62x Sitara
  • Manufacturer: Texas Instruments
  • GPU

Cores

  • ARM
  • Up to Quad 64-bit Arm® Cortex®-A53 microprocessor subsystem up to 1.4 GHz and Single-core Cortex®-M4F MCU @ 400 MHz.
  • 1, 2, 4 cores

Memory

  • DDR4@1600MTs
  • 8GB up to 16GB

Graphics

  • 3D GPU, OpenGL ES 3.1 and Vulkan 1.2

Video Interfaces

  • LVDS

Mass Storage

  • Starting from 8GB eMMC drive soldered on-board
  • EMMC

Networking

  • 2x 1Gb Ethernet

USB

  • 2x USB2

PCIe

  • NO

Audio

  • I2S interface

Peripheral Interfaces

  • 3x UART (Up to 8)
    1x MCU UART (Up to 2)
    3x I2C
    2x SPI (Up to 3)
    JTAG
    1x MCAN
    1x MCU CAN (Up to 2)
    2x SDIO
    GPIOs
    4-lane MIPI-CSI

Power Supply

  • single 5V

Operating System

  • Linux
  • Android

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • EDIMM 2.0
  • 67.6 x 32 mm

Product availability

  • 2033
